UV aging tester testing equipment
The structure of the test chamber is made of corrosion-resistant metal materials, including 8 fluorescent ultraviolet lamps, a water tray, a test sample holder, and temperature and time control systems and indicators.
2. The lamp power is 40W and the lamp length is 1200mm. The range of the uniform working area of the test box is 900 × 210mm.
3. The lights are installed in four rows, divided into two rows. The tubes of each row of lights are installed in parallel, and the center distance of the lights is 70mm.
4. The test sample is fixedly installed at a position 50mm away from the surface of the lamp surface. The test sample and its bracket form the inner wall of the box, and their backs are exposed to cooling air at room temperature due to the temperature difference between the test sample and the air inside the box. To create stable condensation conditions on the surface of the test sample during the condensation stage, the test chamber should generate natural air convection through the outer wall of the chamber and the channel of the test sample at the bottom.
5. Water vapor is generated by a water tray located at the bottom of the heating box, with a water depth not exceeding 25mm, and equipped with an automatic water supply controller. The water tray should be regularly cleaned to prevent the formation of scale.
6. The temperature of the test chamber is measured by a sensor fixed on a black aluminum plate (blackboard) with a width of 75mm, height of 100mm, and thickness of 2.5mm. The blackboard should be placed in the central area of the exposure test, and the measurement range of the thermometer is 30-80 ℃ with a tolerance of ± 1 ℃. The control of lighting and condensation stages should be carried out separately, and the condensation stage is controlled by the heating water temperature.
7. The test chamber should be placed in a test room with a temperature of 15-35 ℃, 300mm away from the wall, and should prevent the influence of other heat sources. The air in the test room should not circulate strongly to avoid affecting the lighting and condensation conditions.
Dear customer:
Hello, our company is a high-quality development team with strong technical strength, providing high-quality products, complete solutions, and excellent technical services to our customers. The main products include walk-in constant temperature and humidity testing chambers, UV accelerated aging testing machines, rapid temperature change testing chambers, walk-in environmental testing chambers, UV aging testers, constant temperature and humidity chambers, etc. Our company adheres to the principle of building a business with integrity, maintaining quality, and striving for progress. With a more determined pace, we continuously climb new heights and contribute to the national automation industry. We welcome new and old customers to confidently choose the products they like. We will serve you wholeheartedly!

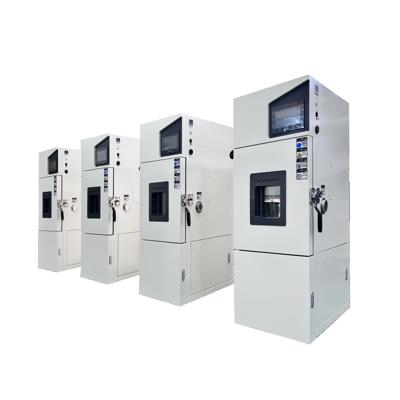

Structural characteristics of temperature and humidity control box
The full name of the temperature and humidity control chamber is "Constant Temperature and Humidity Test Chamber", which is an essential testing equipment in aviation, automotive, home appliances, scientific research and other fields. It is used to test and determine the parameters and performance of electrical, electronic and other products and materials after high temperature, low temperature, humidity and heat or constant temperature environment changes. It can be mainly divided into "desktop" and "vertical" according to testing requirements and standards, with the difference being the temperature and humidity that can be achieved. The vertical type can be used for low temperature and drying below room temperature, while the desktop type can only be used for temperature and high humidity above room temperature.
Suitable for various small electrical appliances, instruments, materials, and components for wet heat testing, it is also suitable for conducting aging tests. This test chamber adopts the most reasonable structure and stable and reliable control method currently available, making it aesthetically pleasing, easy to operate, safe, and with high precision in temperature and humidity control. It is an ideal equipment for conducting constant temperature and humidity tests.
1) The test box body is in the form of an integral structure, with the refrigeration system located at the lower rear of the box and the control system located at the upper part of the test box.
(2) Inside the air duct interlayer at one end of the studio, there are devices such as heaters, refrigeration evaporators, and fan blades distributed; On the left side of the test box, there is a Ø 50 cable hole, and the test box is a single door (stainless steel embedded door handle)
(3) The double-layer high temperature and anti-aging silicone rubber seal can effectively ensure the temperature loss of the test chamber
(4) There are observation windows, frost prevention devices, and switchable lighting fixtures on the box door. The observation window adopts multi-layer hollow tempered glass, and the inner adhesive sheet conductive film is heated and defrosted. The lighting fixtures use imported brand Philips lamps, which can effectively observe the experimental changes in the studio from all angles.
Dear customer:
Hello, our company is a high-quality development team with strong technical strength, providing high-quality products, complete solutions, and excellent technical services to our customers. The main products include walk-in constant temperature and humidity testing chambers, UV accelerated aging testing machines, rapid temperature change testing chambers, walk-in environmental testing chambers, UV aging testers, constant temperature and humidity chambers, etc. Our company adheres to the principle of building a business with integrity, maintaining quality, and striving for progress. With a more determined pace, we continuously climb new heights and contribute to the national automation industry. We welcome new and old customers to confidently choose the products they like. We will serve you wholeheartedly!
UV accelerated aging testing machine with humid condensation environment and water spray system
In many outdoor environments, materials can be kept moist for up to 12 hours per day. Research has shown that the main factor causing outdoor humidity is dew, not rainwater. GUV simulates outdoor moisture erosion through its unique condensation function. In the condensation cycle during the experiment, the water in the reservoir at the bottom of the testing chamber is heated to generate hot steam, which fills the entire testing chamber. The hot steam maintains the relative humidity in the testing chamber at 100% and maintains a relatively high temperature. The sample is fixed on the side wall of the testing chamber, so that the testing surface of the sample is exposed to the ambient air inside the testing chamber. The outward side of the sample exposed to the natural environment has a cooling effect, resulting in a temperature difference between the inner and outer surfaces of the sample. The occurrence of this temperature difference causes the sample to always have liquid water generated by condensation on its testing surface throughout the entire condensation cycle.
Due to outdoor exposure to moisture for up to ten hours a day, a typical condensation cycle typically lasts for several hours. GUV provides two methods for simulating humidity. The most commonly used method is condensation, which is the best way to simulate outdoor moisture erosion. All GUV models are capable of running condensation cycles. Because some application conditions also require the use of water spray to achieve practical results, some GUV models can operate both condensation cycle and water spray cycle.
For certain applications, water spray can better simulate the environmental conditions of final use. Water spraying is very effective in simulating thermal shock or mechanical erosion caused by temperature fluctuations and rainwater erosion. Under certain practical application conditions, such as sunlight, when the accumulated heat rapidly dissipates due to sudden showers, the temperature of the material will undergo a sharp change, resulting in thermal shock, which is a test for many materials. GUV's water spray can simulate thermal shock and/or stress corrosion. The spray system has 12 nozzles, with 6 on each side of the testing room; The sprinkler system can run for a few minutes and then shut down. This short-term water spray can quickly cool the sample and create conditions for thermal shock.
Dear customer:
Hello, our company is a high-quality development team with strong technical strength, providing high-quality products, complete solutions, and excellent technical services to our customers. The main products include walk-in constant temperature and humidity testing chambers, UV accelerated aging testing machines, rapid temperature change testing chambers, walk-in environmental testing chambers, UV aging testers, constant temperature and humidity chambers, etc. Our company adheres to the principle of building a business with integrity, maintaining quality, and striving for progress. With a more determined pace, we continuously climb new heights and contribute to the national automation industry. We welcome new and old customers to confidently choose the products they like. We will serve you wholeheartedly!

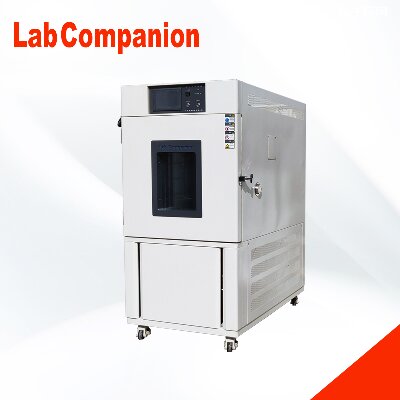

Structural characteristics of temperature and humidity control test chamber
Suitable for various small electrical appliances, instruments, materials, and components for wet heat testing, it is also suitable for conducting aging tests. This test chamber adopts the most reasonable structure and stable and reliable control method currently available, making it aesthetically pleasing, easy to operate, safe, and with high precision in temperature and humidity control. It is an ideal equipment for conducting constant temperature and humidity tests.
(1) The test box body is in the form of an integral structure, with the refrigeration system located at the lower rear of the box and the control system located at the upper part of the test box.
(2) Inside the air duct interlayer at one end of the studio, there are devices such as heaters, refrigeration evaporators, and fan blades distributed; On the left side of the test box, there is a Ø 50 cable hole, and the test box is a single door (stainless steel embedded door handle)
(3) The double-layer high temperature and anti-aging silicone rubber seal can effectively ensure the temperature loss of the test chamber
(4) There are observation windows, frost prevention devices, and switchable lighting fixtures on the box door. The observation window adopts multi-layer hollow tempered glass, and the inner adhesive sheet conductive film is heated and defrosted. The lighting fixtures adopt imported brand Philips lamps, which can effectively observe the experimental changes in the studio from all angles.
The refrigeration cycle of the temperature and humidity control box adopts the reverse Carnot cycle, which consists of two isothermal processes and two adiabatic processes. The process is as follows: the refrigerant is adiabatically compressed to a higher pressure by the compressor, and the work consumed increases the exhaust temperature. Then, the refrigerant exchanges heat with the surrounding medium through the condenser and transfers heat to the surrounding medium. After the refrigerant undergoes adiabatic expansion through the shut-off valve, the temperature of the refrigerant decreases. Finally, the refrigerant absorbs heat from the object at a higher temperature through the evaporator, causing the temperature of the cooled object to decrease. This cycle repeats itself to achieve the goal of cooling down.
The refrigeration system design of this test chamber applies energy regulation technology, which can ensure the normal operation of the refrigeration unit and effectively adjust the energy consumption and refrigeration capacity of the refrigeration system, so as to maintain the refrigeration system in the optimal operating state. By using Balanced Temperature Control (BTC), the control system automatically calculates the output of the heater based on the set temperature point through PID calculation when the refrigeration system is working continuously, ultimately achieving a dynamic balance.
Dear customer:
Hello, our company is a high-quality development team with strong technical strength, providing high-quality products, complete solutions, and excellent technical services to our customers. The main products include walk-in constant temperature and humidity testing chambers, UV accelerated aging testing machines, rapid temperature change testing chambers, walk-in environmental testing chambers, UV aging testers, constant temperature and humidity chambers, etc. Our company adheres to the principle of building a business with integrity, maintaining quality, and striving for progress. With a more determined pace, we continuously climb new heights and contribute to the national automation industry. We welcome new and old customers to confidently choose the products they like. We will serve you wholeheartedly!
Maintenance of refrigeration compressor for constant temperature and humidity test chamber, cold and hot shock test chamber
Article summary: For environmental monitoring equipment, the only way to maintain long-term and stable use is to pay attention to maintenance in all aspects. Here, we will introduce the maintenance of the compressor, which is an important component of the constant temperature and humidity test chamber and the cold and hot shock test chamber
Detailed content:
Maintenance plan for refrigeration compressor:
As the core component of the refrigeration system in the constant temperature and humidity test chamber, the maintenance of the compressor is essential. Guangdong Hongzhan Technology Co., Ltd. introduces the daily maintenance steps and precautions for the compressor in the constant temperature and humidity test chamber and the cold and hot shock test chamber
1、 Carefully check the sound of the cylinders and moving parts at all levels to determine if their working condition is normal. If any abnormal sound is found, immediately stop the machine for inspection;
2、 Pay attention to whether the indicated values of pressure gauges at all levels, pressure gauges on gas storage tanks and coolers, and lubricating oil pressure gauges are within the specified range;
3、 Check if the temperature and flow rate of the cooling water are normal;
4、 Check the supply of lubricating oil and the lubrication system of the moving mechanism (some compressors are equipped with organic glass baffles on the side of the cross head guide rail of the machine body),
You can directly see the movement of the crosshead and the supply of lubricating oil; The cylinder and packing can be inspected for oil discharge using a one-way valve, which can check if the oil injector is inserted into the cylinder
Oil injection situation;
5、 Observe whether the oil level in the body oil tank and the lubricating oil in the oil injector are below the scale line. If they are low, they should be refilled in a timely manner (if using a dipstick, stop and check);
6、 Check the temperature of the intake and exhaust valve covers at the cross guide rail of the crankcase with your hand to see if it is normal;
7、 Pay attention to the temperature rise of the motor, bearing temperature, and whether the readings on the voltmeter and ammeter are normal. The current should not exceed the rated current of the motor. If it exceeds the rated current, the cause should be identified or the machine should be stopped for inspection;
8、 Regularly check whether there are any debris or conductive objects inside the motor, whether the coil is damaged, and whether there is friction between the stator and rotor, otherwise the motor will burn out after starting;
9、 If it is a water-cooled compressor and water cannot be immediately supplied after the water is cut off, it is necessary to avoid cylinder cracking due to uneven heating and cooling. After parking in winter, the cooling water should be drained to prevent freezing and cracking of the cylinder and other parts;
10、 Check whether the compressor vibrates and whether the foundation screws are loose or detached;
11、 Check whether the pressure regulator or load regulator, safety valve, etc. are sensitive;
12、 Pay attention to the hygiene of the compressor, its associated equipment, and the environment;
13、 Gas storage tanks, coolers, and oil-water separators should regularly release oil and water;
14、 The lubricating machine used should be filtered by sedimentation. Differentiate the use of compressor oil between winter and summer
EC-85EXT, Superior constant temperature bath (800L)Specifications
Project
Type
Series
ＥＸＴ
Function
Temperature occurs in a way
Dry ball method
Temperature range
-70 ～ + 150 ℃
Temperature variation amplitude
Below the + 100℃
± 0.3 ℃
Above the + 101℃
± 0.5 ℃
Temperature distribution
Below the + 100℃
± 0. 7 ℃
Above the + 101℃
± 1.0 ℃
The temperature drops the time
＋125 ～－55 ℃
Within 36 minutes (10℃ / minute mean temperature change)
Temperature rise time
－55 ～＋125 ℃
Within 36 minutes (10℃ / minute mean temperature change)
The internal volume of the uterus was tested
800Ｌ
Test room inch method (width, depth and height)
1000mm × 800mm × 1000mm
Product inch method (width, depth and height)
1470mm × 2240mm × 2000mm
Make the material
External outfit
Test room control panel
machine room
Cold interductile steel plate is dark gray
Inside
Stainless steel plate (SUS304,2B polished)
Broken heat material
Test room
Hard synthetic resin
glass wool
door
Hard synthetic resin foam cotton, glass cotton
Project
Type
Series
ＥＸＴ
Cooling dehumidifying device
Cooling-down method
Mechanical section shrinkage and freezing mode and binary freezing mode
Cooling medium
Single segment side
R404A
Binary high temperature / low temperature side
R404A ／ R23
Cooling and dehumidifier
Multi-channel mixed heat sink type
The condenser
(water-cooled)
Calorifier
Form
Nickel-chromium heat-resistant alloy heater
Blower
Form
Stir fan
Controllerl
The temperature is set
-72.0 ～ +152.0 ℃
Time setting Fanny
0 ～ 999 Time 59 minutes (programmed type)0 ～ 20000 Time 59 minutes (value)
Set decomposition energy
Temperature 0.1 ℃ ，Time of 1 minute
Indicate accuracy
Temperature ± 0.8℃ (typ.), time ± 100 PPM
Vacation type
Value or program
Stage number
20-stage / 1 program
The number of procedures
The maximum number of incoming force (RAM) programs is 32 programs
The maximum number of internal ROM programs is 13 programs
Round-trip number
Maximum of 98 or unlimited
Number of round-trip repeats
Maximum 3 time
Displace the end
Pt 100Ω （ at 0 ℃ ），grade （ JIS C 1604-1997 ）
Control action
When splitting the PID action
Endovirus function
Early delivery function, standby function, setting value maintenance function, power outage protection function,
Power action selection function, maintenance function, transportation round-trip function,
Time delivery function, time signal output function, overrising and overcooling prevention function,
Abnormal representation function, external alarm output function, setting paradigm representation function,
Transport type selection function, the calculation time represents the function, the slot lamp lamp function
Project
Type
Series
ＥＸＴ
Control panel
Equipment machine
LCD operating panel (type contact panel),
Represents lamp (power, transport, abnormal), test power supply terminal, external alarm terminal,
Time signal output terminal, power cord connector
Protective device
Refrigerating cycle
Overload protection device, high blocking device
Calorifier
Temperature over-rise protection device, temperature fuse
Blower
Overload protection device
Control panel
Leakage breaker for power supply, fuse (heater,),
Fuse (for operating loop), temperature rise protection device (for testing),
Temperature rise overcooling prevention device (test material, in microcomputer)
Pay belongs to the product
Test material shed shed by * 8
Stainless steel shed (2), shed receiving (4)
Fuse
Operating loop Protection Fuses (2)
Operating specification
（1 ）
Else
Bolus (Cable hole: 1)
Equipment products
Adventitia
Hard borosilicate glass270mm× 190mm
１
Cable hole
Bore size 50mm
１
The trough inside the lamp
AC100V 15W White hot ball
１
Wheel
6
Horizontal adjustment
6
Electrovirus characteristics
Source ＊ 5.1
AC Three-phase 380V 50Hz
Maximum load current
60 A
Capacity of the leakage breaker for the power supply
80A
Sensory current 30mA
Power distribution thickness
60mm２
Rubber insulation hose
Coarseness of grounding wire
14mm２
Cooling water ＊ 5.3
Water yield
5000 L /h （When the cooling water inlet temperature is 32℃）
Water pressure
0.1 ～ 0.5MPa
Side pipe diameter of the device
PT1 1/4
Tubing
drain-pipe ＊ 5.4
PT1/2
Product weight
700kg

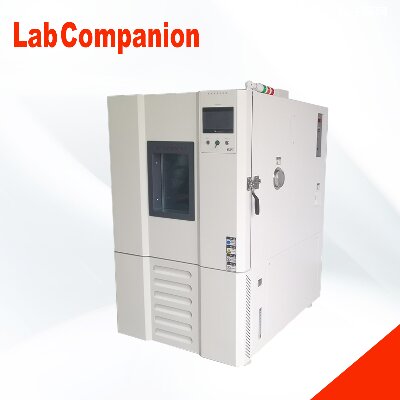

EC-85MHPM-W, High load corresponding constant temperature and humidity tank (800L)
Project
Type
Series
ＭＨＰＭ－Ｗ
Function
Temperature and humidity mode
The way of wet ball
Temperature range
-40 ～ + 100 ℃
Humidity range
20 ～ 98%RH
（According to the anaphase 3 items）
Changes in temperature and humidity
± 0.3 ℃ ／ ±2.5%RH
Temperature and humidity distribution
± 0.5 ℃ ／ ±5.0%RH
The temperature drops the time
+20 ～ -40 ℃
Within 75 minutes
Temperature rise time
-40 ～ + 100 ℃
Within 50 minutes
The internal volume of the uterus was tested
800 Ｌ
Test room inch method (width, depth and height)
1000mm × 800mm × 1000mm
Product inch method (width, depth and height)
1400mm × 1190mm × 1795mm
Make the material
External outfit
Test room control panel
machine room
Cold steel plate, cold steel plate beige
(Color table 2.5Y8 / 2)
Inside
Stainless steel plate (SUS304,2B polished)
Broken heat material
Test room
Hard synthetic resin
―
Door
Hard synthetic resin foam cotton, glass cotton
Project
Type
Series
ＭＨＰＭ－Ｗ
Cooling removal, wet device
Cooling-down method
Mechanical section shrinkage mode
Cooling medium
Ｒ４０４Ａ
The oneself can shrink machine
Output (number of staff)
1.5kW （１）
Cooling and dehumidifier
Multi-channel mixed heat sink type
The condenser
Multi-channel mixed radiator sink (air cooling）
Calorifier
Form
Nickel-chromium heat-resistant alloy heater
Volume
3.5kW
Humidifier
Form
Steam generation
Volume
1.8Kw×2
Blower
Form
Multi-channel mixed radiator sink (air cooling）
Motor capacity
40W
Feed water unit
The water supply cylinder Water supply method
Water quality
Pure water ＊ Automatic water supply
（"Please refer to the automatic water supply."）
Volume
Gravity type
Moisturizing disk
Gravity type
Controller
Temperature setting range
-42.0 ～ + 102.0 ℃
Humidity setting range
0 ～ 98%RH （Dry Bulb Temperature 10 ～ 85 ℃ ）
Time set range
0 ～ 999Time of 59 min（Program setting type） 0 ～ 20000 Time of 59 min（The value type）
Set decomposition energy
Temperature 0.1℃, humidity 1% RH for 1 min
Indicate accuracy
Temperature ± 0.8℃ (tp.), humidity ± 1% RH (tp.), time ± 100 PPM
Vacation type
Value or program
Stage number
20-stage / 1 program
The number of procedures
The maximum number of incoming force (RAM) programs is 32 programs
The maximum number of internal ROM programs is 13 programs
Round-trip number
98 times maximum or unlimited
Number of round-trip repeats
Maximum 3 heavy
Displace the end
Pt 100Ω （ at 0 ℃ ）， grade Ｂ（ JIS C 1604-1997 ）
Control action
When splitting the PID action
Internal function
Early delivery function, standby function, setting value maintenance function, power outage protection function,
Power action selection function, maintenance function, transportation round-trip function,
Time delivery function, time signal output function, overrising and overcooling prevention function,
Abnormal representation function, external alarm output function, setting paradigm representation function,
Transport type selection function, the calculation time represents the function, the slot lamp lamp function
Project
Type
Series
ＭＨＰＭ－Ｗ
Control panel
Equipment machine
LCD operating panel (type contact panel),
Represents lamp (power, transport, abnormal), test power supply terminal, external alarm terminal,
Time signal output terminal, power cord connector
Protective device
Refrigerating cycle
Overload protection device, high blocking device
Calorifier
Temperature over-rise protection device, temperature fuse
Humidifier
Air burning prevention device, humidifying disc water level regulator
Blower
Overload protection device
Control panel
Leakage breaker for power supply, fuse (for heater, humidifier),
Fuse (for operating loop), temperature rise protection device (for testing),
Temperature rise overcooling prevention device (test material, in microcomputer)
Offproducts (sets)
House receiver (4), house board (2), wet ball wick (15), operation manual (1)
Equipment products
Adventitia
Hard borosilicate glass 800mm× 800mm
2
Cable hole
Bore size 50mm
１
The trough inside the lamp
AC100V 15W White hot ball
２
Wheel
４
Horizontal adjustment
４
Electrovirus characteristics
Source
AC three-phase 380V 50Hz
Maximum load current
25A
Capacity of the leakage breaker for the power supply
50A
Sensory current 30mA
Power distribution thickness
14mm2
Rubber insulation hose
Coarseness of grounding wire
5.5mm2
Tubing
Drain-pipe
PT1/2
Product quality
550kg
High, low temperature, and low pressure test chamber
The low-pressure test chamber is mainly used in the fields of aviation, aerospace, information, electronics, etc., to determine the environmental adaptability and reliability tests of instruments, electrical products, materials, components, and equipment under single or simultaneous effects of low-pressure, high-temperature, and low-temperature, and to measure the electrical performance parameters of the test piece when energized.
Product principle and function
The high, low temperature, and low pressure test chamber is mainly used in aviation, aerospace, electronics, national defense, scientific research, and other industrial sectors to determine the storage and transportation reliability test of electrical and electronic products (including components, materials, and instruments) under the single or simultaneous action of high, low temperature, and low pressure. It can also be used to test the electrical performance parameters of the specimens when they are energized.
Editing of structural device for high, low temperature and low pressure test chamber
1. The outer shell is made of cold-rolled steel plate sprayed with plastic or stainless steel, and the inner shell is made of stainless steel
2. Thermal insulation layer: ultra-fine glass wool and hard polyurethane
3. Cooling method: Compression cooling method (air-cooled condenser)
4. Refrigerator: Original French Taikang fully enclosed compressor unit
5. Heater: grade stainless steel fin heater
6. Convection system: Multi blade fan, air conditioning dedicated motor
7. Temperature controller: Digital intelligent temperature controller, using PT-l00 sensor for temperature control.
8. The arrangement of electrical components in the control cabinet is reasonable, the wiring is neat, and labeled sheathed wiring terminals are used.
9. Castor solenoid valve, Danfoss expansion valve
10. High quality vacuum pump
Editing of vacuum system for high, low temperature and low pressure test chamber
1. Composition of vacuum system: The vacuum system is a component that obtains and measures the vacuum degree, consisting of a vacuum measurement system and a vacuum acquisition unit
2. Vacuum measurement: Vacuum measurement is carried out using a pressure sensor. This vacuum gauge uses pressure strain to achieve vacuum measurement, and the measurement data is a linear electrical signal that can be directly input into the device controller for display and control
environment condition
Temperature: 5 ℃~+28 ℃ (average temperature within 24 hours ≤ 28 ℃)
Relative humidity: ≤ 85% RH
Air pressure: 86kPa~106kPa
Power supply conditions: three-phase four wire+protective ground wire, voltage range: AC (380 ± 38) V
Allowable frequency fluctuation range: (50 ± 0.5) Hz
The grounding resistance of the protective grounding wire is less than 4 Ω
Technical specifications of high, low temperature and low pressure test chamber
1. Studio size:
FA-4 4 cu ft (113L)
-73°C to +177°C
N/A
FA-10 10 cu ft (283L)
-73°C to +177°C
20% to 95%RH
FA-16 16 cu ft (453L)
-73°C to +177°C
20% to 95%RH
FA-35 35 cu ft (991L)
-73°C to +177°C
20% to 95%RH
FA-64 64 cu ft (1812L)
-73°C to +177°C
20% to 95%RH
FA-96 96 cu ft (2718L)
-73°C to +177°C
20% to 95%RH
2. Temperature range: -40~150 ℃
3. Temperature deviation: ± 2 ℃
4. Temperature fluctuation: ± 0.5 ℃
5. Temperature uniformity: ≤ 2 ℃
6. Air pressure level: 4-84kpa
7. Heating rate 1.0-3.0 ℃/min
8. Cooling rate 0.7-1.0 ℃/min
9. Control system controller Siemens PLC controller, Siemens color LCD display touch screen
10. Accuracy Range Setting Accuracy: Temperature ± 0.1 ℃, Indication Accuracy: Temperature ± 0.1 ℃, Resolution: ± 0.1 ℃
11. Temperature sensor platinum resistance PT100 Ω/MV
12. Pressure Sensor Electronic Pressure Transmitter
13. Fully independent heating system, nickel chromium alloy electric heating heater
14. Refrigeration system: original French "Taikang" fully enclosed air-cooled single-stage/cascade compressor refrigeration method
15. Temperature resistant and low-noise air conditioning motor for circulation system. Multi blade centrifugal fan
Safety protection device
1. Overload and short circuit protection
2. Overtemperature protection
3. High and low pressure protection of refrigeration unit
4. Alarm sound prompt
Description of Controller Q8-902 for High Low Temperature and Low Pressure Test Chamber
Operating interface
Touchscreen Chinese interface, with digital display, real-time curve, operation selection, timing setting, program setting, alarm, parameter setting and other interfaces
Curve recording function
Can save the set values, sampling values, and sampling time of the device; The maximum storage time is 30 days. Simultaneously storing 5 real-time curves with different capacities and resolutions for 30 days, 7 days, 24 hours, 8 hours, and 1 hour, and displaying real-time data to meet different user needs
Printing function
Connectable micro printer (optional)
Program capacity
Program: Up to 30 curves
Program segment: Each program can have up to 50 segments (total program segment 1200 segments)
Program segment grouping: Each curve can be further grouped into segments according to any continuous segment, up to a maximum of 10 segments can be combined, and segments are allowed to overlap
Internal loop: The program segments within the program are looped in sections as the minimum loop unit, with a maximum of 99 loops per section
Program loop: can loop up to 99 times
Program connection: After the program runs, it can connect to the selected next program
Related standards
In addition to the content specified in this technical requirement, the equipment meets the requirements of GB/T10591 and GB/T10592.
Data and Services
1. Provide technical information such as electrical schematics, consumable parts lists, operation and maintenance manuals for the equipment, as well as technical information for the main purchased supporting parts.
2. Train 1-2 equipment operation and maintenance personnel to fully master the operation skills and general repair and maintenance skills of the equipment.
Within one year from the date of acceptance of the equipment, free after-sales service shall be provided to the buyer, and after one year, accessories of the equipment shall be provided to the buyer at cost price.

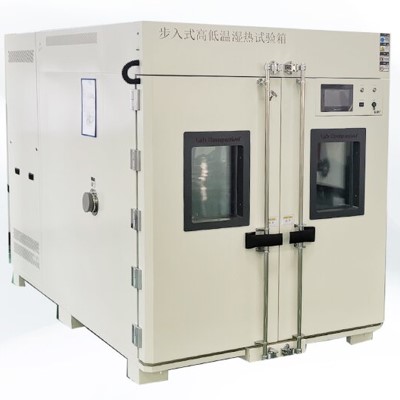

ER-135MHP-W, Step in constant temperature and humidity bath, constant temperature and humidity chamber style book (water-cooled)
Project
Type
Form
ER - 135MHP-W
Nature
ability
*1
*2
Temperature and humidity mode
The way of wet ball
Temperature and humidity model * 3
-40~+ 80 ℃ /10~95%RH
Temperature and humidity electrode amplitude
± 0.3 ℃ / ± 2.5%RH
Temperature and humidity distribution
± 0.75 ℃ / ± 5.0%RH
The temperature drops the time
+20~ -40 ℃ Within 170 minutes
Temperature rise time
+20~+ 80 ℃ Within 50 minutes
Noise value
*6
Room outside
65dB
Indoor side
79B
Statutory freezing capacity ( 50 / 60Hz )
2.57/2.81
Product shape-inch method (width, depth and height)
Please refer to the configuration diagram
Warehouse board laboratory
Bed area
13 . 0 m2
The shape of inch method
＊７
Wide
3600mm
Deep
3600mm
High
2325mm
Have oneself
Intensification method
＊７
Wide
3450mm
Deep
3450mm
High
2100mm
External materials
Ivory painted steel plate
Inside the material
Stainless steel plate (SUS304)
Broken heat material
Hard synthetic resin
The weight resistance of the board
5.9 k N/ m2 {600 kgf / m2 }
Door (width and height)
830 mm × 1800 mm Single piece open
Measurement (width and height)
190 mm × 320 mm The door
Indoor light capacity (quantity)
60W( 2 individual )
Cable hole
φ 50 1 (500mm from bed surface height, 1 side)
Controller model and shape method
Wide, deep and high
EU - 6 5MH*2 unit 1200 mm × 710 mm × 1940 mm
External outfit
Indoor
stainless steel sheet and plate (SUS304)
Outdoor
L coating color on steel plate; ivory color: color table mark 2.5Y8/2 )
Operate
Steel plate coating color; ivory color: color table mark2.5Y8/2
The oneself can shrink machine
Cooling medium
R404A
Output of freezer 1 (staff)
2.2kW(1) × 2
Cooling and dehumidifier
Multi-channel mixed heat sink type
Condenser (staff number)
Transverse fin type (2) 2
Calorifier
Form
Nickel-chromium heat-resistant alloy heater
Volume
5 . 7kW(3 φ 200V) × 2
Humidifier
Form
SUS 316L Make a surface steam type humidifier
Volume
5 . 4kW(3 φ 200V) × 2
Air supply device
Form (quantity)
Single air supply multi-blade air fan (1)
Survival outside the machine
0 Pa{ 0 mmAq}
Blowing rate
25 (m3 / min )
Back to the uterus
1100( r / min )
Motor form
VTFO-K
Motor output (pole number)
0.75kW(6) × 2
Moisturizing water supply
installation
The water supply cylinder
Water quality * 8
Electrical conductivity is below 10 μ S / cm
Volume
4L × 2
Feedwater
way
Moisturizing disk
gravity type
Wet ball Wick disc
Electromagnetic valve type
Controller
The temperature is set
-42.0 ~+ 82.0 ℃
Humidity is set
0~98% RH ( Dry Bulb Temperature 10 ℃ ~ 80 ℃ )
Time setting Fanny
0 ~ 999 Time 59 points (programmed type)0 ~ 20000 Time 59 points (value)
Set decomposition energy
Temperature 0.1 ℃ , humidity 1% RH , time 1 minute
Indicate accuracy
Temperature ± 0.8 ℃ ( typ. ), humidity ± 1% RH ( typ. ), time ± 100 PPM
Vacation type
Value or program
Stage number
20 stage / 1 form
The number of procedures
Number of incoming force (RAM) programs, maximum 32 programs / internal ROM programs, maximum 13 programs
Round-trip number
Maximum of 98 or unlimited
Number of round-trip repeats
Maximum 3 time
Displace the end
JP t 100Ω (a t 0 ℃ ), grade B(JIS C1604-1997 )
control action
When splitting the PID action
Endovirus function
Early delivery function, standby function, setting value maintenance function, power outage protection function,
Power action selection function, maintenance function, transportation round-trip function,
Time delivery function, time signal output function, overrising and overcooling prevention function,
Abnormal representation function, external alarm output function, setting paradigm representation function,
Transport type selection function, the calculation time represents the function, the slot lamp lamp function
Project
Type
Form
ER - 55MHP-W
Temperature control machine
Control panel
Equipment machine
Color LCD operating panel (force contact mode),
Represents the lamp (power supply, transport, abnormal), test material power supply system royal terminal,
External alarm terminal, time signal output terminal, power cord connector,
Protective device
Warehouse plate test uterine cavity
Test material with
Temperature rise overcooling prevention function (microcomputer: automatic setting)
Temperature rise ter (set: Set above 60℃)
Refrigerating cycle
Overload protection device, high blocking device
Calorifier
Temperature over-rise protection device, temperature fuse
Humidifier
Air burning prevention device (2 weight), wet plate water level regulator
Blower
Overload protection device
Control panel
Leakage breaker for power supply, fuse (for heater, humidifier),
Fuse (for operating loop), fan reverse prevention relay
In addition to control
Frost system
Defrosting method * 5
Stop cycling defrosting (freezer transport stop),
Heat up defrosting
Cold control
But the system
water
Concondensation control mode (quantity)
Water-making valve for cooling water (2) 2
Repeat
measure
Therstat (operated)
300kg × 2
Electricity
Endyceps sinensis
particular
nature
Source
Communication three phases 380V 50Hz
Maximum load current
45A × 2
The power supply uses a leakage breaker
60A ( Sensory current 30mA) × 2
Power distribution
Rubber insulation hose 22m m2 × 2
Coarseness of grounding wire
5.5m m2 × 2
cold
step back
water
*9
Water yield；the yield of water
40L / min ( inlet water temperature 32 ℃ ) × 2
Water pressure
0.1~0.5M Pa{ 1.0~5.0 kgf / cm2 }
water temperature
18~ 32 ℃
Pipe-inch method
Inlet / exit
PT 1 parent seat / PT 1 parent seat
Humidifying water supply pipe distribution inch method * 8
PT 1 / 2 parent seat
arrange
water
Pipe-inch method
drain-pipe
PT 1 / 2 parent seat
Its
Product products (staff)
reduce pressure(1) * 8
Wet ball wick (15)
Take instructions (1)

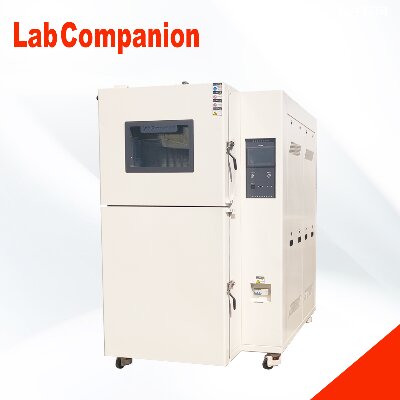

Large volume vertical temperature shock test chamber
By alternating the movement of the test specimen between the cold chamber and the hot chamber, the temperature shock test chamber can apply a very, very fast rate of temperature change to the test specimen, which can expose possible defects and also be used to define the service life of the test specimen.
The temperature shock test chamber of Lab Companion TS-2 model is mainly used for heavy loads. Due to its compact structure and small footprint, it is particularly recommended for use in production lines.
Lab Companion has a research institution specializing in the development of environmental testing equipment, with mature environmental testing research methods and laboratories. It has gathered a group of excellent talents and well-known experts in the industry, and a strong R&D team leads the development direction of domestic environmental testing technology. Currently, the company has independent intellectual property rights for environmental testing equipment, reliability testing equipment, high and low temperature test chambers, high and low temperature humidity test chambers, constant temperature and humidity test chambers, rapid temperature change test chambers, cold and hot impact test chambers, three comprehensive test chambers, high and low temperature and low pressure test chambers, solar radiation test chambers, industrial ovens, cold and hot impact test chambers, walk-in constant temperature and humidity test chambers, environmental stress screening test chambers, walk-in constant temperature and humidity test chambers, high and low temperature impact test chambers. Box, constant temperature and humidity testing machine, constant temperature and humidity testing box, solar radiation testing box, High and low temperature humidity test chamber, temperature and humidity control chamber, UV accelerated aging test machine, UV accelerated weather resistance test machine, walk-in test chamber, walk-in environmental test chamber, walk-in high and low temperature test chamber, temperature and humidity control test chamber, UV climate resistance test chamber, UV aging tester, high and low temperature low-pressure test chamber, rapid temperature cycling test chamber, walk-in constant temperature and humidity test chamber, walk-in high and low temperature humidity test chamber, precision oven, programmable constant temperature and humidity test chamber, programmable constant temperature and humidity test machine, xenon lamp aging test chamber, high and low temperature alternating humidity test chamber, constant temperature and humidity test chamber, as well as walk-in high and low temperature humidity test chamber and high wind speed rain test chamber and other climate and environmental testing equipment and customization The product is at the forefront domestically and at the international first-class level. Welcome new and old customers to contact us for inquiries. We will be dedicated to serving you!
Road LED Text Reliability Test
Environmental resistance test:
Vibration test, transportation package drop test, temperature cycle test, temperature and humidity test, impact test, waterproof test
Durability test:
High and low temperature preservation test, continuous switch operation test, continuous action test
LED display reliability test conditions finishing:
Vibration test: three-axis (XYZ) vibration, 10 minutes each, 10 ~ 35 ~ 10Hz sine wave, 300 ~ 1200 times/min, 3 minutes per cycle, vibration Fu 2mm
Vibration tightening test: vibration + temperature (-10 ~ 60℃)+ voltage + load
Drop test for transport packaging: Drop material slurry (at least 12mm thick), height depends on the purpose of use
Temperature cycle:
a. No boot test: 60℃/6 hours ← Rising and cooling for 30 minutes →-10℃/6 hours, 2cycle
b. Boot test: 60℃/4 hours ← Rising and cooling 30 minutes →0℃/6 hours, 2cycle, power supply without packaging and load
Temperature and humidity test:
No power test: 60℃/95%R.H./48 hours
Boot test: 60℃/95%R.H./24 hours/no packaging power supply load
Impact test: impact distance 3m, slope 15 degrees, six sides
Waterproof test: height 30 cm, 10 liters /min spray Angle 60 degrees, spraying position: front and back up, spraying range 1 square meter, spraying time 1 minute
Humidity test: 40℃/90%R.H./8 hours ←→25℃/65%R.H./16 hours, 10cycle)
High and low temperature preservation test: 60℃/95%R.H./72 hours →10℃/72 hours
Continuous switch action test:
Complete the switch within one second, shut down for at least three seconds, 2000 times, 45℃/80%R.H.
Continuous action test: 40℃/85%R.H./72 hours/power on
Get A Quote
IPv6 network supported
