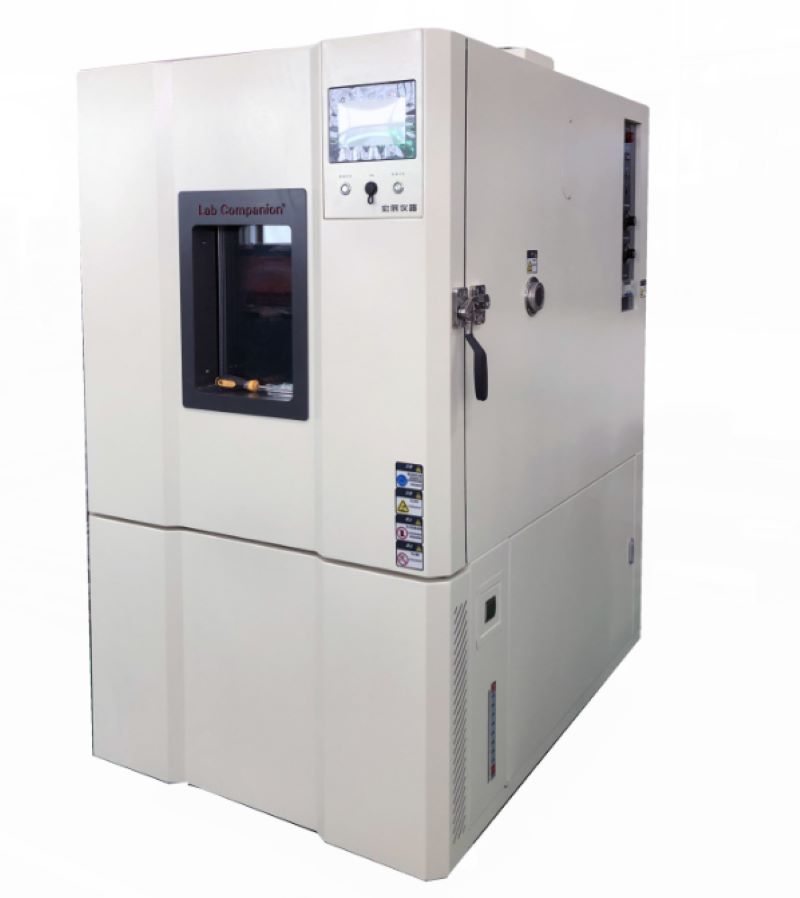

Setting and Maintenance of Constant Temperature and Humidity Test Chamber
Constant temperature and humidity test chamber is a relatively precise test equipment. In order to ensure the smooth completion of each test process, the power supply of the connected equipment must be stable at around 380V to ensure that the compressor will not be damaged. In addition, you must ensure the personal safety of the personnel who receive the power, so please understand the specific operation methods before wiring.
Constant temperature and humidity test chamber adjust or replace the connected power supply. After checking that the voltage of the power supply to be connected is correct, connect the neutral terminal to the neutral terminal in the distribution chamber. Ensure that the neutral line is connected, otherwise it may cause the equipment of the constant temperature and humidity test chamber to fail to work normally or burn electrical components.
After confirming that the neutral wire is connected, connect the 3 ∮ wire to the three terminals under the main switch of the distribution chamber in the constant temperature and humidity test chamber, and tighten the screws. We need to connect the ground wire, which is connected in the same way as other power cables, and directly to the ground terminal of the distribution chamber. In the process of connecting each power cord, everyone must ensure that the different colors of the power cord can be correctly identified to avoid connection errors and normal testing.
Maintenance of constant temperature and humidity test chamber:
1, Clean the water circulation system: clean the water filter, replace the filter, check the operation of the pump, including the operation of the water flow switch, adjust the water circulation flow and test operation.
2, Check all electrical wiring and electrical components to ensure reliable operation and good contact.
3, Replace the fresh air filter.
4, Refrigeration system cleaning: replace the refrigeration oil, clean the oil filter.
5, Check the vulnerable parts of the refrigeration system: check the sealing condition of the compressor and connecting parts, and replace all filters.
6, Refrigeration system leakage inspection: check all the connecting parts of the refrigeration system and the connecting parts of the valve plate are leaked and tightened.
7, According to the working conditions to supplement refrigerant: check whether the need to supplement the system refrigerant to ensure effective cooling capacity.
8, Comprehensive system operation: check whether the operating components are in good condition.
Display and Heating System of Temperature and Humidity Test Chamber
The display and control interface of temperature and humidity test chamber is intuitive and clear, and the light touch selection menu is simple and easy to use, and the performance is stable and reliable. Flexible program control, to bring users stable performance, flexible control, cost-effective products. The input channel and output channel can be expanded arbitrarily. It is a test equipment for aviation, automotive, home appliances, scientific research and other fields, used to test and determine the parameters and performance of electrical, electronic and other products and materials after temperature environment changes in high temperature, low temperature, alternating temperature and humidity degree or constant test.
Product features:
1, Use CNC cutting, laser opening, mass production test chamber.
2, Spray strictly use outdoor powder, powder is not recycled once use, strong adhesion without variegation.
3, The visual window frame is made of one-time opening mold, which has a strong industrial sense.
4, The instrument panel made of one-time mold is beautiful and generous. The label on the instrument panel uses PVC stickers and the back glue uses 3M glue.
5, The caster adopts the free adjustment height caster made by Qidong Baiyun Electronics original factory, non-market counterfeit products, high quality, beautiful and generous.
6, All the standard drawings of the refrigeration system are welded to ensure that the piping of each equipment is consistent, and the refrigeration performance has reached the appropriate state.
7, Wiring of all the standard drawings of the electrical system, thirteen inspection processes after the completion of wiring to ensure accurate wiring and no trouble.
8, The water system uses three cups to control the water level to ensure that the humidifier water supply is separated from the wet bulb water level. The temperature fluctuation caused by humidifier water is avoided.
Display:
1, The original brand temperature and humidity meter, 5.7-inch high-definition true color LCD touch screen.
2, Real-time monitoring (monitoring controller real-time data, signal point status, actual output status).
3, The controller can store the historical data within 600 days (when the temperature and humidity data are recorded at the same time at a recording interval of more than 1 minute in 24-hour operation), and can play back the uploaded historical data curve.
4, The exported files can be viewed on the computer or converted into EXCEL format by random gift software.
5, Instrument equipped with RS232/485 port.
6, With automatic calculation function, the temperature and humidity change conditions can be corrected immediately, so that the temperature and humidity control is more safe and stable.
Heating system:
1, The use of far infrared nickel alloy high-speed heating (2KW×2) electric heater;
2, High temperature independent system, does not affect low temperature test, high temperature test and alternating temperature and humidity;
3, Temperature and humidity control output power is calculated by microcomputer to achieve high precision and high efficiency.
Operation Precautions of Constant Temperature and Humidity Test Chamber
1, In order to avoid machine failure in the constant temperature and humidity test chamber, please provide power supply within the rated voltage range.
2, In order to prevent electric shock or misoperation and failure, do not switch on the power supply before the installation and wiring is finished.
3, This product is a non-explosion-proof product, please do not use the constant temperature and humidity machine in the environment with flammable or explosive gas.
4, Please try not to open the test chamber door during the work of the instrument, open at high temperature may cause hot injury to the operator, open at low temperature may cause freezing injury to the staff, and may cause freezing of the evaporator, affecting the refrigeration effect. If you must open, please do some protective work,
5, It is prohibited to disassemble, process, transform or repair the constant temperature and humidity machine without permission, otherwise there will be abnormal action, electric shock or fire risk.
6, The chamber's ventilation holes should be kept unobstructed to avoid failure, abnormal operation, reduced life and fire.
7. If the machine is damaged or deformed when unpacking, please do not use it.
8, The machine installation and setting should be careful not to let dust, wire, iron filings or other things into, otherwise wrong action or failure will occur.
9, Wiring must be correct, must be grounded. Non-grounding may cause electric shock, misoperation accidents, abnormal display or large measurement errors.
10, Regularly check the terminal screws and fixed frame, please do not use in the case of loose.
11, During the operation of the instrument, the power input terminal cover must be installed on the terminal board to prevent electric shock.
12, The instrument in operation, modify the setting, signal output, start, stop and other operations, should be fully considered before the safety, wrong operation will cause damage to the working equipment or failure.
13, Please use a dry cloth to wipe the instrument, do not use alcohol, gasoline or other organic solvents, do not splash water on the instrument, if the instrument is immersed in water, please stop use immediately, otherwise there is the risk of leakage, electric shock or fire.
14, The internal parts of the instrument have a certain life period, in order to continue to use the instrument safely, please carry out regular maintenance and maintenance. When scrapping this product, please treat it as industrial waste.
15, Before starting to check whether the power supply is stable.
Principles That Operating Constant Temperature and Humidity Test Chamber Should Follow
Constant temperature and humidity test chamber, also known as constant temperature and humidity test machine, programmable temperature and humidity alternating test chamber, thermostat or constant temperature and humidity chamber, can be used to test various environments and test equipment material performance, this material has heat resistance, cold resistance, dry resistance and humidity resistance. However, when using the constant temperature and humidity test chamber, the correct operation helps to obtain scientific data for the experimenter, so what principles should be followed in the operation of the constant temperature and humidity test chamber?
First, in the environmental test, the operator must be familiar with the required test sample performance, test conditions, test procedures and test technology, familiar with the technical performance of the test equipment used, and understand the structure of the equipment, especially familiar with the control operation and performance. At the same time, read the operation manual of the test equipment carefully to avoid abnormal operation of the test equipment due to operation errors, which may cause damage to the test sample and incorrect test data.
Second, in order to ensure the normal operation of the test, appropriate testing equipment should be selected according to the different conditions of the test sample, and a reasonable proportion between the temperature and humidity of the test sample and the effective volume of the laboratory should be maintained. For tests of heated test samples, the volume should not be greater than one-tenth of the effective volume of the test chamber. The volume of the unheated test sample should not exceed one-fifth of the effective volume of the test chamber.
Third, for environmental tests that need to add media to the test, it should be correctly added according to the test requirements. For example, there are certain requirements for water in temperature and humidity test chambers and the resistance should be reduced. There is a more economical and convenient form of pure water on the market. Its resistance is equivalent to distilled water.
Fourth, wet bulb gauze (wet bulb paper) has certain requirements for use in a temperature and humidity test chamber, and no gauze can be replaced, because the relative humidity reading is the difference between the root distance and temperature and humidity, and strictly speaking, it is also related to the local atmospheric pressure and wind speed at the time. The indicator value of wet-bulb temperature is related to the amount of water absorbed by the gauze and the amount of surface evaporation. These are directly related to the quality of the gauze, so the weather stipulates that the wet ball gauze must be a special "wet ball gauze" woven from linen. Otherwise, it is difficult to ensure the correctness of the wet bulb thermometer value, that is, the correctness of the humidity. In addition, the position of the wet gauze is also clearly specified. Gauze length: 100mm, tightly wrap the sensor probe, probe 25-30mm away from the humidity cup, gauze immersed in the cup to ensure the accuracy of equipment control and humidity.
Fifth, the location of the test sample should be more than 10 cm away from the wall of the chamber, and multiple samples should be placed on the same plane as far as possible. Samples should be placed without blocking air outlets and return vents, and temperature and humidity sensors should be kept at a distance. Make sure the test temperature is correct.
Operating the constant temperature and humidity test chamber in accordance with the above principles, the correct operation of the test process will greatly improve the level of test data. As long as the above principles are adhered to, it should be said that the temperature and humidity tests can be successfully performed.

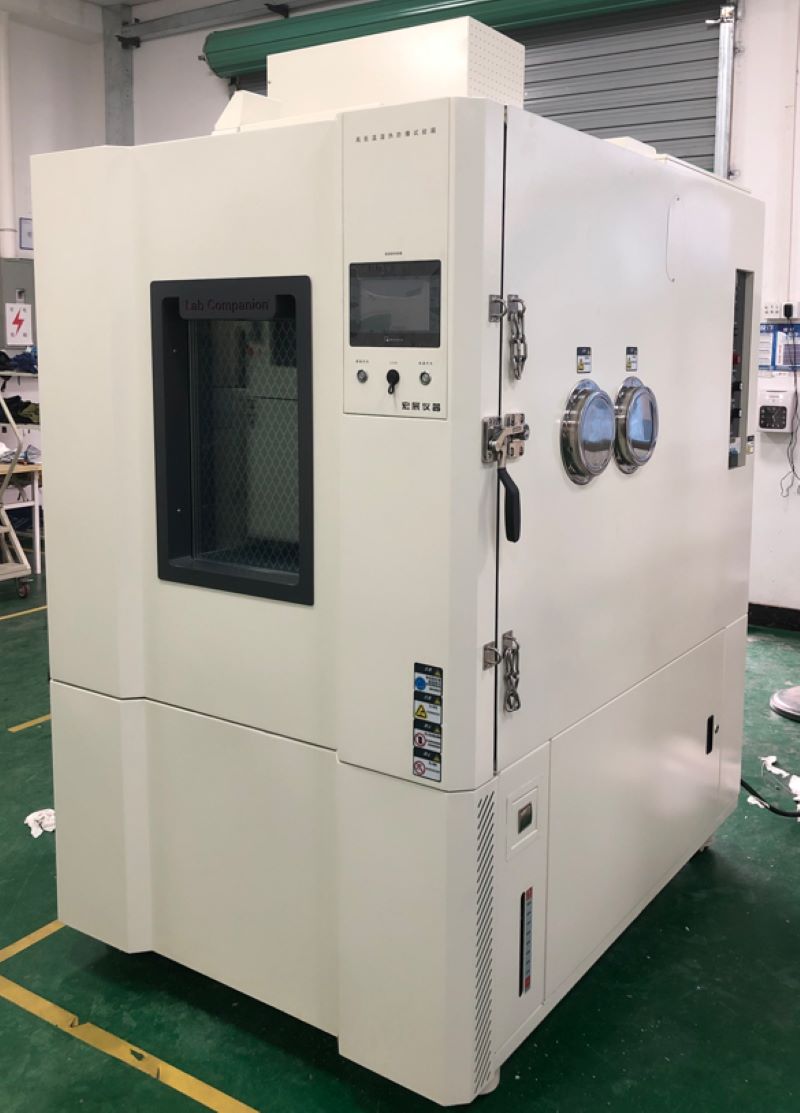

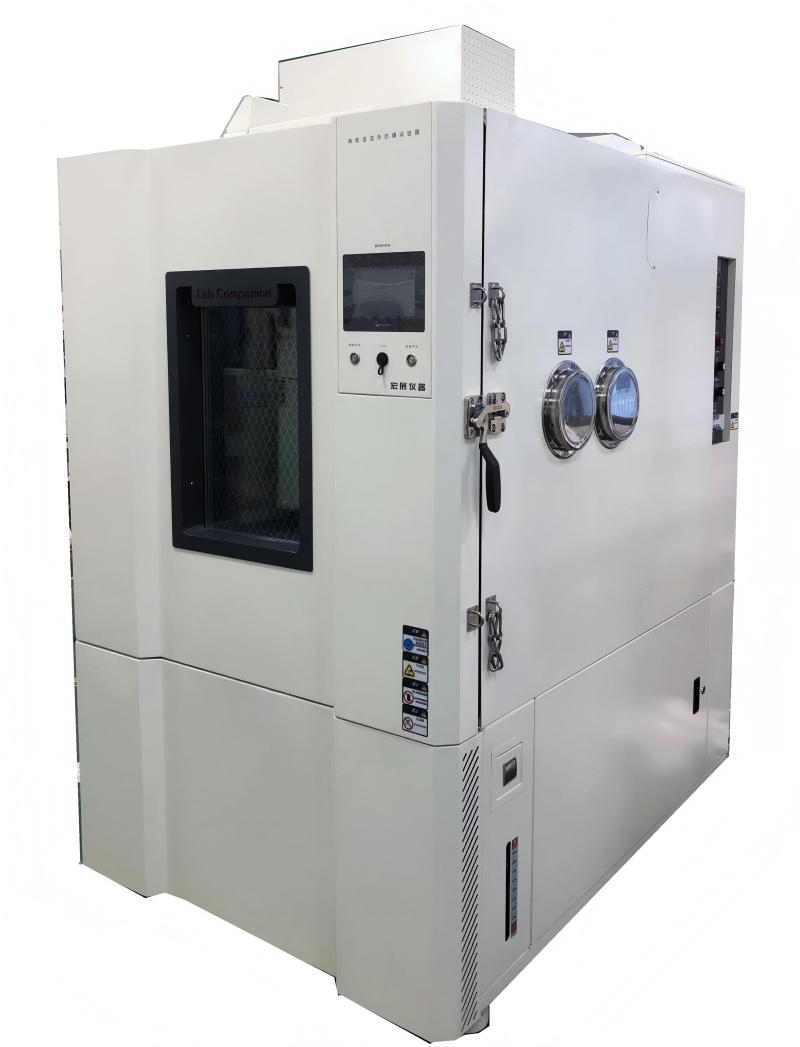

High and Low Temperature (& Humidity) Test Chamber (Battery Test Specifications)
Introduction of high and low temperature (& humidity) test chamber (battery test specifications):
High and low temperature (& humidity) test chamber (battery test specifications) mainly provides a constant temperature and high and low temperature alternating test environment for various secondary batteries and fuel cells and other new energy products in the research and development, production, inspection and other aspects of the test. For example: it can be used for lithium battery cells, modules and electric vehicle power; it can also used for lithium battery cells and modules related to energy storage industry.
Features of high and low temperature (& humidity) test chamber (battery test specifications):
Maintaining the advantages of high and low temperature (& humidity) test chamber-P series;
Adding pressure relief valve and observation window protection device to prevent sample explosion from causing injury to people;
Adding gas detection devices to detect flammable, explosive and harmful gases to provide against possible trouble;
Increasing automatic fire extinguishing device in case of fire to reduce losses;
Main parameters of high and low temperature (& humidity) test chamber (battery test specifications):
Studio size: 0.3m ~ 1.5m³(other sizes can be customized)
Temperature range: -40 ℃ ~ +150℃
Humidity range: 20% ~ 98%
Heating rate: 1℃ -5 ℃/min (full time)
Cooling rate: 1℃ -5 ℃/min (full time)
Temperature fluctuation: ±0.5
Temperature uniformity: 2℃
Temperature deviation: ±2℃
Humidity deviation: +2 ~ -3% (> 75%RH), ± 5% (≤ 75%RH)
Smart Watch Reliability Test Conditions
In today's society, elementary school students and even kindergarten children have a smart watch. So, what is a smartwatch? In the late period of sports watch promotion due to the rapid takeoff of smart phones, the smart table has no intention to provide the same PIM effect as PDA and smart phones, and appeals to the smart phone agent assistant accessories, similar to Bluetooth headphones are voice AIDS of smart phones, smart tables become information and data AIDS, providing more convenient and fast information display and operation. There are also other names such as Smart Accessory and Android Remote. Positioned as a mobile phone assistant, the idea is that "the reason why the pocket watch is extinct is because it is simply to look at the time, but also take out the pocket, about 2-3 seconds, but the watch is less than 1 second, which is more convenient than the pocket watch." And after observation, now everyone takes out a smartphone and slides open, just to confirm the message, so that about dozens of times, these confirmation even typing reply do not need, if the dozens of confirmation changed on the watch, you do not always have to pull the machine slide unlock, because this is as time-consuming as a pocket watch. Therefore, after becoming the assistant of the mobile phone, the remote control, if you do not take the mobile phone to go out, the watch is useless in addition to showing the time, and the Bluetooth headset without a mobile phone, almost scrap metal.
Combined with smart bracelet to sell better!!
Smart watch from "smaller than the PDA independent computer" to "smart phone remote control AIDS", seems to have been a more successful positioning, but this CES 2014 can be seen, combined with smart bracelet positioning is better. The smart wristband uses acceleration sensors (and gyroscopes, magnetoresistive sensors, etc.) to sense the user's running speed, step count, etc., and can even detect deep sleep and provide suggestions for exercise and sleep. When the wristband is added to the display, it can display the time and information on the mobile phone. Appeal to mobile phone information, if there is no urgent information needs, in fact, only similar to the Bluetooth headset is regarded as an option (Courier, driver need), if everyone can accept the information access speed of sliding, then the market will be limited. However, in addition to the appeal for exercise and sleep record supervision, and emphasize information tips, rather than emphasizing the remote control of the watch on the mobile phone, it is equivalent to a little sacrifice or almost no sacrifice to the end user, but it brings immediate and new application value (sports, sleep assistance), rather than completely repeating the efficacy value of the mobile phone, which further increases the market success of the smart watch. After constantly adjusting the efficacy, application and positioning, and integrating with the smart ring, we believe that we can have a higher market than in the past.
Smart watch for people and functions:
1. Smart watches for adults
Functions: Bluetooth synchronous mobile phone calls, send and receive text messages, monitor sleep, monitor heart rate, sedentary reminder, running, remote photography, music playback, video, compass and other functions, designed for fashion trend people!
2, Smart watch for the elderly
Functions: ultra-accurate GPS positioning, family calls, emergency calls, heart rate monitoring, sedentary reminders, medicine reminders and other customized functions for the elderly, providing an umbrella for the elderly's travel, bring this watch, refuse to lose the elderly!
3, Children positioning smart watch
Functions: multiple positioning, two-way call, SOS SOS, remote monitoring, intelligent anti-loss, historical track, electronic fence, pedometer, love reward and other functions, to ensure the safety of children, give children a healthy and safe growth environment!
Smart watch specification:
IEC 60086-3: Watch batteries
ISO 105-A02: Colour fastness test -A02 - Grey scale assessment for discoloration
ISO 105-A03-1993: Tests for colour fastness -A03- Grey scale assessment of dyeing
ISO 764: Horological anti-magnetic watches
ISO 1413: Horological shockproof watches
ISO 2281: Horological waterproof watches
ISO 11641-1993: Leather - tests for colour fastness - Colour fastness to perspiration
ISO 14368-3: Impact resistance test of table glass
MIL 810G: Environmental engineering considerations and laboratory testing
QB/T 1897-1993: Waterproof watch inspection
QB/T 1898-1993: Inspection of shockproof watches
QB/T 1908-1993: Key reliability test
QB/T 1919-2012: Type inspection of digital quartz watches with hands and liquid crystal
QB/T 2047-2007: Inspection of metal watchbands
GB/T 2537-2001: leather color fastness test reciprocating grinding color fastness
QB/T 2540-2002: Leather strap inspection
GB/T 6048-1985: digital quartz electronic watch
GB/T 18761-2007: electronic digital display indicator
GB/T 18828-2002: Standard for diving watches
GB/T 22778-2008: LCD digital quartz stopwatch type inspection
GB/T 22780-2008: Type inspection of LCD quartz watches
GB/T 26716-2011 idt ISO 764-2002: Inspection of anti-magnetic watches
HJ216-2005: Eco-Drive watch
Smart watch pilot project:
Reliability, time period measurement accuracy, instantaneous daily difference, operating temperature, voltage range, average temperature coefficient, voltage coefficient, moisture resistance, shock resistance, waterproof performance, battery replacement cycle, key fatigue resistance, light and weather resistance, antistatic performance Ambient temperature range: -25℃ ~ 55℃ Operating temperature: -5 ~ 50℃/80%R.H.(Requirements: each function and liquid crystal display should be complete and normal) High and low working temperature test: 50±1℃/24h→RT/1h→-5±1℃ Temperature change test conditions: (IEC60068-2) High temperature: 30, 40, 55℃ Low temperature: 5, -5, -10, -25℃ Nb residence time (including rising and cooling time) : 10min, 30min, 1hr Nb temperature variability: 3±0.6℃/min, 5±1℃/min.
Wet heat test:
1.40±1℃/85 ~ 95%R.H./24h
2.8±1℃/85 ~ 95%R.H./4h
Warehouse storage humidity test:
40℃/20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%
49℃/10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%
Each step37 hours
Air transport temperature change simulation test:
Specification: IEC60721.2 Electrical and electronic products application environmental conditions - transport national standard
Category: 2K5 (Applicable to the climatic range of unventilated and unpressurized internal transport worldwide)
Temperature range: -65℃←→85℃
RAMP: 5℃/min
Air transport temperature change simulation test:
Specification: IEC60721.6 Electrical and electronic products application environmental conditions - Marine
Category: 6K5 (subject to cold weather, installed in weather-protected but unheated parts)
Temperature range: -25℃←→40℃
RAMP: 3℃/min
Water temperature change resistance test:
5min in 40℃ water → 5min in 20℃ water, 5min in 40℃ water, water depth of 10cm
Water pressure resistance test:
Soak the watch in a container of water, apply an overpressure of 2*10^5Pa[or 20m water depth] within 1 minute, maintain 10 minutes, and then in 1 minute the pressure will be to the standard pressure of the surrounding environment
Salt water resistance test:
Put the watch under test into 30g/L sodium chloride solution at 18 ° C ~ 25 ° C for 24h. Check the case and accessories after the test should not have significant changes; Check the moving parts, especially the rotating front ring should be able to maintain normal function
Underwater reliability test:
The watch under test is immersed in 30cm±2cm of water and placed at a temperature of 18 ° C ~ 25 ° C for 50h, and all mechanical devices should still work normally. During the test, mechanical devices that need to be operated in water, such as time presetting devices and light switches, should be able to work normally; Do condensation test, the inner surface of the table glass shall not appear condensation fog, and the mechanical function should not be damaged
Thermal shock resistance test:
Immerse the watch in water of different temperatures with a depth of 30cm±2cm successively: place it in water of 40 ° C ±2 ° C for 10 minutes; Put in 5℃±2℃ water for 10 minutes; Put in water at 40 ° C ± 2 ° C for 10 minutes (the watch shall not be removed from the water and re-immersed in another water temperature for more than 1 minute). Do condensation test, the inner surface of the table glass shall not appear condensation fog, and should operate normally.
Chemical resistance test:
Citation Specifications: ASTM F 1598-95, ASTM D 1308-87, ASTM D 1308-02
Ingredients: Household chemicals (dirt, dust, oil, fumes and peanut butter, cosmetics, hand cream... Etc.)
Time: 24 hours
Corrosion resistance to artificial sweat test:
QB/T 1901.2-2006 "Gold alloy covers of shell and its accessories - Part 2 Test for purity, thickness, corrosion resistance and adhesion"
Test principle: The artificial sweat is used to contact the object under high temperature (40±2) ℃, and after a long time (not less than 24 hours), the condition of its surface is observed to determine its resistance to sweat corrosion.
Vibration test:
Acceleration (19.6m/s^2), frequency 30Hz ~ 120Hz, scanning cycle 1min
Requirements: The functions and the LCD display should be complete and normal, and the parts should not be loose and fall off
Drop test:
1m drop lithographic hardwood, once watch side, once surface glass
Requirements: Normal function after each impact, no appearance damage [broken glass, case foot bent, case component bent, case broken, button damaged]
Impact test:
Impact cone pad material: polytetrafluoroethylene, impact speed 4.43m/s, impact height 1m
Arm swing test:
2 to 10Hz
Inverter- Reliability Test
Inverter- reliability test also known as voltage converter, its function is to convert DC low voltage into AC high voltage, some electronic equipment must be driven by AC power, but we provide is DC power, at this time you must use the Inverter, direct current into alternating current to drive the electronic parts. Inverter- reliability test also known as voltage converter, its function is to convert DC low voltage into AC high voltage, some electronic equipment must be driven by AC power, but we provide is DC power, at this time you must use the Inverter, direct current into alternating current to drive the electronic parts.
Relevant test conditions:
Item
temperature
time
other
Initial test at normal temperature
25 ℃
TIME≥2 hours
-
Low temperature initial test
0 ℃ or -5 °C
TIME≥2 hours
-
High temperature initial test
60℃
TIME≥2 hours
-
High temperature and high humidity test
40℃/95%RH
240 hours
-
High temperature storage test
70℃
TIME≥96 hours or 240 hours
-
Low temperature storage test -1
-20°C
TIME≥96 hours
-
Low temperature storage test -2
-40℃
240 hours
-
High temperature and high humidity storage test
40℃/90%RH
TIME≥96 hours
-
Temperature cycle test
-20℃~ 70℃
5 cycle
Room temperature ↓-20 ℃(4 hours)↓ Room temperature (90%RH.4 hours)↓70°C(4 hours)↓ Room temperature (4 hours)
High temperature load test
55 ℃
equivalent load, 1,000 hours
-
Life test
40°C
MTBF≥40000 hours
-
on/off test (power cycle)
-
-
1min:on, 1min:off, 5,000 cycles using equivalent load
Vibration test
-
-
Acceleration 3q, frequency 10~55HZ, X, Y, Z three directions 10 minutes each, a total of 30 minutes
Impact test
-
-
Acceleration of 80g, 10 ms each time, Three times in X, Y, Z directions
Note 1: The tested module should be placed at normal (15~35° C,45~65%RH) for one hour before testing
Applicable equipment:
1. High and low temperature test chamber
2. High temperature and high humidity test chamber
3. Rapid temperature cycle test chamber
