Whatever you want! Compact and Small Rapid Temperature Change Humidity Test Chamber

Whatever you want! Compact and Small Rapid Temperature Change Humidity Test Chamber

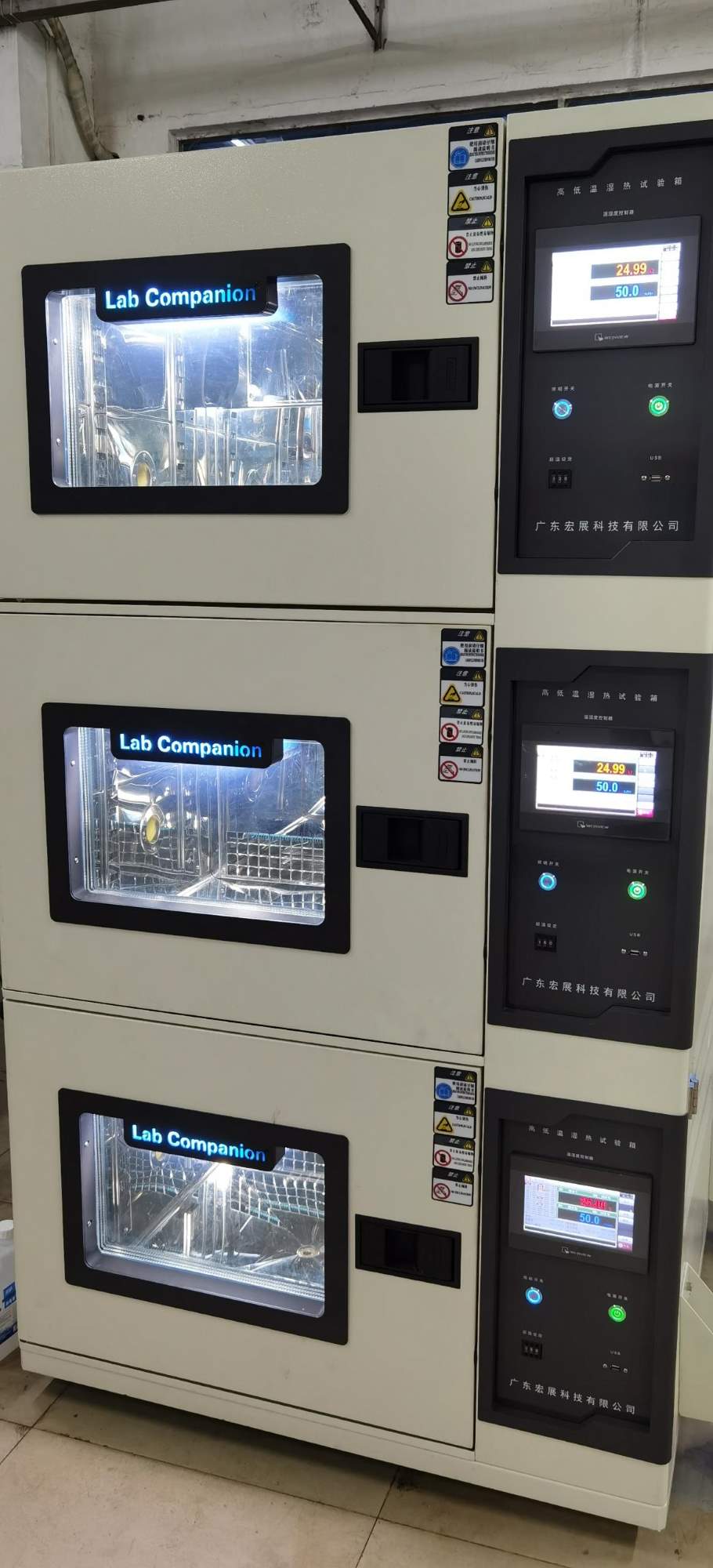

For the testing and development needs of electronic components such as semiconductors and on-board electronics, Lab Companion has developed a small rapid temperature change humidity test chamber with a smaller capacity. While maintaining the advantages of a standard rapid temperature change test chamber, Lab Companion can meet the needs of customers who have space requirements. It can also meet the equipment use needs of customers in civil office areas such as research institutions and universities.

Main features:

1. Strong heating and cooling performance

Heating rate: 15℃/min; Cooling rate: 15℃/min

(Temperature range: -45℃+155℃).

2. Single-phase 220VAC, meet the requirements of more customers

Single-phase 220VAC, suitable for industrial and civil power supply specifications, can meet the equipment power needs of customers in research institutions, universities and other civil office areas.

3.Small and delicate body, compact structure, easy to move

Miniaturized test chamber structure design can effectively save configuration space;

The inner volume is 100L, the dimension width is 600mm, the depth is less than 1400mm, and the product volume is less than 1.1m³, which is suitable for most residential and commercial elevators in China (GB/T7025.1).

The standard universal wheel allows the product to move freely in the installation site.

4.Standard air-cooled specifications, convenient product movement and installation

At the same time, the cost and space for customers to configure cooling water towers are eliminated.

5.More in line with ergonomic operation touch screen design

Through the multi-angle adjustment of the touch screen, it can meet the operation needs of users with different heights and the best field of view, which is more convenient and comfortable.

6.Balanced temperature and humidity control system (BTHC), double PID and water vapor partial pressure control, mature technology, high precision.

7.Through the interface can be network control and data acquisition (RS-485/GPIB/Web Lan/RS-232C).

8.Standard with left and right cable holes (50mm), easy to sample energized connection, a number of measurements.

9.The controller adopts color LCD touch screen, easy to operate

Pressure relief valve, smoke sensor, scram switch, alarm output terminal, three-color light and other safety options can be added.

Through the controller, two kinds of control can be selected, set value and program, to adapt to different applications.

Program control can be set 100 modes, each mode set 99 steps. Repeat the cycle up to 999 times.

Easy switching of multiple languages (simplified Chinese, English), test data storage U disk.
