What are the Attractive Features of Rapid-rate Thermal Cycle Test Chambers of Lab Companion?

What are the Attractive Features of Rapid-rate Thermal Cycle Test Chambers of Lab Companion?

Rapid-rate thermal cycle test chambers use the temperature acceleration technique to change the external environmental stress, so that the thermal stress and strain in the product can be generated, and the potential defects of the product can emerge by accelerating the stress, which has a significant effect on improving the product delivery yield and reducing the number of repairs. It is widely used in electronics, electrical appliances, instruments, automobiles, communications, aerospace, plastics, metals and other products testing.

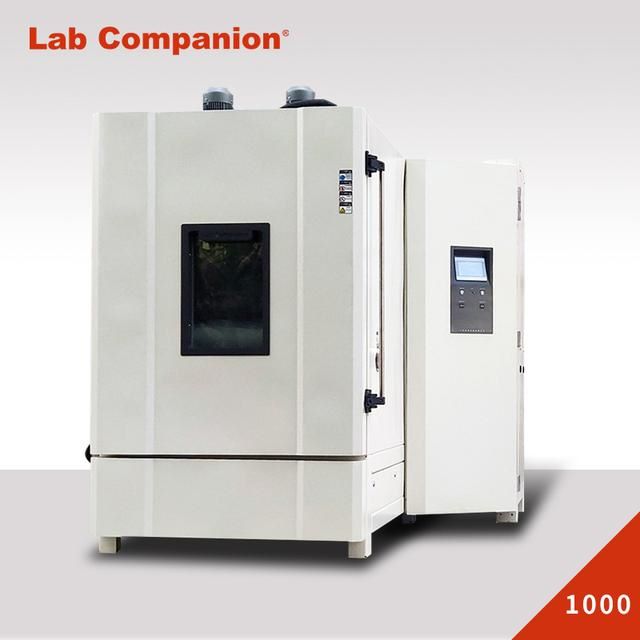

Rapid-rate thermal cycle test chambers of Lab Companion(T series) have the following attractive features in design:

1. The T series of Lab Companion are equipped with auxiliary control device, which has the function of temperature and time setting control, ensuring the accuracy of temperature control while fast temperature change.

2. The T series use programmable memory, which are easy to form an industrial control system with auxiliary devices, and meet all applicable functional principles.

3. In the design of air-cooled channel, the T series exhaust is set at the top of the test chamber, thus reducing the load of air conditioning in the test room.

4. The T series of Lab Companion have excellent air flow design, and the gradient of accuracy is controlled in the test, which improves the temperature and humidity uniformity of the test chamber and makes the test results more accurate.

5. The T series 600-litre test chambers are equipped with high-horsepower compressor unit to achieve a stable temperature change rate of ≥10℃/min, and the maximum high temperature change rate of the rapid-rate thermal cycle test chamber of Lab Companion can reach 25℃/min.

6. With electronic pressure sensors and pressure switches, the T series can effectively self-monitor and protect for easy fault diagnosis. The limit setting of the pressure sensor can be changed when the refrigerant is replaced or there is other need.

7. The T series are equipped with intelligent automatic speed control system, which can automatically adjust refrigerant flow and intelligent electric heating power according to the load, reducing energy consumption by 30% compared with traditional design.

8. The T series have line breakage and overheat protectors to provide safety protection for operators conducting mechanical tests.

9. The T series of Lab Companion are grounded safely and reliably to prevent static electricity.
