Application background: The destruction of natural water (rainwater, seawater, river water, etc.) to products and materials causes an inestimable economic loss every year. The damage mainly includes corrosion, fading, deformation, strength decline, expansion, mildew, etc.. Especially, electrical products caused by rain short circuit easy to cause fire. Therefore, for specific products or materials, the shell protection water test is an essential key procedure.
Equipment function: The equipment is used for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products in the simulation of rain weather conditions, the physical and other related performance of the product test. After the test, through the verification to determine whether the performance of the product meets the requirements, in order to facilitate the design, improvement, verification and factory inspection of the product.
Item No :
IPX56-1452LOrder(MOQ) :
1Product Origin :
DongguanColor :

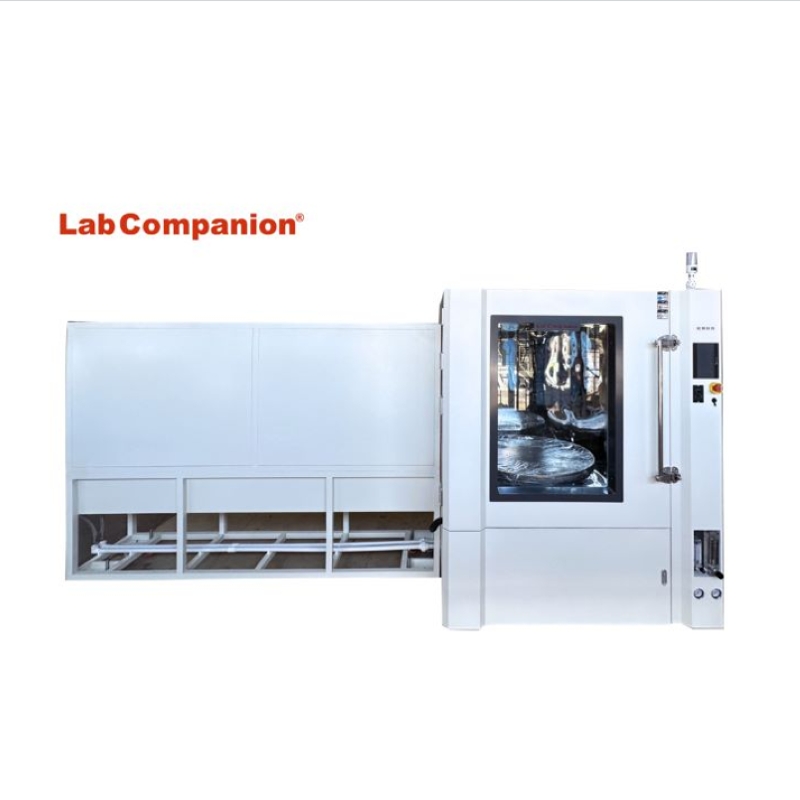

WhiteWaterproof Test Chamber
Technical Parameter
|
External chamber size(approximately) |
L4200*D1350*H2150（including the truckle） |
|
Inner chamber size |
L1100*W1100*H1200mm |
|
Equipment power supply |
380V, 5KW |
|
Turntable size |
Diameter600H80, left aperture size：H925*D400，a lifting turntable is also available as standard |
|
IPX56 |
|
|
IPX56water spray system |
IPX5Spray aperture*1，IP6Spray aperture*1 |
|
Spray nozzle diameter |
IPx5：¢6.3mm，IPx6：¢12.5mm |
|
Nozzle connection |
Threaded connection, using a loop connection with the water pipe, easy to operate |
|
Water spray flow |
IPX5：12.5L/M ±0.625L , IPX6:100L/M±5L |
|
Spray time |
Universal standard 3 minutes(adjustable) |
|
Spray distance |
The sample is 2.5-3 meters away from the nozzle(manually adjust) |
|
Nozzle material |
SUS304 stainless steel |
|
Aperture size |
900H*400W |
|
Security function
|
1.Grounding protection. |
|
2. Overvoltage protection. |
|
|
3. Overcurrent protection. |
|
|
4. Overtemperature protection. |
|
|
5. Overpower protection |
|
|
6. Leakage protection |
|
|
7. Short circuit protection |
|
|
8. Lack of phase protection. |
|
|
9. Undervoltage protection. |
|
|
10. Motor overheat protection. |
|
|
11. Controller power failure memory protection. |
|
|
12. Emergency stop switch: Install emergency stop button on equipment and control room. |
|
|
Attachment |
1. One copy of operating instructions; 2. One factory certificate; 3. One copy of equipment warranty card; 4. Water pipe 3 meters (2 pipes). |
IPx Rain Spray Test Chamber
The rain test box is made of high quality materials, processed by the most advanced processing equipment in China, and the shell surface is sprayed with plastic treatment, which is beautiful and smooth.It has coordinated color, artfully designed arc, smooth and natural lines. The inner liner is made of imported high-quality stainless steel plate. Indoor sample rack and other accessories are made of stainless steel or copper materials, which are reasonable reasonable and durable. Under the premise of meeting national standards, the equipment is more practical and easy to control on the basis of stable performance in all aspects.
The whole box of the waterproof test equipment adopts the overall structure, which is divided into three parts: upper, lower and right. The upper part is the studio, the lower part is the mechanical room, and the right side is the electrical control cabinet. Selection of high-quality materials, the use of advanced technology processing molding, the inner shell are made of high-quality SUS304 stainless steel plate. Indoor sample rack and other accessories are made of stainless steel material reasonably and durably. With high pressure spray component/working rotary table/electrical controller.
