As a special equipment for testing the waterproof performance of the product in water, the product is tested by simulating the water environment at different depths, the performance of the product under flooded conditions, in particular the sealing performance of the shell. It is widely used in many fields such as electronics, automobile, medical, to ensure that the product can resist the intrusion of water in actual use, so as to ensure the safety and service life of the product.
Item No :
IPX7-504Order(MOQ) :
1Product Origin :
DongguanColor :
StainlessWater Immersion Test Chamber
Specifications and parameters：
1.Name：Water Immersion Test Chamber
2.Model： IPX7-504
3.Power source：AC 220V, 50/60HZ,One-phase three-wires system
4.Rated current：AC 5.5A, Power 1.2KW
This machine is dedicated to the above marked power supply, please use according to the rated power distribution.If the use area is changed, please contact our company. Service phone 400-628-2786.
5.Suitable environment for using：15℃～35℃ 25%～75%
6.Keep the surface of the test instrument and equipment clean and abnormal. The test chamber is well ventilated and the floor is clean and tidy.
7.Confirm that the test sample is intact and meets the experimental requirements.
8.Open the water valve and add water into the chamber (pay attention to the water level).
9.Firmly install the test sample on the hook sample bracket at the top of the box according to the state of work, and then put the product into the appropriate position in the water. (The desired position can be adjusted according to the steel rule.
10.Time setting of test parameters
10.1. Turn on the power switch on the control panel.
10.2.Firstly, select the time unit (H.M.S) to represent hour, minute and second respectively on the timing controller of the control panel, and then set the time required for the test by the number +, - (plus and minus) buttons.
11.Dimension
11.1.Internal dimension: W600 × H1400 × D600 (mm)
11.2.Basket dimension: W500 × H200 × D500 (mm)
11.3.External dimension; W1160 × H1590 × D1003 (mm)
Weather Resistance Test Chamber
The appearance and specification

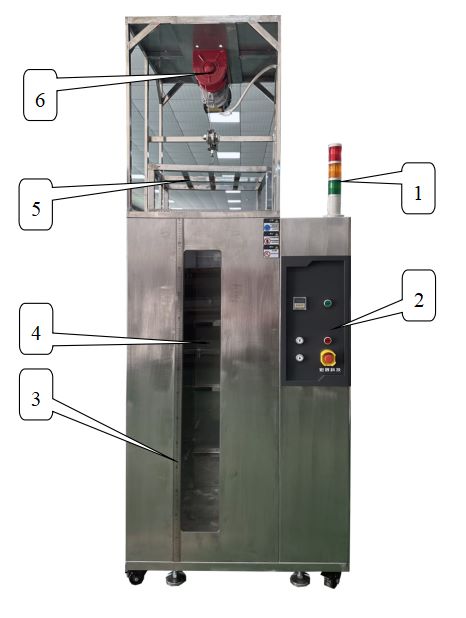

The front side of the machine:
| Number |
Name |
Illustrate |
|
1 |
Tricolor light |
Green light means running, yellow standby, red fault |
|
2 |
Controller panel |
The intelligent operating panel |
