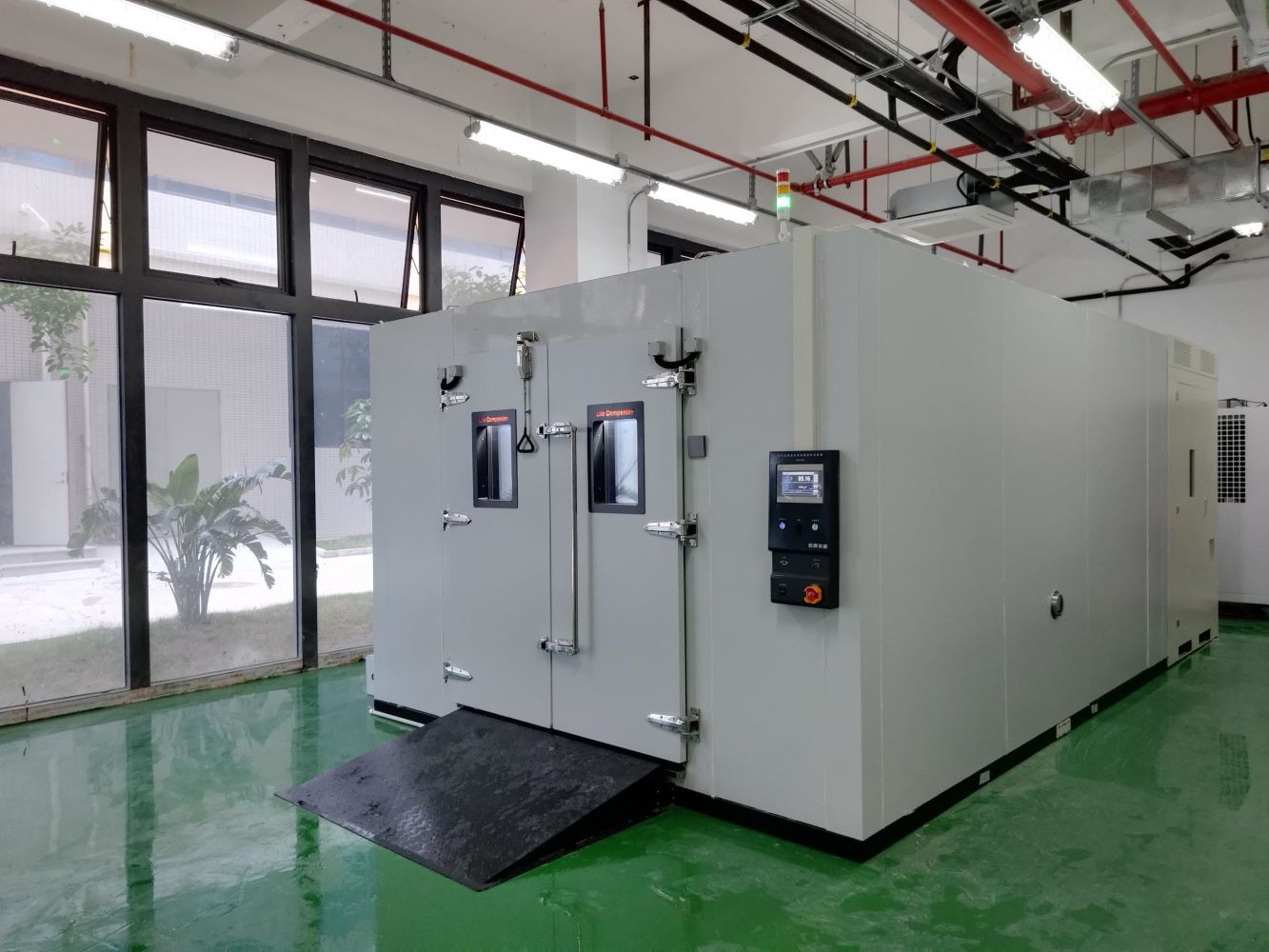

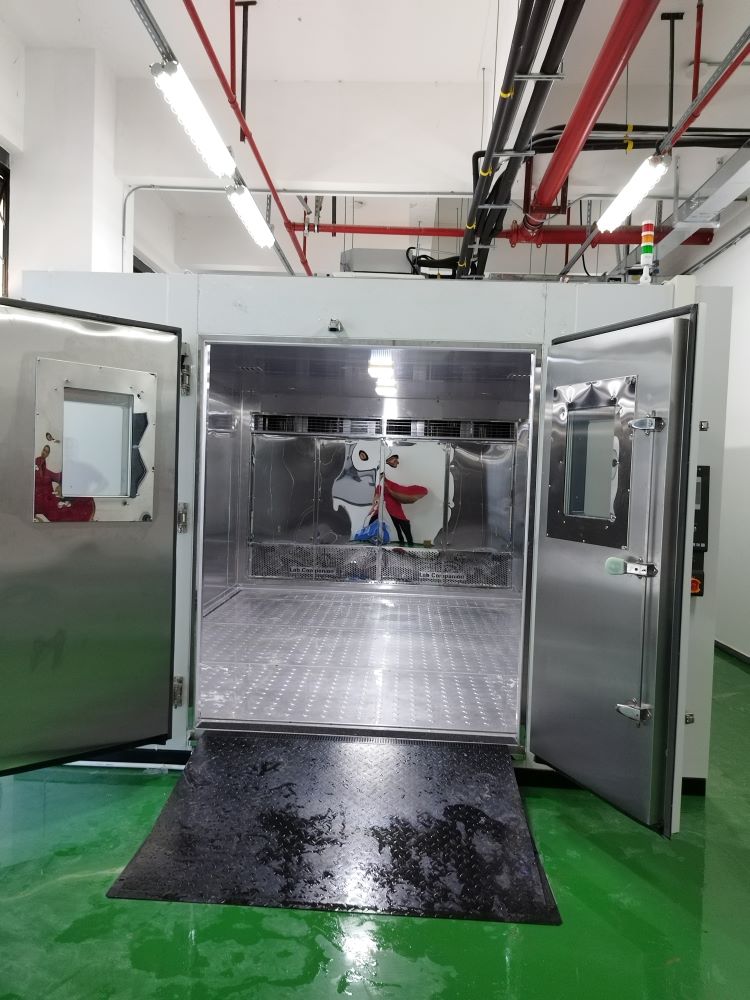

Walk-in High and Low Temperature Humidity Laboratory
The walk-in high and low temperature humidity laboratory is used in the heat and cold resistance test of national defense industry, aerospace industry, automatic components, automotive parts, electronic and electrical parts, plastics, chemical, pharmaceutical industry and related products.
Very large equipment with high cost performance. Applicable standards: GB/T2423.3 (IEC60068-2-78), GB/T2423.4 (IEC60068-2-30), GB/T2423.34 (IEC60068-2-38), GB/T2423.3 (IEC60068-2-78), GB/T2423.4 (IEC6 0068-2-30), GB/T2423.34 (IEC60068-2-38), GB/T2423.40 (IEC60068-2-66) / ISO16750 / GB/T14710 / GB/T13543:1992, JESD22, GB/T2423.40 (IEC60068-2-66), ISO16750, GB/T14710, GB/T13543, JESD22.
High temperature to +150℃.
Fast temperature cycle, up to 15℃/ min.
Low temperature to -35 ℃ or -65 ℃.
Air temperature cycle, as fast as 15℃/ min.
Optional temperature controls extend the humidity range of conventional boxes.
The size can be determined according to your needs.
|
Model |
Temperature Range |
Humidity Range |
Inner Volume |
Temperature Change Rate |
Internal Dimension |
External Dimension |
|
C/W5/65 |
-65～+150℃ |
10～95%RH |
5,190L |
15℃/min |
1,220×1,780×2390 |
2,800×2,300×2,800 |
|
C/W10/65 |
-65～+150℃ |
10～95%RH |
10,350L |
15℃/min |
1,580×2,740×2,390 |
4,000×3,100×2,800 |
|
C/W15/65 |
-65～+150℃ |
10～95%RH |
14,150L |
15℃/min |
2,160×2,740×2,390 |
4,900×2,700×2,8005 |
Get A Quote
