The Significance of Constructing ISO27001 Information Security Management System
After the rapid development of computer technology, network technology has been applied in a full range, and the ensuing information security problem has gradually received the attention of all sectors of society. Information security has not only been fully developed in the field of communication and data, but also involved in computer security, communication security and network security. To establish an information security system that conforms to modern enterprise business and management, improve information construction, and reduce security loopholes through the IS027001 information security management system is of great significance to the long-term development of enterprises.
The benefits of constructing IS027001 Information Security management system：
(1) It can effectively protect information resources and promote the orderly, healthy and sustainable development of informatization process. IS027001 is a standard system in the field of information security management, similar to the quality management system certification IS09000 standard.
(2) When the enterprise passes the IS027001 certification, it is equivalent to the enterprise's information security management is scientific and reasonable, and can effectively protect customer information and internal information. After the IS027001 Information security management system certification, you can have a number of benefits or advantages. The introduction of information security management system can coordinate information management at all levels, simplify management links and improve management efficiency.
(3) Through the IS027001 information security management system certification, it can also increase the credit degree of e-commerce exchanges between enterprises, establish a trusted cooperative relationship between the website and trading partners, and deepen the development of enterprise business information.
(4) Through the IS027001 information security management system certification, it can promote the relevant enterprises to achieve information security commitments, eliminate the distrust of customers and employees, and improve business performance. In addition, it can even gain international recognition so that the business can expand overseas.
The significance of constructing IS027001 information security management system：
In essence, information security management system is an information security management mode, its purpose is to improve the management level of enterprises, promote the benign development of enterprises, ensure the security of various information resources of enterprises, and not be stolen by the outside world to cause negative impact on enterprises. Information security management system with many standards, the main reference is IS027001 information security management standard. To achieve enterprise information security management standardized and orderly through the reference of the standard, so that enterprise information security management can be more scientific and reasonable. Information security management develops with the development of information technology. In the information society, information resources have become a precious resource and has high economic value.
Under the realistic background of information security problems, strengthening the construction of information security management system has extremely important practical role and future significance. Under the IS027001 information security standard, we develop advanced technologies, carefully evaluate information security risks, and build an information security management system that conforms to the current situation and future development of enterprises.

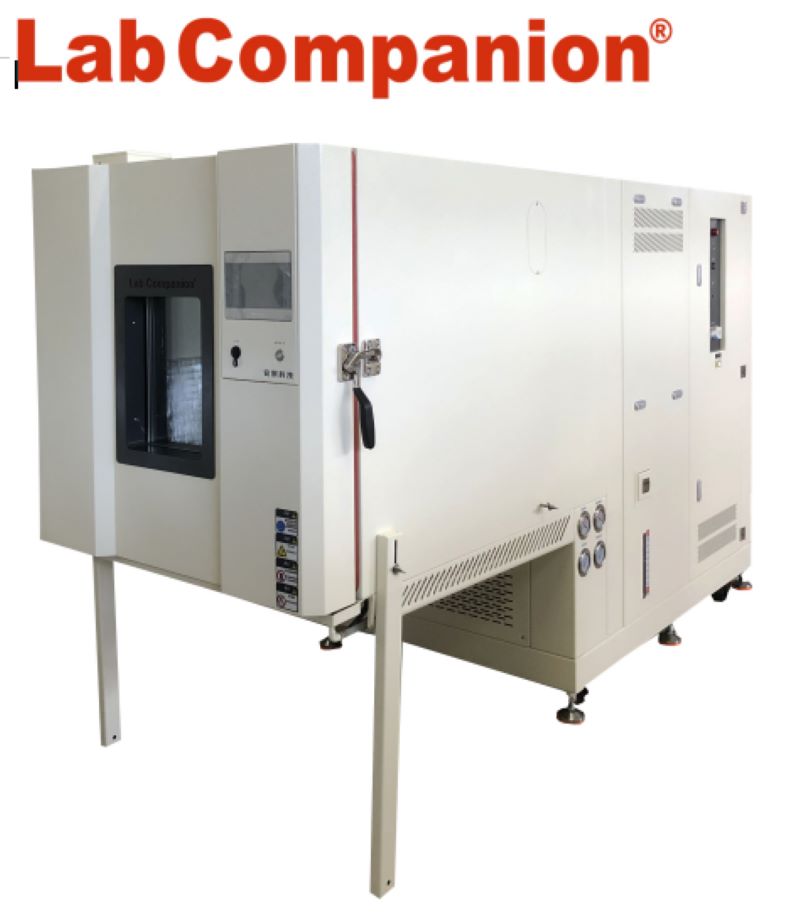

The Comprehensive Chamber of Temperature, Humidity, Height and Vibration
The comprehensive chamber of temperature, humidity, height and vibration is suitable for aviation, aerospace, weapons, ships, nuclear industry and other information electronic instruments, all kinds of electronic machines, parts and components, as well as materials, processes, etc. in temperature, humidity, height (≤30000 meters) and vibration and other climatic environment and mechanical environment simulation test and comprehensive environmental test of the combination of factors.
Main parameters of the comprehensive chamber of temperature, humidity, height and vibration:
Effective size of the studio: D1200×W1200×H1000mm (other sizes can be customized)
Temperature range: -70℃ ~ +150℃
Humidity range: 20% ~ 98%(atmospheric pressure condition, highly comprehensive test is adjusted)
Heating time: ≥10℃/min (-55℃ ~ +85℃, atmospheric pressure, 150kg aluminum)
Cooling time: ≥10℃/min (-55℃ ~ +85℃, atmospheric pressure, 150kg aluminum)
Air pressure range: normal pressure ~ 0.5kPa
Sinusoidal and random excitation force: 100kN
Maximum acceleration: 100g
Frequency range: 5 ~ 2500Hz
Working surface: φ640mm
Comprehensive test capacity:
► Temperature + humidity comprehensive test:
Temperature range: +20℃ ~ +85℃; Humidity range: 20% ~ 98%.
► Temperature + height comprehensive test:
Temperature range: -55℃ ~ +150℃; Height range: ground ~ 30000m.
► Temperature + humidity + height comprehensive test:
Temperature range: +20℃ ~ +85℃; Humidity range: 20% ~ 95%(the highest humidity is highly correlated); Height range: ground ~ 15200m. Some parameters can be further expanded according to the specific requirements of the comprehensive test.
►Temperature + humidity + height + vibration comprehensive test:
Temperature range: +20℃ ~ +85℃; Humidity range: 20% ~ 95%(the highest humidity is highly correlated); Height range: ground ~ 15200m, vibration parameters correspond to vibration table specifications. Some parameters can be further expanded according to the specific requirements of the comprehensive test.
The comprehensive chamber of temperature, humidity, height and vibration meets the standard:
►GB/T2423.1 Test A: Low temperature test method
►GB/T2423.2 Test B: High temperature test method
►GB/T2423.3 Constant temperature and humidity test
►GB/T2423.4 alternating temperature and humidity test
►GB/T2423.21 low pressure test method
►GB/T2423.27 Low temperature low pressure and humidity continuous comprehensive test
►GJB150.2A Low pressure (altitude) test
►GJB150.3A high temperature test
►GJB150.4A low temperature test
►GJB150.9A temperature and humidity test
►GJB150.24A temperature - humidity - vibration - height test
►GJB150.2 Military equipment environmental test method Low pressure test
►GJB150.6 military equipment environmental test method temperature-height test;
►GJB150.19 Military equipment environmental test method temperature - height - humidity test;
►RTCA-DO-160 related test requirements;
Vibration Of The Comprehensive Chamber
Vibration of the comprehensive chambers reproduce the use environment of electronic instruments, auto parts, ships, aerospace and other industry products, to achieve temperature, humidity, vibration comprehensive composite test.
● Functional Features of vibration of the comprehensive chamber
According to the purpose of the test, the setting place and the fixing method of the sample, a reasonable matching mode between the test chamber and the shaking table should be selected. The test chamber and shaking table can be combined to carry out compound test, or test separately.
● Product application of vibration of the comprehensive chamber
Vibration of the comprehensive chambers are mainly used in aviation, aerospace, ships, weapons, electrical, electronic, automobile and automobile parts, motorcycles, communications, scientific research institutes, metrology and other industries to determine electrical and electronic products, instruments or other equipment in the transport, storage, use of reliability test. It is mainly made of temperature and humidity test chamber with corresponding vibration table, which can independently complete the corresponding temperature, humidity, vibration test (vertical and horizontal direction) and the combination test of three factors.
Vibrational Verification for Functionality(VVF)
In the vibration generated during transportation, freight boxes are susceptible to complex dynamic pressures, and the resonant response generated is violent, which may cause packaging or product failure. Identifying the critical frequency and the type of pressure on the package will minimize this failure. Vibration testing is the assessment of the vibration resistance of components, components and complete machines in the expected transport, installation and use environment.
Common vibration modes can be divided into sinusoidal vibration and random vibration. Sinusoidal vibration is a test method often used in the laboratory, which mainly simulates the vibration generated by rotation, pulsation and oscillation, as well as the resonance frequency analysis and resonance point residence verification of the product structure. It is divided into sweep frequency vibration and fixed frequency vibration, and its severity depends on the frequency range, amplitude value and test duration. Random vibration is used to simulate the overall structural seismic strength assessment of the product and the shipping environment in the packaged state, with the severity depending on the frequency range, GRMS, test duration and axial orientation.
Vibration can not only loosen the lamp components, so that the internal relative displacement, resulting in de-welding, poor contact, poor working performance, but also make the components produce noise, wear, physical failure and even component fatigue.
To this end, Lab Companion launched a professional "LED lamp vibration test" business to simulate the vibration or mechanical shock that may occur in the actual transportation, installation and use environment of the lamp, evaluate the vibration resistance of the LED lamp and the stability of its related performance indicators, and find the weak link that may cause damage or failure. Improve the overall reliability of LED products and improve the failure status of the industry due to transportation or other mechanical shocks.
Service customers: LED lighting factory, lighting agents, lighting dealers, decoration companies
Test method:
1, the LED lamp sample packaging placed on the vibration test bench;
2, the vibration speed of the vibration tester is set to 300 RPM, the amplitude is set to 2.54 cm, start the vibration meter;
3, the lamp according to the above method in the upper and lower, left and right, front and back three directions respectively test for 30 minutes.
Results evaluation: After the vibration test, the lamp can not occur parts falling off, structural damage, lighting and other abnormal phenomena.
The Relationship Between the Altitude of the Standard Atmosphere and Air Temperature and Pressure
The standard atmosphere referred to here refers to the "1964, ICAO Standard atmosphere" adopted by the International Civil Aviation Organization. Below an altitude of 32 km, it is the same as "1976, U.S. standard atmosphere". Changes in air temperature near the surface (below 32 km) are:
Ground: The air temperature is 15.0℃, the air pressure P=1013.25mb= 0.101325MPa
Temperature change rate from ground to elevation 11 km: -6.5 ℃/ km
On the 11km interface:
The air temperature is -56.5 ℃ and the air pressure P=226.32mb
Temperature change rate at elevations of 11-20 km: 0.0℃/ km
Temperature change rate at altitude 20-32 km: +1.0/ km
The following table lists the temperature and pressure values of the standard atmosphere at different altitudes. In the table, "gpm" is the altitude meter, and its negative sign represents the altitude
Gpm
Temperature℃
Atmospheric pressure(mb)
Gpm
Temperature℃
Atmospheric pressure(mb)
Gpm
Temperature℃
Atmospheric pressure(mb)
-400
17.6
1062.2
4800
-16.2
554.8
10000
-50.0
264.4
-200
16.3
1037.5
5000
-17.5
540.2
10200
-51.3
256.4
0
15.0
1013.3
5200
-18.8
525.9
10400
-52.6
248.6
200
13.7
989.5
5400
-20.1
511.9
10600
-53.9
241.0
400
12.4
966.1
5600
-21.4
498.3
10800
-55.2
233.6
600
11.1
943.2
5800
-22.7
484.9
11000
-56.5
226.3
800
9.8
920.8
6000
-24.0
471.8
11500
-56.5
209.2
1000
8.5
898.7
6200
-25.3
459.0
12000
-56.5
193.3
1200
7.2
877.2
6400
-26.6
446.5
12500
-56.5
178.7
1400
5.9
856.0
6600
-27.9
434.3
13000
-56.5
165.1
1600
4.6
835.2
6800
-29.2
422.3
13500
-56.5
152.6
1800
3.3
814.9
7000
-30.5
410.6
14000
-56.5
141.0
2000
2.0
795.0
7200
-31.8
399.2
14500
-56.5
130.3
2200
0.7
775.4
7400
-33.1
388.0
15000
-56.5
120.5
2400
-0.6
756.3
7600
-34.4
377.1
15500
-56.5
111.3
2600
-1.9
737.5
7800
-35.7
366.4
16000
-56.5
102.9
2800
-3.2
719.1
8000
-37.0
356.0
17000
-56.5
87.9
3000
-4.5
701.1
8200
-38.3
345.8
18000
-56.5
75.0
3200
-5.8
683.4
8400
-39.6
335.9
19000
-56.5
64.1
3400
-7.1
666.2
8600
-40.9
326.2
20000
-56.5
54.7
3600
-8.4
649.2
8800
-42.2
316.7
22000
-54.5
40.0
3800
-9.7
632.6
9000
-43.5
307.4
24000
-52.5
29.3
4000
-11.0
616.4
9200
-44.8
298.4
26000
-50.5
21.5
4200
-12.3
600.5
9400
-46.1
289.6
28000
-48.5
15.9
4400
-13.6
584.9
9600
-47.4
281.0
30000
-46.5
11.7
4600
-14.9
569.7
9800
-48.7
272.6
32000
-44.5
8.7
Unit conversion relation
1mbar=100Pa=0.1KPa=0.0001 Mpa
1ft=0.3048m=304.8mm
55000ft*0.3048=16764m
Lab Companion focused on the production of reliability environmental test equipment for 19 years, successfully helped 18,000 enterprises to test the reliability and environmental performance of products and materials.
The main products are: high temperature test chamber, high and low temperature and humidity test chamber, walk-in environmental test chamber, rapid temperature cycling test chamber, thermal shock test chamber, high and low temperature low pressure test chamber, vibration of the comprehensive chamber and other test equipment manufacturing solutions to help enterprises R & D bigger and stronger!
If you need to know more about the products of the environmental test chamber, you can search the official website of "Lab Companion", feel free to contact us for consultation, we can provide you with one-on-one professional technical advice and guidance.
Electric Vehicle Component Reliability Test Solution
In the trend of global warming and gradual consumption of resources, automotive gasoline is also sharply reduced, electric vehicles are driven by electric energy, reducing the heat of internal combustion engine, carbon dioxide and exhaust gas emissions, for energy saving and carbon reduction and improve the greenhouse effect plays a huge role, electric vehicles are the future trend of road transportation; In recent years, the world's advanced countries actively develop electric vehicles, for thousands of components composed of complex products, its reliability is particularly important, a variety of harsh environments are testing the electronic system of electric vehicles [battery cell, battery system, battery module, electric vehicle motor, electric vehicle controller, battery module and charger...], Hongzhan Technology for you to sort out electric vehicle related parts reliability test solutions, hope to be able to provide customers with reference.
First, different environmental conditions will have different effects on parts and cause them to fail, so the parts of the car need to be tested according to the relevant specifications to meet international requirements and meet the foreign market, the following is the correlation between different environmental conditions and product failure:
A. High temperature will make the product aging, gasification, cracking, softening, melting, expansion and evaporation, resulting in poor insulation, mechanical failure, mechanical stress increase; Low temperature will make the product embrittlement, icing, shrinkage and solidification, mechanical strength reduction, resulting in poor insulation, cracking mechanical failure, sealing failure;
B. High relative humidity will make the product poor insulation, cracking mechanical failure, sealing failure and resulting in poor insulation; Low relative humidity will dehydrate, embrittlement, reduce mechanical strength and lead to cracking and mechanical failure;
C. Low air pressure will cause product expansion, electrical insulation deterioration of the air to produce corona and ozone, low cooling effect and lead to mechanical failure, sealing failure, overheating;
D. Corrosive air will cause product corrosion, electrolysis, surface degradation, increased conductivity, increased contact resistance, resulting in increased wear electrical failure, mechanical failure;
E. Rapid temperature changes will cause local overheating of the product, resulting in cracking deformation and mechanical failure;
F. Accelerated vibration damage or impact will cause the mechanical stress fatigue resonance of the product and lead to an increase in structural damage.
Therefore, products need to pass the following climatic tests to test the reliability of components: Dust (dust) test, high temperature test, temperature and humidity storage test, salt/dry/warm recovery test, temperature and humidity cycle test, immersion/seepage test, salt spray test, low temperature test, thermal shock test, hot air aging test, weather and light resistance test, gas corrosion test, fire resistance test, mud and water test, dew condensation test, high variable temperature cycle test, Rain (waterproof) test, etc.
The following are the test conditions for automotive electronics:
A. IC and interior lights for locomotives,
Recommended model: vibration of the comprehensive chamber
B. Instrument panel, motor controller, Bluetooth headset, tire pressure sensor, GPS satellite positioning system, instrument backlight, interior light, exterior light, automotive lithium battery, pressure sensor, motor and controller, automotive DVR, cable, synthetic resin
Recommended model: constant temperature and humidity test chamber
C. 8.4 "LCD screen for cars
Recommended model: thermal stress recombination machine
Second, automotive electronic parts are divided into three categories, including IC, discrete semiconductor, passive components three categories, in order to ensure that these automotive electronic components meet the highest standards of automotive safety. The Automotive Electronics Council(AEC) is a set of standards AEC-Q100 designed for active parts (microcontrollers and integrated circuits...)and AEC-Q200 designed for passive components, which specifies the product quality and reliability that must be achieved for passive parts. AEC-Q100 is the vehicle reliability test standard formulated by the AEC organization, which is an important entry for 3C and IC manufacturers into the international auto factory module, and also an important technology to improve the reliability quality of Taiwan IC. In addition, the international auto factory has passed the safety standard (ISO-26262). AEC-Q100 is the basic requirement to pass this standard.
1. List of automotive electronic parts for A.EC-Q100: Automotive disposable memory, Power Supply step-down regulator, Automotive photocoupler, three-axis accelerometer sensor, video jiema device, rectifier, ambient light sensor, non-volatile ferroelectric memory, power management IC, embedded flash memory, DC/DC regulator, Vehicle gauge network communication device, LCD driver IC, Single power Supply differential Amplifier, Capacitive proximity switch Off, high brightness LED driver, Asynchronous switcher, 600V IC, GPS IC, ADAS Driver Assistance System Chip, GNSS Receiver, GNSS front-end amplifier...
B. Temperature and humidity test conditions: temperature cycle, power temperature cycle, high temperature storage life, high temperature working life, early life failure rate;
2. List of automotive electronic parts for A.AC-Q200: automotive grade electronic components (compliant with AEC-Q200), commercial electronic components, power transmission components, control components, comfort components, communication components, audio components.
B. Test conditions: high temperature storage, high temperature working life, temperature cycle, temperature shock, humidity resistance.
LED Traffic Light Test
Light-emitting Diode, referred to as LED, is the abbreviation of the English name Light Emitting Diode, through the combination of electrons and holes to release energy light, can efficiently convert electrical energy into light energy, has a wide range of uses in modern society, such as lighting, flat panel display and medical devices. With the continuous progress of technology, this electronic component from the early can only emit low-light red light to develop other monochromatic light, has been widely used in visible light, infrared and ultraviolet light, is widely used in indicators and display boards, and then extended to traffic lights. It is known as a new light source in the 21st century, with high efficiency, long life, material is not easily affected by the environment and relatively stable, with the advantages of traditional light sources can not be comparable.
The traffic on the zebra crossing is heavy every day, as the guide of the traffic rules - the traffic light is also working hard every day, because it is placed outdoors all year round, so it must accept the strict reliability test before it can work. The test conditions include: Voltage electric, failure protection, electromagnetic noise, dust and waterproof, high temperature test, vibration test, salt spray test, insulation voltage, insulation resistance test...
Note: Before other tests, LED traffic lights need to undergo dry heat tests before other tests can be carried out.
Lamp surface test: dry heat test: 60℃/24 hours/applied voltage
Failure judgment: no deformation, loosening, falling off
Temperature resistance test: 70℃(16 hours)→-15℃(16 hours)→R.T., RAMP:≦1℃/min, 2cycle, power supply
Temperature and humidity test: 40℃→RAMP:≦1℃/min→40℃/95%(24 hours), power on
Continuous switching action: 40℃/60~80%, ON(1sec)←→OFF(1sec), 10000 times
Voltage electric: 80 ~ 135V(AC), 170 ~ 270V(AC)
Failure judgment: Light intensity drift ≦20%(110V, 220V light intensity as the benchmark)
Waterproof and dustproof meet IP54 class requirements
Insulation resistance test:
Insulation resistance: 500V
Failure determination: not less than 2MΩ
Insulation withstand voltage test: 1000V/60Hz/1min(after insulation resistance test)
Light chamber test:
High temperature test: 130℃/1 hour
Failure judgment: no deformation, loosening, falling off, cracking... Etc.
Vibration test: XYZ three-way, each 12min for 36min, 10 ~ 35 ~ 10Hz sine wave, each cycle for 3min, total vibration of 2mm
Failure judgment: no deformation, loosening, falling off, cracking, and the LED light surface can be normally lit and operated
Wind tunnel test: Wind speed 16 (51.5-56.4m /s), forward (0 degrees) and side (45 degrees), each blowing for 2 hours
Failure judgment: no deformation, loosening, falling off, cracking
Salt spray test: 96 hours
Failure determination: less than 8 embroider points on the area of 10,000mm^2, LED signal light surface insulation resistance >2MΩ, voltage 1000V/1min, no abnormality
Recommended model 1: high temperature and high humidity test chamber
High temperature and high humidity test chamber is suitable for electrical, electronic, instruments and other products, parts and materials in high and low temperature alternating wet and hot environment storage, transportation, use adaptability test; It is a reliability test equipment for all kinds of electronic, electrical, electrical, plastic and other raw materials and devices to carry out cold resistance, heat resistance, wet resistance, dry resistance test and quality control engineering; Especially suitable for fiber, LCD, crystal, inductance, PCB, battery, computer, mobile phone and other products of high temperature resistance, low temperature resistance, moisture resistance cycle test.
Recommended model 2: vibration of the comprehensive chamber
Vibration of the comprehensive chamber combined with temperature, humidity, vibration function in one, suitable for aerospace products, information electronic instruments, materials, electrical, electronic products, all kinds of electronic components in a comprehensive harsh environment to test their performance indicators. Vibration of the comprehensive chamber mainly for aerospace, aviation, petroleum, chemical, electronics, communications and other scientific research and production units to provide temperature and humidity change environment, at the same time in the test chamber will be electric vibration stress according to the specified period of the test on the test, for the user of the whole machine (or components), electrical appliances, instruments, materials for temperature and humidity, vibration comprehensive stress screening test. In order to assess the adaptability of the test product or to evaluate the behavior of the test product. Compared with the effect of a single factor, it can more truly reflect the adaptability of electrical and electronic products to temperature, humidity and vibration complex environment changes in transportation and actual use, and expose product defects, which is an essential and important test means for the whole process of new product development, prototype test and product qualification test.
Recommended model 3: salt spray test chamber
The salt spray test chamber is suitable for all kinds of communication electronic products, electronic appliances, hardware parts to do neutral salt spray test (NSS) and corrosion test (AASS, CASS), omplied with CNS, ASTM, JIS, ISO and other standards. The salt spray test is to test the corrosion resistance of the products on the surface of various materials after anti-corrosion treatment such as coating, electroplating, anodic treatment and anti-rust oil.
Recommended model 4: waterproof and dustproof test chamber
Waterproof and dustproof test chamber is suitable for outdoor terminals such as metering automation terminals and distribution network automation terminals to carry out rain and dust tests to ensure that the tested products can withstand the impact of harsh environmental changes, so that the products can operate safely and reliably, and are suitable for external lighting and signal devices and automotive lamp shell protection. It can provide realistic simulation of various environments such as water, spray and dust tests that electronic products and their components may be subjected to during transportation and use. In order to detect the waterproof and dustproof performance of various products.
