Test Specification for Electric Locomotives and Motors

    With the progress of society, the public's awareness of energy conservation, environmental protection and carbon reduction is increasing, the improvement of battery life, convenient stores to provide battery replacement services and the establishment of charging columns and other favorable conditions, which has prompted the public to accept the purchase of electric locomotives. The general definition of electric locomotives is: Extreme speed of less than 50km/h, on the slope, the maximum slope of the general urban road is about 5 ~ 60 degrees, the underground parking lot is about 120 degrees to the ground, the mountain slope is about 8 ~ 90 degrees, in the case of slope 80 degrees, more than 10 kilometers per hour for the basic needs of electric locomotives. Electric locomotive power system composition is mainly: Power system controller, motor controller, permanent magnet synchronous motor & DC brushless motor, DC power converter, battery management system, car charger, rechargeable battery, etc., Many manufacturers now introduce permanent magnet synchronous motor & DC brushless motor, with low speed and high torque, carbon brush free maintenance, far endurance and other advantages. Both the electric locomotive and the power motor system must meet the Ministry of Transportation light bicycle standards, or relevant regulatory requirements.

Electric locomotive complete vehicle reference specification:

CNS3103 machine bicycle running test method general

CNS3107 machine bicycle acceleration test method

Gb17761-1999 General technical conditions for electric bicycles

JIS-D1034-1999 Test method for braking of motor bicycles

GB3565-2005 Safety requirements for bicycles

Electric locomotive motor or brushless DC motor citation specification:

CNS14386-9 Electric motor bicycle-Test method for power output of motor and controller connection for vehicles

GB/T 21418-2008 Permanent magnet brushless motor system general technical conditions

IEC60034-1 Rating and Performance of rotating motors (GB755)

GJB 1863-1994_ General Specification for brushless DC motors

GJB 5248-2004 General specification for brushless DC motor drivers

GJB 783-1989 micromotor industry standard drive specification

QB/T 2946-2008 Electric bicycle motor and controller

QMG-J52.040-2008 Brushless DC motor

SJ 20344-2002 General specification for brushless DC torque motors

Environmental tests are mainly based on specifications:

IEC60068-2, GJB150

Applicable test equipment:

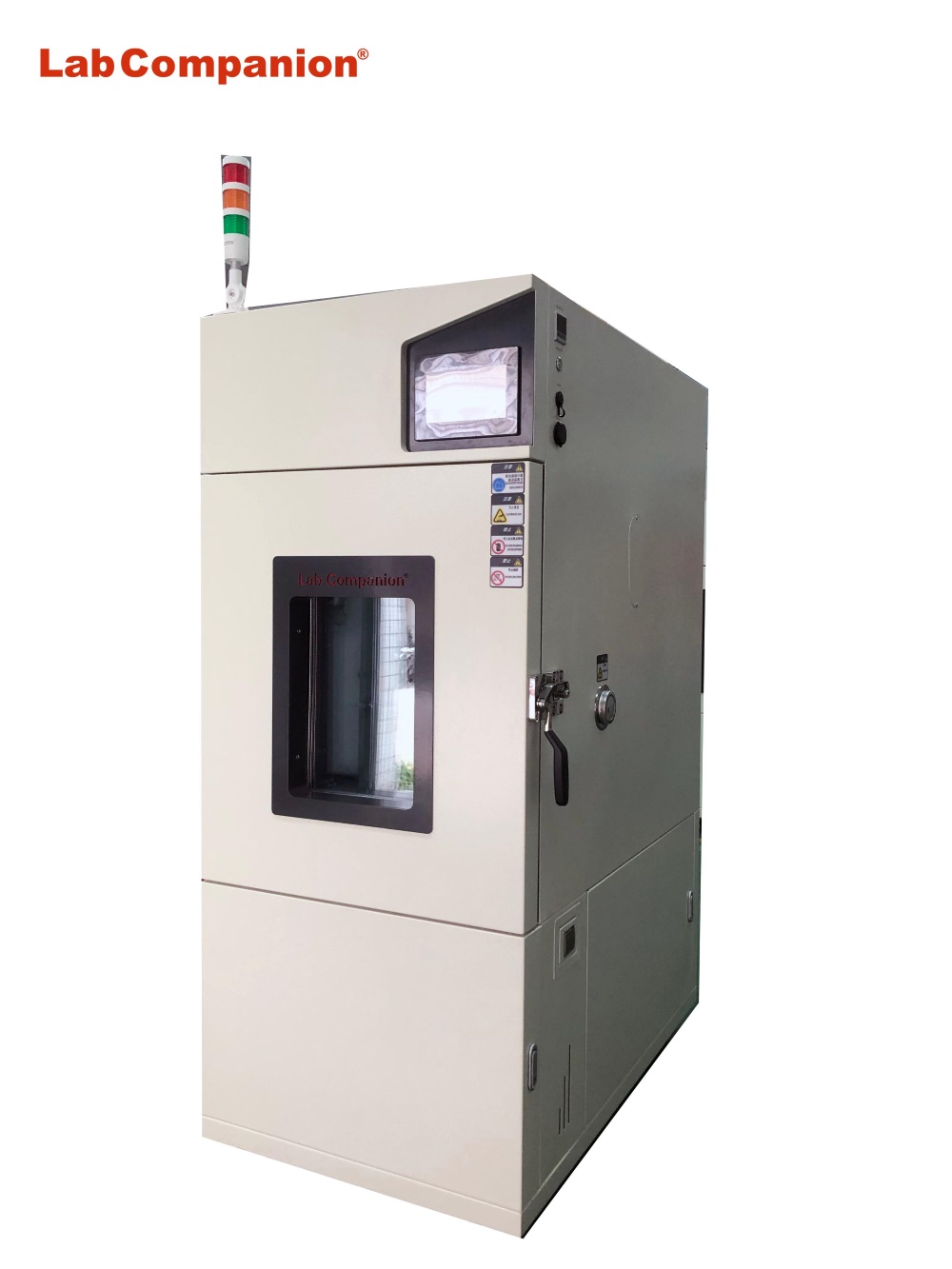

1.High and low temperature test chamber

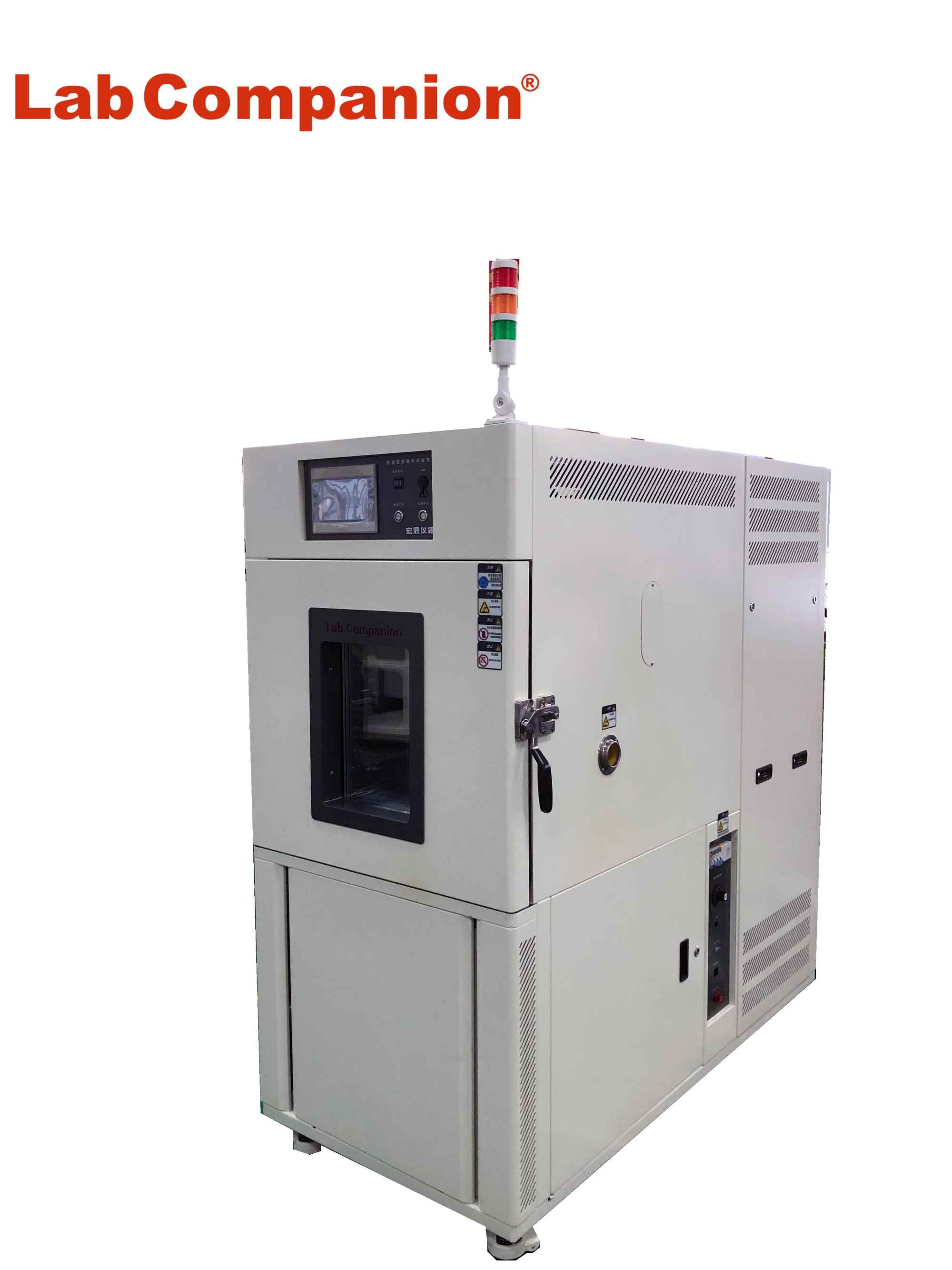

2. High and low temperature humidity test chamber

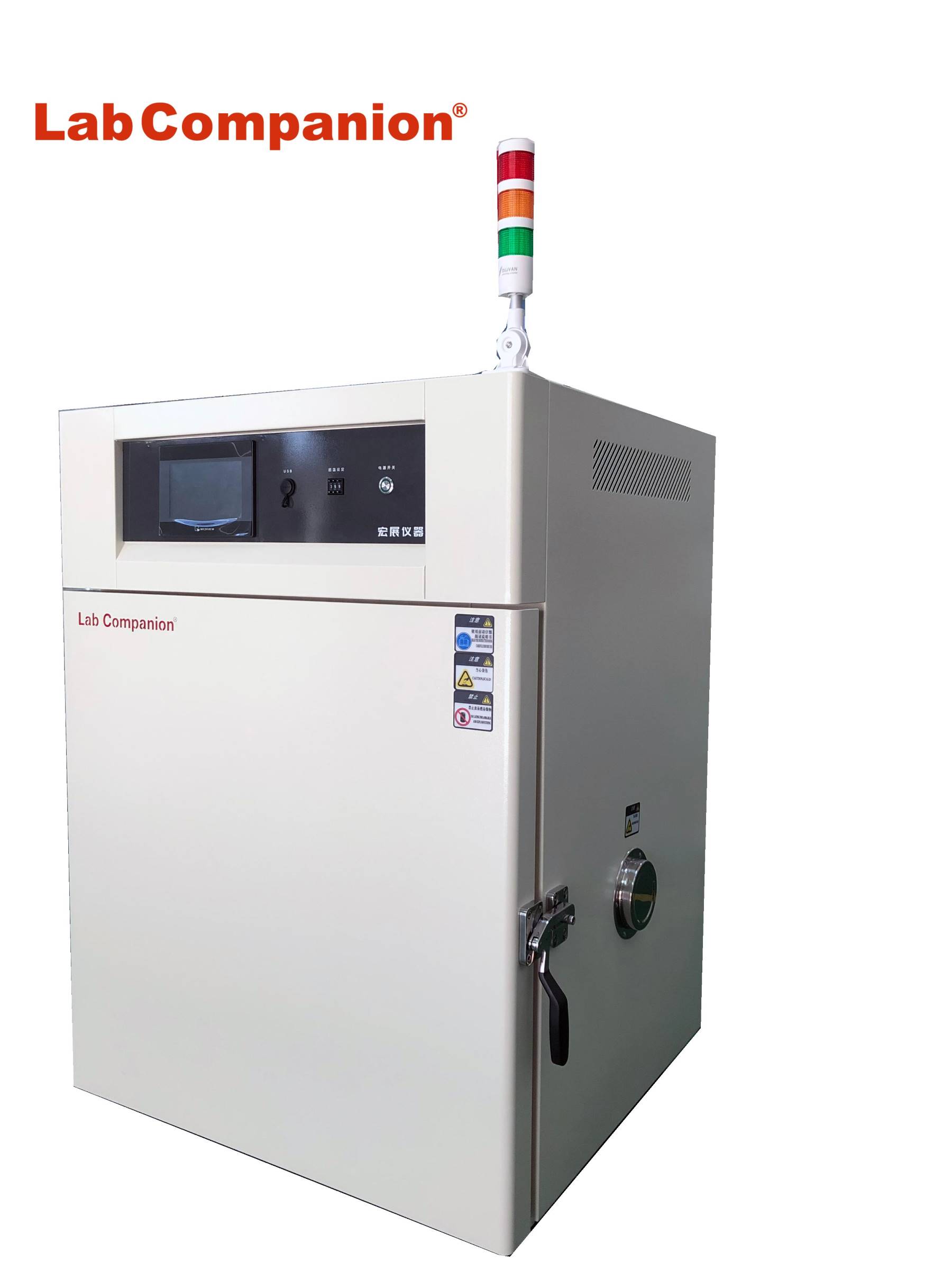

3. Industrial Oven

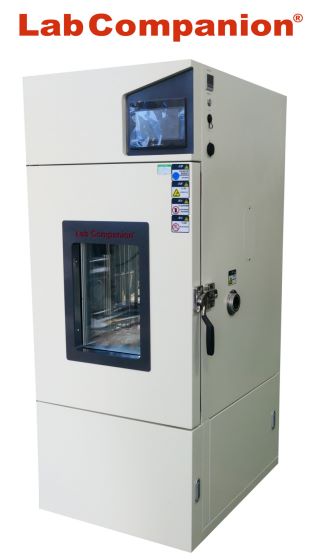

4. Rapid temperature cycle test chamber
