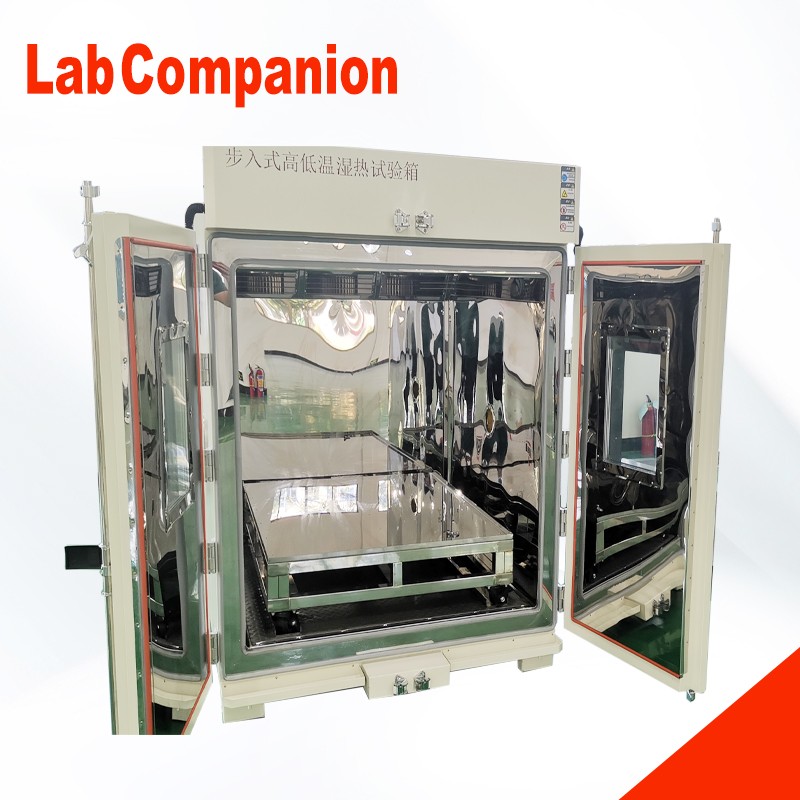

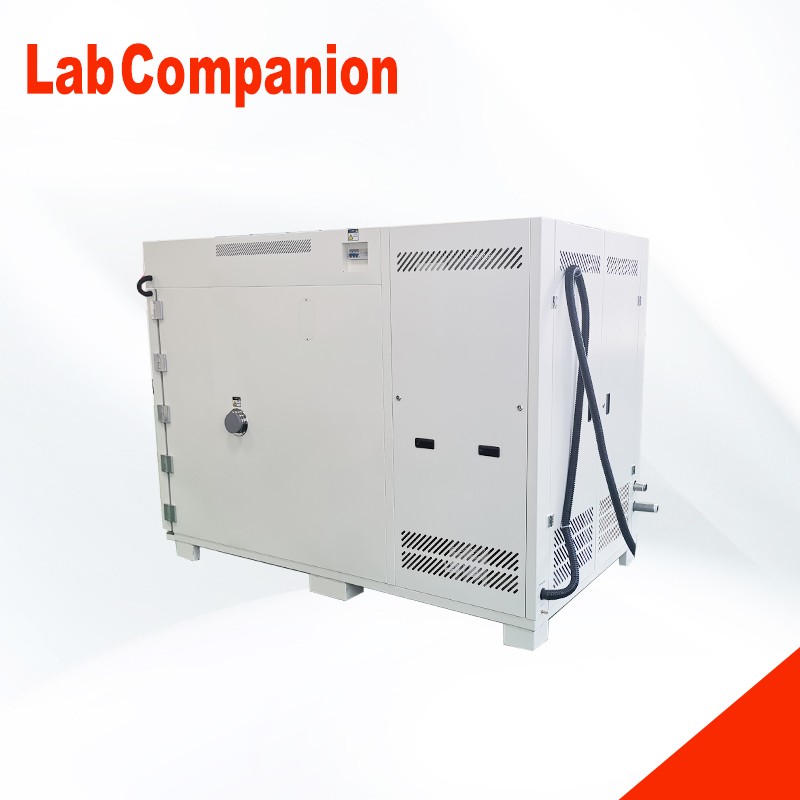

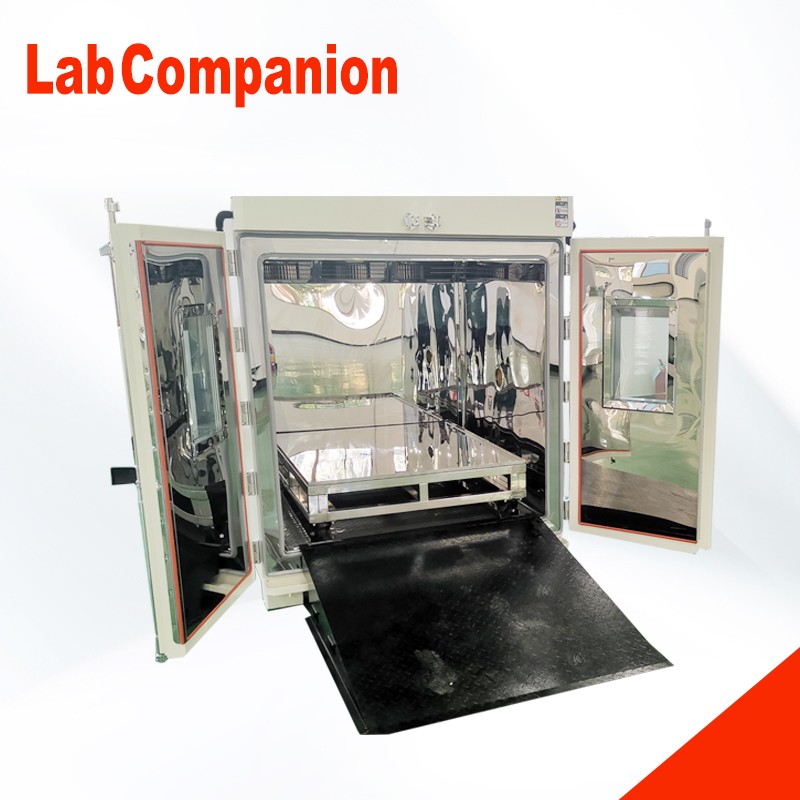

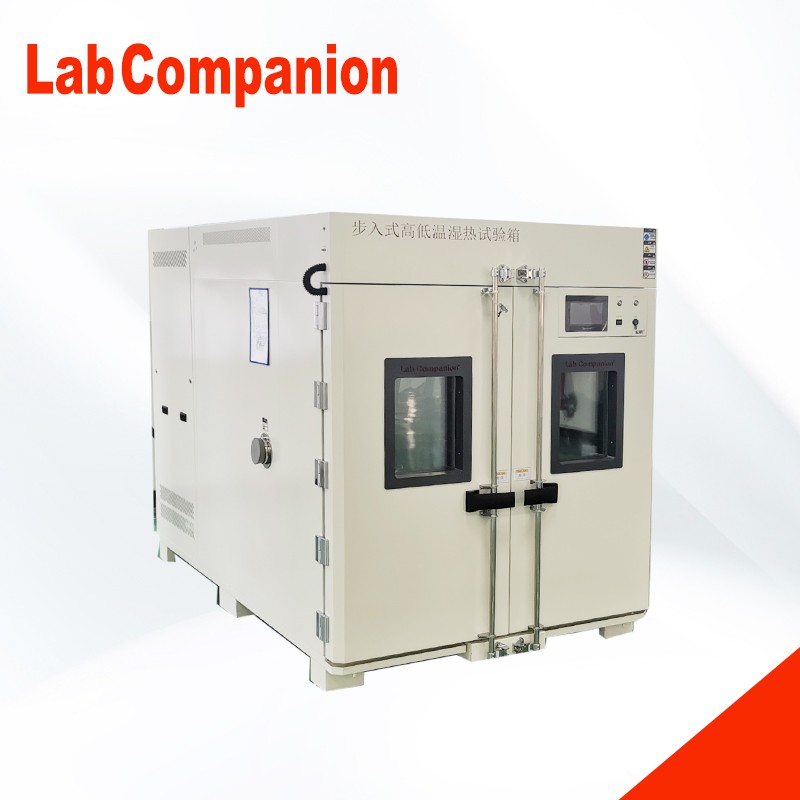

Large Volume Walk in Environmental Test Chamber

Characteristics of equipment walking in constant temperature and humidity environment laboratory

Structural design with high strength and high reliability ensures high reliability of equipment;

The working room is made of SUS304 stainless steel - www.oven.cc, with strong corrosion resistance, hot and cold fatigue function and long service life;

High density polyurethane foam insulation material or ultra-fine centrifugal glass fiber polyurethane mixed insulation layer - to ensure that the heat loss is reduced to * and the equipment has higher temperature resistance;

Surface spray treatment to ensure the durable anti-corrosion function and appearance life of the equipment;

High strength and temperature resistant silicone rubber sealing strip ensures high sealing performance of equipment door;

A variety of optional functions (test hole, recorder, test cable, etc.) ensure the user's multiple functions and test needs;

Large area electric frost proof observation window and built-in lighting can provide good observation effect;

Environmentally friendly refrigerants - make sure the equipment is more in line with your environmental protection requirements

The equipment meets the following standards

GB / T 10592 - 2008 specification for high and low temperature test chambers

GB / T 10586 - 2006 technical conditions of hygrothermal test chamber

GB / T 2423.1-2008 environmental testing for electrical and electronic products Part 2: Test methods test a: low temperature

GB / T 2423.2-2008 environmental testing for electrical and electronic products Part 2: Test methods test B: high temperature

GB / T 2423.3-2006 environmental testing for electrical and electronic products Part 2: Test methods Test cab: constant humidity test

GB / T 2423.4-2008 environmental testing for electrical and electronic products Part 2: Test methods Test DB: alternating damp heat (12h 12h cycle)

GB / T 5170.1-2008 inspection methods for environmental testing equipment for electrical and electronic products general principles

GJB 150.3a-2009 Laboratory environmental test methods for military equipment Part 3: high temperature test

GJB 150.4a-2009 Laboratory environmental test methods for military equipment Part 4: low temperature test

GJB 150.9a-2009 Laboratory environmental test methods for military equipment Part 9: hygrothermal test

Large Volume Walk in Environmental Test Chamber

Touch type programmable temperature and humidity controller

It is temperature and humidity programmable controller which equips with the general control, heating and cooling function by supporting high definition TFT-LCD touch screen and SD card.

Performance：

High accuracy

Precision control with 18bit A/D convertor

TEMP. : ±0.1% of full scale ±1 digit

HUMI. : ±1.0% of full scale ±1digit

      Optimizing PID group

Precision control by 6 groups of TEMP./HUMI. and 3 group of temperature only

      Specialized controller

As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV

     Specialized humidity control

Humidity control algorithm implements a stable control according to the equipment size。

      Heating cooling control

Separated hardware

Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
