Lab Companion's vibration and temperature test chamber (CV/TV type), which works with both vertical and horizontal shakers, is widely accepted by users:

Because they can adapt to all kinds of shaking tables

Because it has many test modes (high temperature, low temperature, temperature change, temperature and humidity)

Because of their consistency with all Lab Companion climate test chamber series

These test chambers are manufactured according to specifications and are specially designed for vibration and combined temperature, vibration and humidity tests.

The volume of the test chamber is optimized according to the geometric shape, property, mass and heat dissipation of the part to be tested, and the factor of shaking table is considered.

These test chambers meet the relevant test standards.

They benefit from Lab Companion expertise, which integrates ventilation, refrigeration units, circuit boards, Platinum navigation control software, and more. These are the basis of our manufacturing equipment.

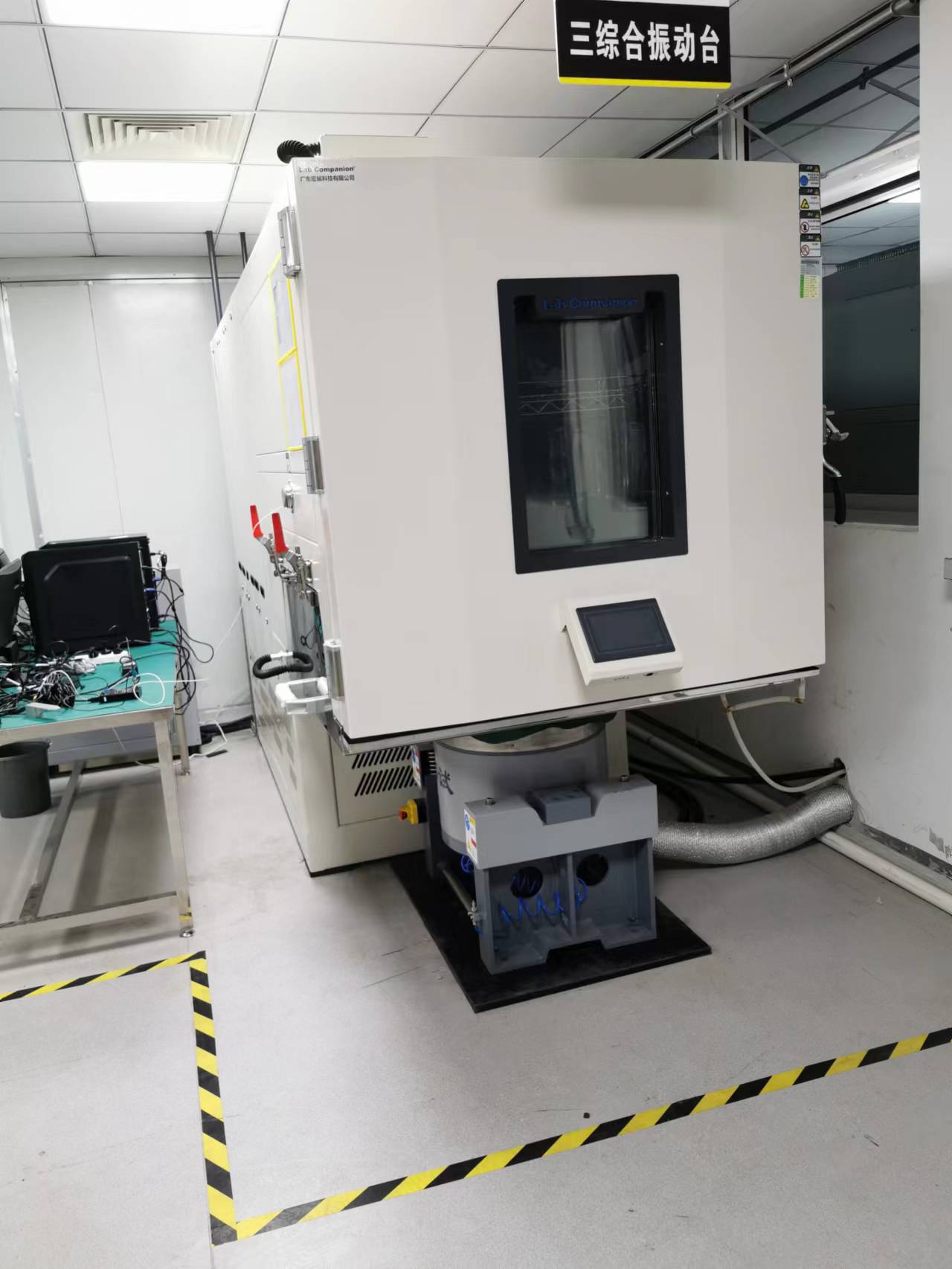

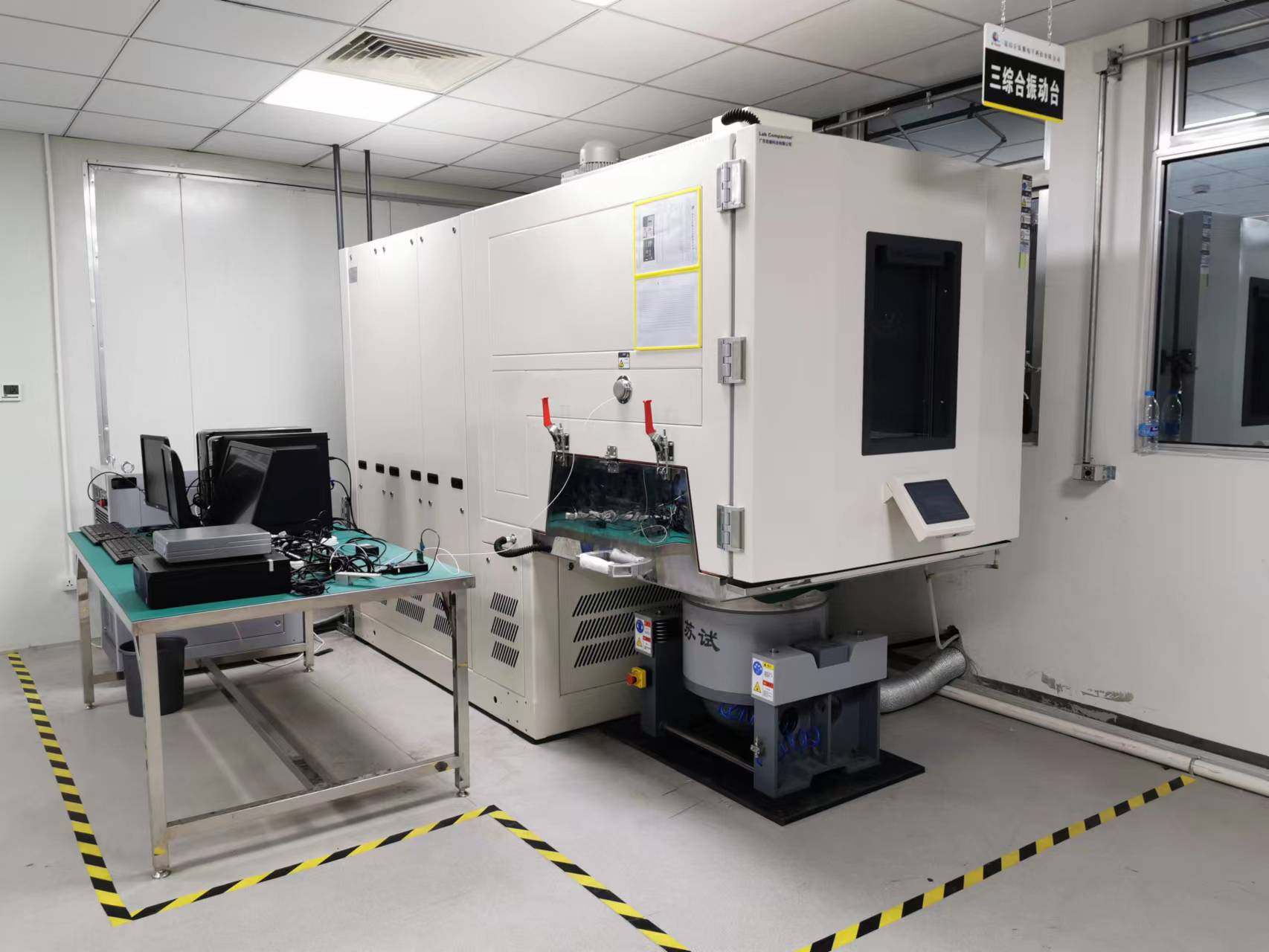

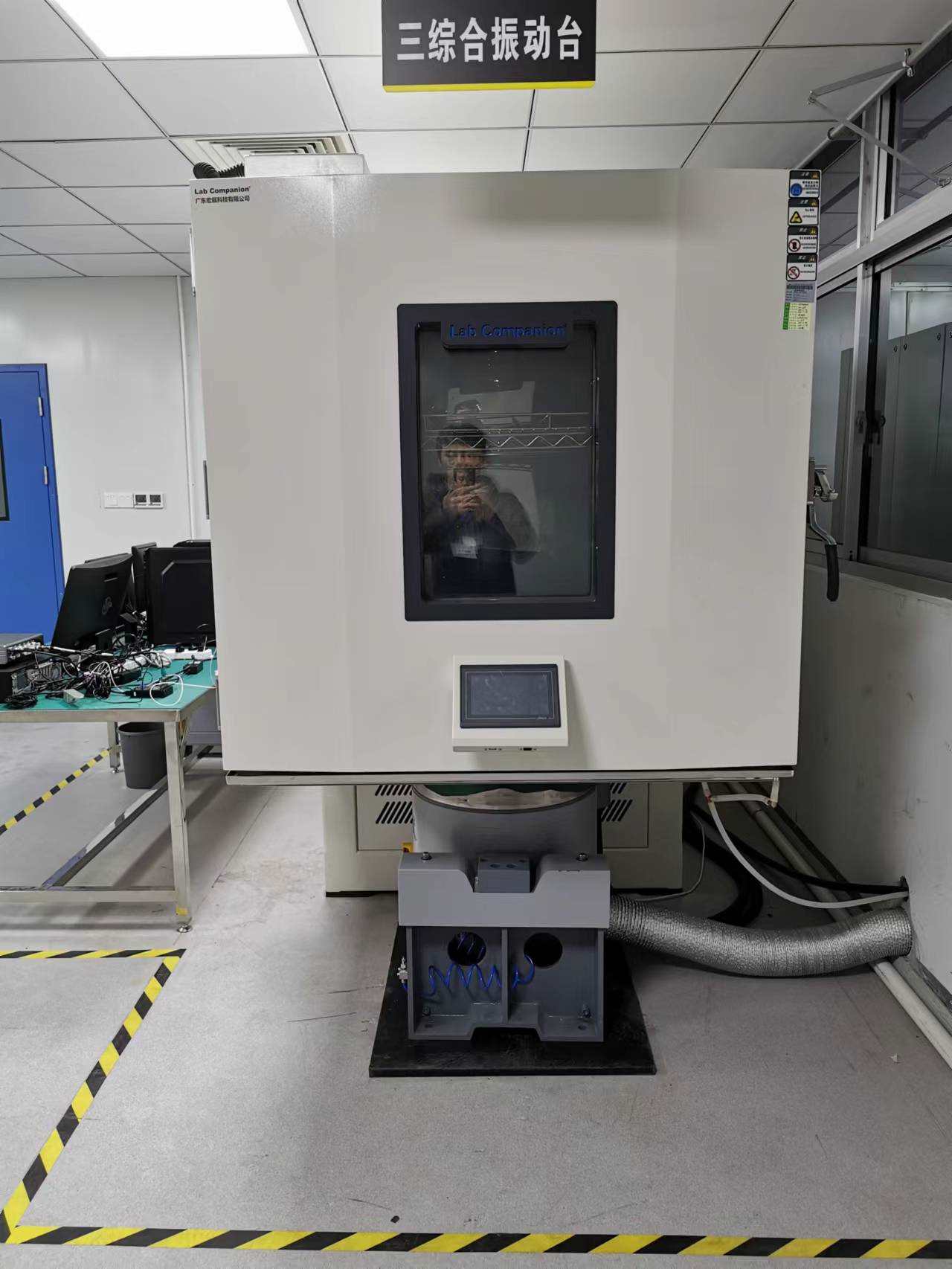

The flexibility of the manufacturing process allows us to mount the test chamber onto the lift platform. The position of the shaking table can be fixed, and the test chamber is placed above it. The horizontal moving system is arranged under the lifting table to make the test chamber move horizontally and work with the vertical shaking table and the horizontal sliding table respectively. The test chamber can also work alone after installing the bottom plate without holes.

To meet these characteristics, our manufacturing process uses the drawer principle to ensure air tightness between the shaker and the test chamber, and can be adapted to a variety of shaker forms (vertical shaker or horizontal slide).

After the blind plate is installed as the base plate of the test chamber, the test chamber can also be operated separately in a conventional manner.

    Temperature, humidity and vibration three comprehensive test chamber mainly for aerospace, aviation, petroleum, chemical, electronics, communications and other scientific research and production units to provide temperature and humidity change environment, in the test chamber will be electric vibration stress according to the specified period of the test on the test, for the user of the whole machine (or components), electrical appliances, instruments, materials for temperature and humidity, vibration comprehensive stress screening test. In order to assess the adaptability of the test product or to evaluate the behavior of the test product.

    Temperature, humidity, vibration comprehensive stress test system (three comprehensive test chamber), temperature, humidity climate stress test and vibration and other mechanical stress test integrated. When the test system is working, the stress (high temperature or low temperature, temperature change), temperature stress, vibration stress and electrical stress are applied to the sample simultaneously or separately according to the prescribed combination and periodic space, which has the advantages of more realistic environmental simulation and higher test efficiency compared with a single stress effect. It has been widely used in aerospace, ships, automobiles and other electronic products for environmental adaptability, reliability assessment and evaluation, applied to the early discovery of electronic product design defects and screening of process defects.

Meet the criteria

GB/T2423.102-2001 Environmental tests for electrical and electronic products-Part 2: Test method Test: temperature (low temperature, high temperature)/low pressure vibration (sinusoidal) synthesis

GJB150.24A-2009 Military equipment laboratory environmental test method - Part 24: Temperature-humidity-vibration-altitude test

Product parameter

Model: 600L

Specifications HxWxD(cm) : 95x80x80,

Vibrator table maximum size cm: horizontal table: 400x400; Vertical table: 400x400

Temperature range: -70℃ ~ 150℃

Humidity range: 20% ~ 98%R.H (10% ~ 98%R.H; 5% ~ 98%R.H for special selection conditions).

Temperature/humidity stability: ±0.5℃,±2%.

Temperature/humidity uniformity: ±1℃,±2%.

Temperature and humidity deviation: ≤±2℃/±3%RH.

Heating time: about 3 ~ 4℃/min.

Cooling time: about 0.7 ° C ~ 1 ° C /min (special requirements can be customized: fast temperature variation 5 ° C ~ 25 ° C /min, linear/nonlinear adjustable).

Inner chamber: SUS304#8K mirror stainless steel plate.

Outer chamber: high quality cold rolled steel plate, electrostatic spray after anti-rust treatment.

Insulation material: polyurethane foam + glass fiber.

Controller system: self-developed temperature and humidity control system.

Display: 7-inch, 800x480 dot-matrix true color LCD touch screen.

Setting mode: English and Chinese menu (switch), touch screen input mode.

Program capacity: 250 groups /12500 segments / 32000 cycles per group.

Display resolution: Temperature 0.1℃, humidity 0.1%RH, time 1S.

Temperature measurement: PT100 platinum resistor.

Humidity measurement: wet and dry bulb.

Communication function: Standard: USB,RS-232C interface, optional: remote control function.

Recording function: Sampling period 3S to 60S arbitrary setting.

Refrigeration system: France (Taikang) fully enclosed compressor unit or Germany (Bitzer) semi-enclosed high-efficiency compressor.

Refrigerant: Environmental refrigerant: single-stage R-404A, cascade R-23.

Cooling: Air-cooled or water-cooled.

Water supply: magnetic pump water supply.

Water storage capacity: 30L.

Test water: deionized water or distilled water.

Heating system: stainless fin heating tube heating air.

Humidification system: stainless steel sheath type electric heating steam generation mode. (Features: excellent sealing performance, effectively prevent steam loss).

Safety protection: compressor overpressure, overload, overheating, overcurrent protection; Overtemperature protection; Leakage protection; Fan overload protection; Phase sequence protection; Humidification and dry burning protection; Water tank warning system.

Standard configuration: Viewing window; Window observation light; Test hole (￠50x1 only); Test rack (2 sets); Overtemperature protector; Time signal interface.

Optional accessories: paper or paperless recorder; Special specification test hole; Special size sample rack; 10 inch LCD touch screen.

Power supply: AC3￠5W380V50HZ.

The detailed specifications are subject to the corresponding specifications.
