Lab Companion: Complete the 40G/100G Optical Module Thermal Cycle Test in 7 to 14 Seconds

Lab Companion: Complete the 40G/100G Optical Module Thermal Cycle Test in 7 to 14 Seconds

April 26, 2020

Lab Companion: Complete the 40G/100G Optical Module Thermal Cycle Test in 7 to 14 Seconds

On-line temperature test chamber launched by Lab Companion in the early stage can complete thermal cycle in 10 seconds. On-line temperature test chamber free of frost, the product does not frost because its large wide glass door with operating holes which helps the window be clear even after long-term operation. It has high production efficiency: taking 10G SFP+ as an example, 10 seconds to test one, a working day(8 hours) can produce 2880 modules. The test temperature range is -40~85 degrees. Because this product is developed for the data center module, and the temperature of the data center environment is relatively stable, so Lab Companion focus the development of this product on the temperature cycle speed, to further help customers improve the test efficiency. This product has obtained the bulk purchase of mainstream optical module manufacturers at home and abroad.

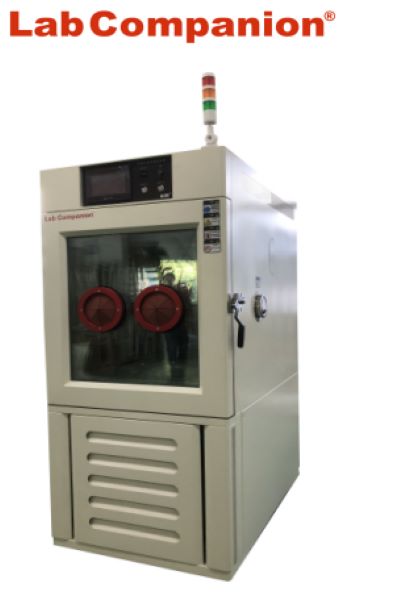

on-line temperature test chamber

Dragon temperature forcing system--Froilabo recently launched by Lab Companion is specially designed for 40G/100G optical modules and chips. It can test the industrial temperature of -55~125 degrees to heating or cooling, cooling for 14 seconds, but heating only requires 7 seconds. The temperature control object can be the room temperature or the surface temperature of the product, and no nitrogen is needed as a consumable. In addition, it can directly report the test data, add the robot convey or belt according to different customer needs, and fully realize the full automation of thermal cycle test.

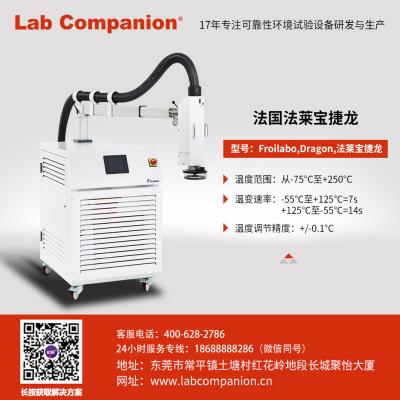

dragon temperature forcing system--Froilabo

Dragon temperature forcing system--Froilabo is a kind of test equipment that can provide high and low temperature test environment in a very short time. It use the combination of mechanical refrigeration, electric heating and compressed air, suitable for the temperature characteristics test of optoelectronic components, mechanical and electrical products and materials, and can meet the test requirements of 40G, 100G and other high-speed devices, in line with ESD protection requirements and no auxiliary means such as liquid nitrogen are needed. With powerful touch screen control system, it can display and store test data, charts and computer communication functions in real time.

Dragon temperature forcing system--Froilabo

Dragon is a fast and precise air stream temperature cycling system, from –80˚C to +250˚C, for various applications. An easy way to improve the reliability of electronic components and materials with thermal testing and characterization.

Exceptional performances:

Temperature from –80˚C to +250˚C

Adjustable airflow from 2.2 to 8.4 l/s

Fast ramping: -55˚C to +125˚C = 7s; +125˚C to -55˚C =14s

Three working methods: manual, automatic or programmable.

Compatible with automatic test equipment (ATE).

Continuous use (24/7).

In appliance with the international standard MIL-STD 883 and 750 temperature cycling (method 1010 & 1051) and JEDEC

Thermal test enclosure to fit for any demand.
