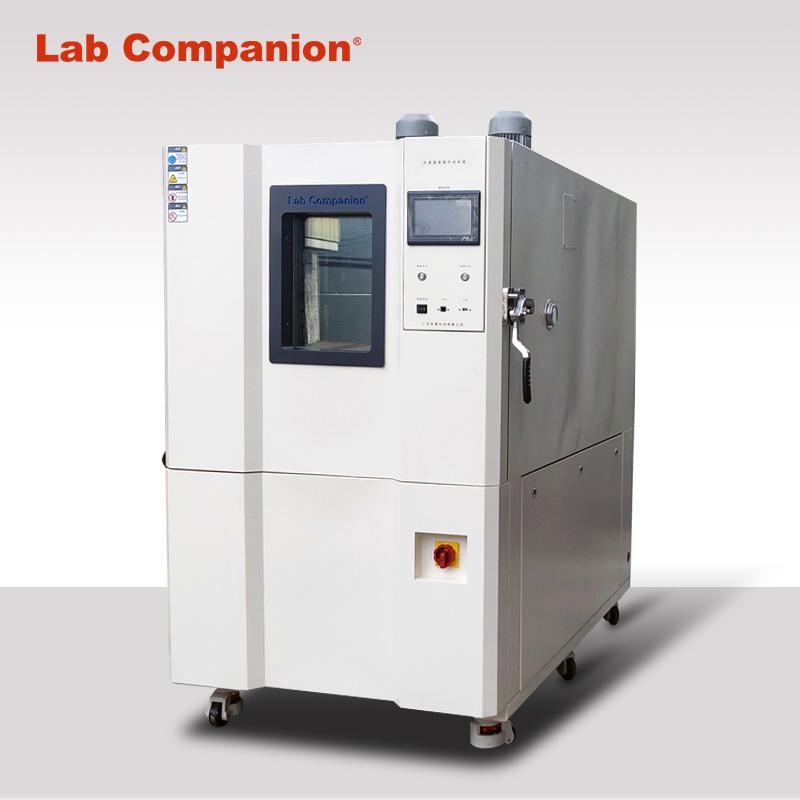

Rapid temperature cycling test chamber is a high performance test chamber, which can accelerate the simulation of external temperature changes, simulating changes in the product's exposure to the external environment for several years or even decades in a short period of time, thereby estimating the product's service life and environment, and analyze the product's performance through relatively fast speed.
Item No :
TCOrder(MOQ) :
1Color :
WhiteLead Time :
30 working days
Industrial Rapid Temperature Cycling Test Chamber
| Volume （L） | Internal Size (W*H*D) mm |
Temperature range | Humidity range | Heating rate （unloaded） |
Cooling Rate （unloaded） |
| 64L | W400*H400*D400 | -70~150℃ | 20~98% (20~95℃） | 3℃/min | 3℃/min； 5℃/min； 10℃/min； 15℃/min； 20℃/min |
| 100L | W500*H500*D400 | ||||
| 150L | W500*H600*D500 | ||||
| 340L | W580*H750*D765 | ||||
| 600L | W800*H950*D800 | ||||
| 1000L | W1100*H950*D950 | ||||
| Optional： cooling rate：linear、nonlinear | |||||
380V Rapid Rate Temperature cycling chamber

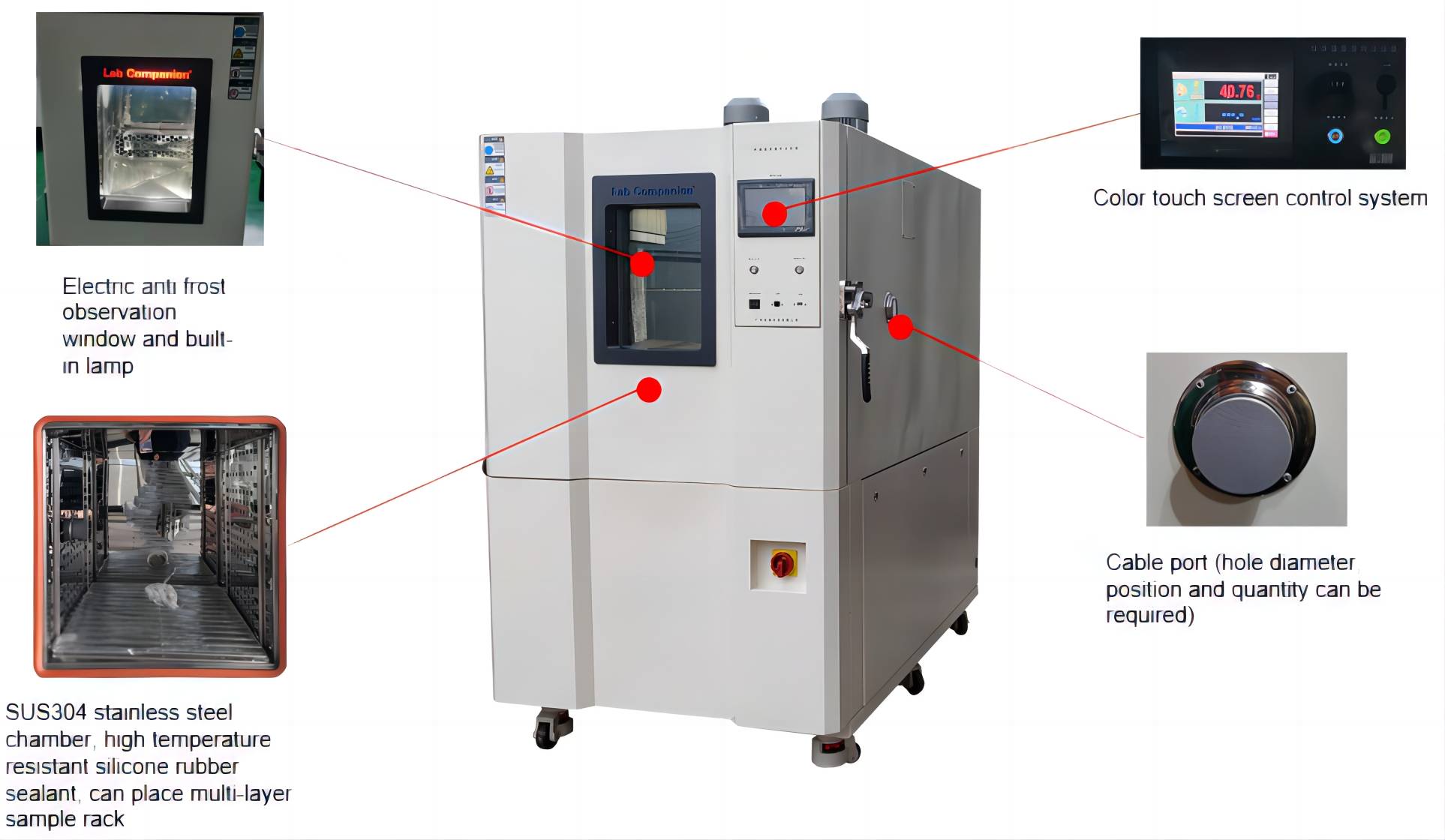

❉Fast change rates of 10°C/minute or more：the faster cycle times can be used to meet more aggressive test methods that require thermal stress during transitions. Significant test time can be saved in comples, as well.ting test
❉Full thermal break around doorframe
❉One 50mm (2”) diameter cable port on left, with flexible silicone plug
❉Three levels of overheat protection, plus overcool protection
Stability Chamber Temperature and Humidity
Intelligent Controller Environmental Chamber
Touch type programmable temperature and humidity controller
It is temperature and humidity programmable controller which equips with the general control, heating and cooling function by supporting high definition TFT-LCD touch screen and SD card.
Performance：
High accuracy
Precision control with 18bit A/D convertor
TEMP. : ±0.1% of full scale ±1 digit
HUMI. : ±1.0% of full scale ±1digit
Optimizing PID group
Precision control by 6 groups of TEMP./HUMI. and 3 group of temperature only
Specialized controller
As a specialized controller for temperature and humidity, synchronized control system with PT-PT, PT-DCV
Specialized humidity control
Humidity control algorithm implements a stable control according to the equipment size。
Heating cooling control
Configuration separated by display, control, and input / output board
Available to mount panel mount and VESA mount
Rapid temperature cycling test chamber is a high performance test chamber, which can accelerate the simulation of external temperature changes, simulating changes in the product's exposure to the external environment for several years or even decades in a short period of time, thereby estimating the product's service life and environment, and analyze the product's performance through relatively fast speed.
read More
Rapid temperature change test chamber is suitable for instruments, chemistry, plastic, electronics, food, clothing, vehicles, metal, chemical, building materials, aerospace and other parts or machine. With rapid temperature change, gradient adaptability test and temperature stress screening test functions, helps to test the performance and change under the proposed conditions, for the purposes of product design, improvement, identification and factory inspection.
read More
