Heat Pipe Test

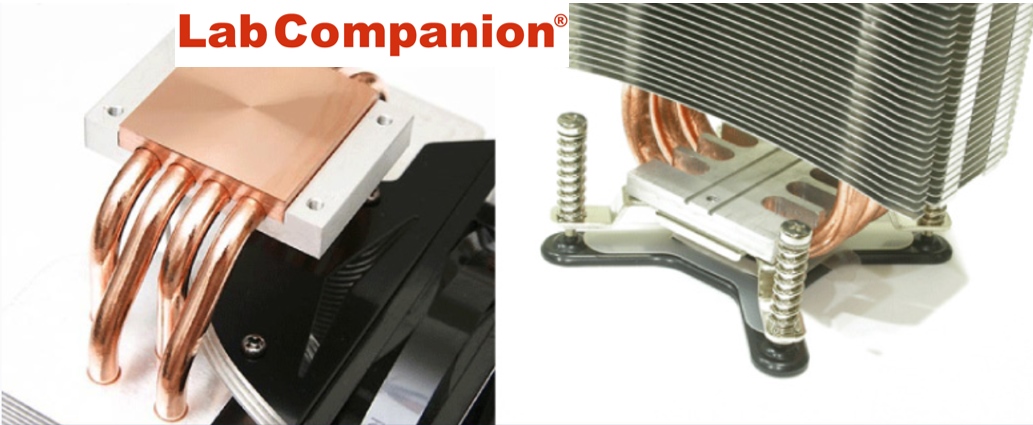

Description: Using capillary action and phase change, the heat transfer speed of the heat pipe can be hundreds of times that of copper and silver, which is commonly used in computer cooling or is not suitable for fan cooling electronic products.
Thermal duct reliability test conditions:
High temperature stress screening test :150℃/24 hours
Temperature cycle test :120'C(10min)--30℃C(10min), Ramp:0.5℃,10 cycles 125°C(60min)--40°C (60min) Ramp: 2.75°C,10 cycles

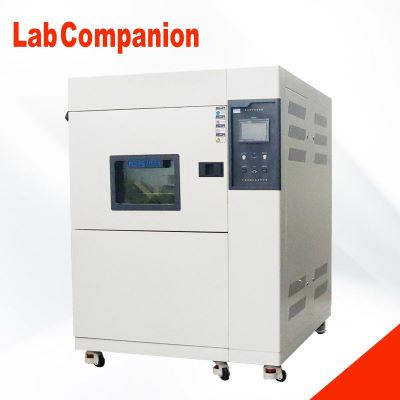

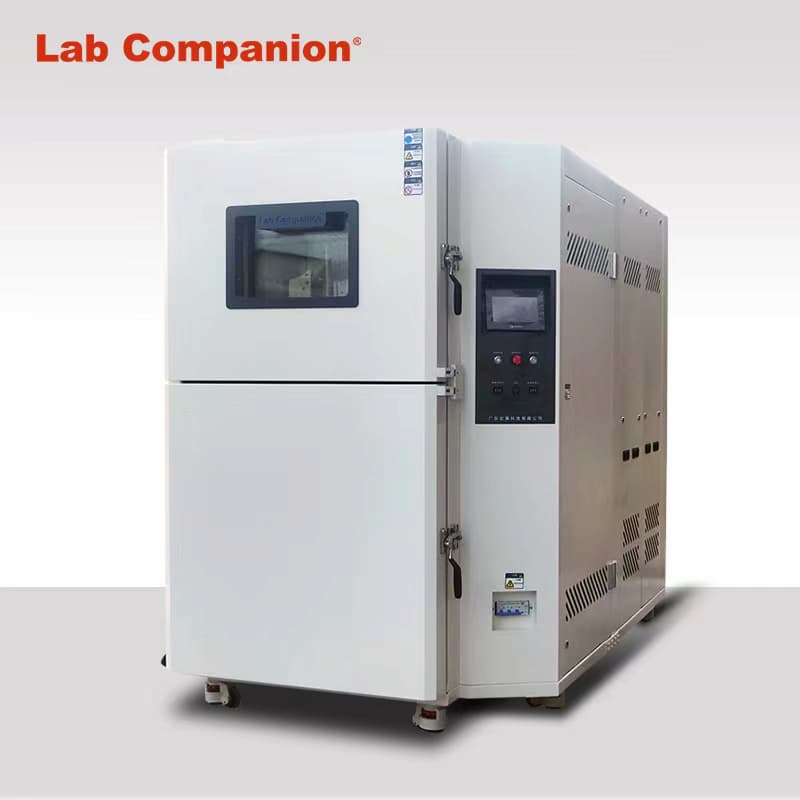

Thermal shock test :
120°C(2min)-- 30°C(2min), 250 cycles
125°C(5min)-- 40'C(5min), 250 cycles
100°C(5min)-- 50°C(5min), 2000 cycles(200 cycle check once)

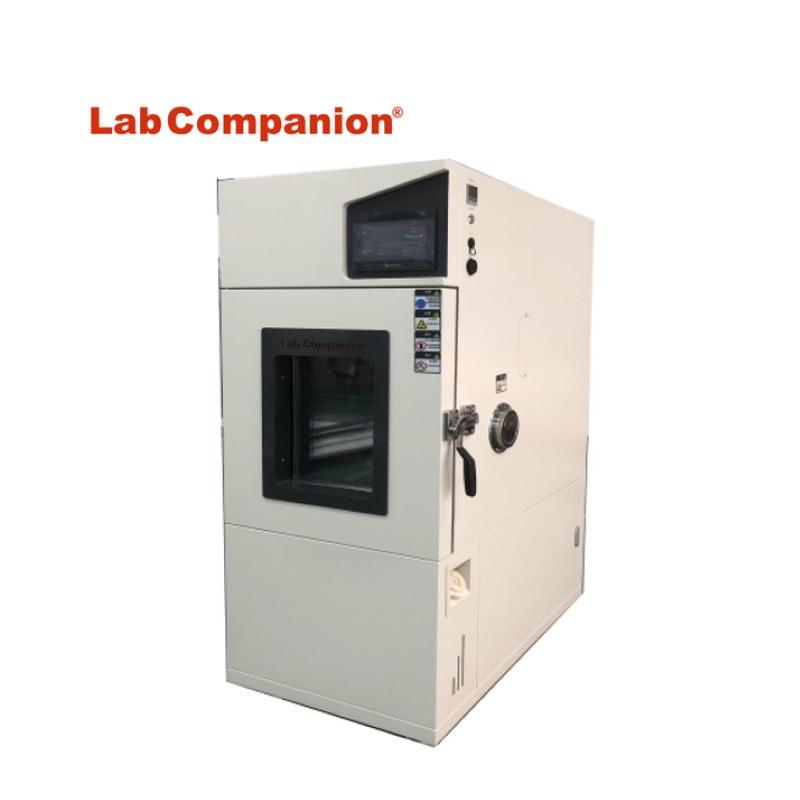

High temperature and high humidity test :
85°C/85%R.H./1000 hours
Accelerated aging test :
110°C/85%RH/264h
Other heat pipe test items:
Salt spray test, vibration test, random vibration test, mechanical impact test, performance test
