Temperature Cycling Test
Temperature Cycling, in order to simulate the temperature conditions encountered by different electronic components in the actual use environment, changing the ambient temperature difference range and rapid rise and fall temperature change can provide a more stringent test environment, but it must be noted that additional effects may be caused to material testing. For the relevant international standard test conditions of temperature cycle test, there are two ways to set the temperature change. Macroshow Technology provides an intuitive setting interface, which is convenient for users to set according to the specification. You can choose the total Ramp time or set the rise and cooling rate with the temperature change rate per minute.
List of international specifications for temperature cycling tests:
Total Ramp time (min) : JESD22-A104, MIL-STD-8831, CR200315
Temperature variation per minute (℃/min) : IEC 60749, IPC-9701, Bellcore-GR-468, MIL-2164
Example: Lead-free solder joint reliability test
Instructions: For the reliability test of lead-free solder joints, different test conditions will also be different in terms of the temperature change setting mode. For example, (JEDEC JESD22-A104) will specify the temperature change time with the total time [10min], while other conditions will specify the temperature change rate with [10℃/ min], such as from 100 ℃ to 0℃. With a temperature change of 10 degrees per minute, that is to say, the total temperature change time is 10 minutes.
100℃ [10min]←→0℃[10min], Ramp: 10℃/ min, 6500cycle
-40℃[5min]←→125℃ [5min], Ramp: 10min,
200cycle check once, 2000cycle tensile test [JEDEC JESD22-A104]
-40℃(15min)←→125℃(15min), Ramp: 15min, 2000cycle
Example: LED Automotive lighting (High Power LED)
The temperature cycle test condition of LED car lights is -40 ° C to 100 ° C for 30 minutes, the total temperature change time is 5 minutes, if converted into temperature change rate, it is 28 degrees per minute (28 ° C /min).
Test conditions: -40℃(30min)←→100℃(30min), Ramp: 5min
Reliability Environmental Test Equipment Combined with Multi-track Temperature Control and Detection Applications
Environmental test equipment includes constant temperature and humidity test chamber, hot and cold shock test chamber, temperature cycle test chamber, no wind oven... These test equipment are all in the simulated environment of temperature, humidity impact on the product, to find out the design, production, storage, transportation, use process may appear product defects, previously only simulated test area air temperature, but in the new international standards and the new test conditions of the international factory, the beginning of the requirements based on the air temperature is not. It is the surface temperature of the test product. In addition, the surface temperature should also be measured and recorded synchronously during the test process for post-test analysis. The relevant environmental test equipment should be combined with surface temperature control and the application of surface temperature measurement is summarized as follows.
Constant temperature and humidity test chamber test table temperature detection application:
Description: Constant temperature and humidity test chamber in the test process, combined with multi-track temperature detection, high temperature and humidity, condensation (condensation), combined temperature and humidity, slow temperature cycle... During the test process, the sensor is affixed to the surface of the test product, which can be used to measure the surface temperature or internal temperature of the test product. Through this multi-track temperature detection module, the set conditions, actual temperature and humidity, the surface temperature of the test product, and the same measurement and record can be integrated into a synchronous curve file for subsequent storage and analysis.
Thermal shock test chamber surface temperature control and detection applications: [dwell time based on surface temperature control], [temperature shock process surface temperature measurement record]
Description: The 8-rail temperature sensor is attached to the surface of the test product and applied to the temperature shock process. The dwell time can be counted backward according to the arrival of the surface temperature. During the impact process, the setting conditions, the test temperature, the surface temperature of the test product, and the same measurement and record can be integrated into a synchronous curve.
Temperature cycle test chamber surface temperature control and detection application: [Temperature cycle temperature variability and dwell time are controlled according to the test product surface temperature]
Description: Temperature cycle test is different from temperature shock test. Temperature shock test uses the maximum energy of the system to carry out temperature changes between high and low temperatures, and its temperature change rate is as high as 30 ~ 40℃ /min. Temperature cycle test requires a process of high and low temperature changes, and its temperature variability can be set and controlled. However, the new specification and the test conditions of international manufacturers have begun to require that the temperature variability refers to the surface temperature of the test product, not the air temperature, and the current temperature cycle specification temperature variability control. According to the test product surface specifications are [JEDEC-22A-104F, IEC60749-25, IPC9701, ISO16750, AEC-Q100, LV124, GMW3172]... In addition, the residence time of high and low temperatures can also be based on the test surface, rather than the air temperature.
Temperature cyclic stress screening test chamber surface temperature control and detection applications:
Instructions: Temperature cycle stress screening testing machine, combined with multi-rail temperature measurement, in the temperature variability of stress screening, you can choose to use [air temperature] or [test product surface temperature] to control the temperature variability, in addition, in the high and low temperature resident process, the time reciprocal can also be controlled according to the surface of the test product. In accordance with the relevant specifications (GJB1032, IEST) and the requirements of international organizations, according to the definition of GJB1032 in the stress screening residence time and temperature measurement point, 1. The number of thermocouples fixed on the product shall not be less than 3, and the temperature measurement point of the cooling system shall not be less than 6, 2. Ensure that the temperature of 2/3 thermocouples on the product is set at ±10℃, in addition, according to the requirements of IEST(International Association for Environmental Science and Technology), the residence time should reach the temperature stabilization time plus 5min or performance test time.
No air oven (natural convection test chamber) surface temperature detection application:
Description: Through the combination of a windless oven (natural convection test chamber) and a multi-track temperature detection module, the temperature environment without fan (natural convection) is generated, and the relevant temperature detection test is integrated. This solution can be applied to the actual ambient temperature test of electronic products (such as: Cloud server, 5G, electric vehicle interior, indoor without air conditioning environment, solar inverter, large LCD TV, home Internet sharer, office 3C, laptop, desktop, game console....... Etc.).
Purpose of Temperature Shock Test
Reliability environmental test In addition to high Temperature, low temperature, high temperature and high humidity, temperature and humidity combined cycle, temperature Shock (cold and hot Shock) is also a common test project, temperature shock Testing (Thermal Shock Testing, Temperature Shock Testing, referred to as: TST), the purpose of the temperature shock test is to find out the design and process defects of the product through the severe temperature changes that exceed the natural environment [temperature variability greater than 20℃/min, and even up to 30 ~ 40℃/min], but there is often a situation where the temperature cycle is confused with the temperature shock. "Temperature cycle" means that in the process of high and low temperature change, the temperature change rate is specified and controlled; The temperature change rate of "temperature shock" (hot and cold shock) is not specified (Ramp Time), mainly requires Recovery Time, according to the IEC specification, there are three kinds of temperature cycle test methods [Na, Nb, NC]. Thermal shock is one of the three [Na] test items [rapid temperature change with specified conversion time; medium: air], the main parameters of temperature shock (thermal shock) are: High temperature and low temperature conditions, residence time, return time, number of cycles, in high and low temperature conditions and residence time the current new specification will be based on the surface temperature of the test product, rather than the air temperature in the test area of the test equipment.
Thermal shock test chamber:
It is used to test the material structure or composite material, in an instant under the continuous environment of extremely high temperature and extremely low temperature, the degree of tolerance, so as to test the chemical changes or physical damage caused by thermal expansion and contraction in the shortest time, the applicable objects include metal, plastic, rubber, electronic.... Such materials can be used as the basis or reference for the improvement of its products.
The cold and thermal shock (temperature shock) test process can identify the following product defects:
Different expansion coefficient caused by the stripping of the joint
Water enters after cracking with different expansion coefficient
Accelerated test for corrosion and short circuit caused by water infiltration
According to the international standard IEC, the following conditions are common temperature changes:
1. When the equipment is transferred from a warm indoor environment to a cold outdoor environment, or vice versa
2. When the equipment is suddenly cooled by rain or cold water
3. Installed in the outside airborne equipment (such as: automobile, 5G, outdoor monitoring system, solar energy)
4. Under certain transport [car, ship, air] and storage conditions [non-air-conditioned warehouse]
Temperature impact can be divided into two types of two-box impact and three-box impact:
Instructions: Temperature impact is common [high temperature → low temperature, low temperature → high temperature] way, this way is also called [two-box impact], another so-called [three-box impact], the process is [high temperature → normal temperature → low temperature, low temperature → normal temperature → high temperature], inserted between the high temperature and low temperature, to avoid adding a buffer between the two extreme temperatures. If you look at the specifications and test conditions, there is usually a normal temperature condition, the high and low temperature will be extremely high and very low, in the military specifications and vehicle regulations will see that there is a normal temperature impact condition.
IEC temperature shock test conditions:
High temperature: 30, 40, 55, 70, 85, 100, 125, 155℃
Low temperature: 5, -5, -10, -25, -40, -55, -65℃
Residence time: 10min, 30min, 1hr, 2hr, 3hr(if not specified, 3hr)
Temperature shock residence time description:
The Dwell Time of temperature shock in addition to the requirements of the specification, some will depend on the weight of the test product and the surface temperature of the test product
The specifications of the thermal shock residence time according to weight are:
GJB360A-96-107, MIL-202F-107, EIAJ ED4701/100, JASO-D001... Let's wait.
The thermal shock residence time is based on the surface temperature control specifications: MIL-STD-883K, MIL-STD-202H(air above the test object)
MIL883K-2016 requirements for [temperature shock] specification:
1. After the air temperature reaches the set value, the surface of the test product needs to arrive within 16 minutes (residence time is not less than 10min).
2. High temperature and low temperature impact are more than the set value, but not more than 10℃.
Follow-up action of IEC temperature shock test
Reason: The IEC temperature test method is best considered as part of a series of tests, because some failures may not be immediately apparent after the test method is completed.
Follow-up test items:
IEC60068-2-17 Tightness test
IEC60068-2-6 Sinusoidal vibration
IEC60068-2-78 Steady Humid heat
IEC60068-2-30 Hot and humid temperature cycle
Tin whisker (whisker) temperature impact test conditions finishing:
1. - 55 (+ 0 / -) 10 ℃ please - 85 (+ / - 0) 10 ℃, 20 min / 1 cycle (500 cycle check again)
1000 cycles, 1500 cycles, 2000 cycles, 3000 cycles
2. 85(±5)℃←→-40(+5/-15)℃, 20min/1cycle, 500cycles
3.-35±5℃←→125±5℃, dwell for 7min, 500±4cycles
4. - 55 (+ 0 / -) 10 ℃ please - 80 (+ / - 0) 10 ℃, 7 min reside, 20 min / 1 cycle, 1000 cycles
Thermal shock testing machine product features:
Defrosting frequency: defrosting every 600cycles [Test condition: +150℃ ~ -55℃]
Load adjustment function: The system can automatically adjust according to the load of the product to be tested, without manual setting
High weight load: Before the equipment leaves the factory, use aluminum IC(7.5Kg) for load simulation to confirm that the equipment can meet the demand
Temperature shock Sensor location: The air outlet and return air outlet in the test area can be selected or both can be installed, which conforms to the MIL-STD test specification. In addition to meeting the requirements of the specification, it is also closer to the impact effect of the test product during the test, reducing the test uncertainty and distribution uniformity.
VMR- plate Temperature Cycle Transient Break Test
Temperature cycle test is one of the most commonly used methods for reliability and life test of lead-free welding materials and SMD parts. It evaluates the adhesive parts and solder joints on the surface of SMD, and causes plastic deformation and mechanical fatigue of solder joints materials under the fatigue effect of cold and hot temperature cycle with controlled temperature variability, so as to understand the potential hazards and failure factors of solder joints and SMD. The Daisy chain diagram is connected between the parts and the solder joints. The test process detects the on-off and on-off between the lines, parts and solder joints through the high-speed instantaneous break measuring system, which meets the demand for the reliability test of electrical connections to evaluate whether the solder joints, tin balls and parts fail. This test is not really simulated. Its purpose is to apply severe stress and accelerate the aging factor on the object to be tested to confirm whether the product is designed or manufactured correctly, and then evaluate the thermal fatigue life of the component solder joints. The reliability test of the electrical high-speed instantaneous break connection has become a key link to ensure the normal operation of the electronic system and avoid the failure of the electrical connection caused by the failure of the immature system. The resistance changes over a short period of time were observed under accelerated temperature changes and vibration tests.
Purpose:
1. Ensure that products designed, manufactured and assembled meet predetermined requirements
2. Relaxation of solder joint creep stress and SMD fracture failure caused by thermal expansion difference
3. The maximum test temperature of the temperature cycle should be 25℃ lower than the Tg temperature of the PCB material, so as to avoid more than one damage mechanism of the substitute test product
4. Temperature variability at 20℃/min is a temperature cycle, and temperature variability above 20℃/min is a temperature shock
5. The welding joint dynamic measurement interval does not exceed 1min
6. The high temperature and low temperature residence time for failure determination needs to be measured in 5 strokes
Requirements:
1. The total temperature time of the test product is within the range of the rated maximum temperature and the minimum temperature, and the length of the residence time is very important for the accelerated test, because the residence time is not enough during the accelerated test, which will make the creep process incomplete
2. The resident temperature must be higher than Tmax temperature and lower than Tmin temperature
Refer to the list of specifications:
IPC-9701, IPC650-2.6.26, IPC-SM-785, IPCD-279, J-STD-001, J-STD-002, J-STD-003, JESD22-A104, JESD22-B111, JESD22-B113, JESD22-B117 , SJR-01
Industrial Computer Reliability Testing
Industrial computers can be divided into three categories according to their application attributes:
(1) Board class: includes Single Board Computer (SBC), Embedded board (Embedded Board), Black Plane, PC/104 module. (2) Subsystem class: includes single-board computers, boards, chassis, power supplies and other peripherals combined into operational subsystems, such as industrial servers and workstations. (3) System integration solutions: refers to a set of systems developed for a professional field, including the required software and hardware and surrounding, such as automatic teller machines (ATMs). The application of industrial computers widely covers ATM, POS, medical electronic equipment, game machines, gambling equipment, etc. The multi-field industry makes industrial computers must be able to withstand the use of sunlight, high and low temperature, wet and other environments, so the relevant reliability test is the focus of various manufacturers in the research and development test.
Common reliability tests for industrial computers:
(1) Wide temperature test
According to the actual application environment can be divided into four categories: 1. Outdoor: especially for the extreme low temperature or high temperature areas, such as northern Europe and desert countries, the temperature range can be from -50 to 70°C; 2. Enclosed space: for example, where heat sources are generated, such as next to a boiler, the high temperature range is about 70°C; 3. Mobile equipment: such as vehicle equipment, the high temperature can be up to 90°C according to the car area; 4. Special harsh environment: such as aerospace equipment, military, oil drilling equipment.
(2) Aging stress test
The temperature range is from -40°C to 85°C, and the temperature variation rate is 10 °C per minute for cyclic testing
(3) No wind high temperature test
At present, in order to prevent dust, industrial computers are planned to be closed and fanless in the mechanism design, so more and more manufacturers begin to pay attention to high temperature testing in a windless environment to ensure that high temperatures will not collapse
Note: For complete industrial computer test conditions, please consult LAB COMPANION
Accelerated Test of Die Casting at High Temperature and High Humidity
Die casting is a precision casting method, the principle is to melt the better metal [zinc, tin, lead, copper, magnesium, aluminum]... Six kinds of alloy melting, with rapid high pressure mechanical properties into the metal mold, the use of steel mold low temperature rapid solidification molding casting method, die casting is a pressure casting parts, can be manufactured into auto parts, locomotive parts, LED lamps and LED street lights, consumer electronics parts, cameras, mobile phones, communications... In order to confirm whether the die-casting parts can be satisfied with the outdoor environment for a long time and whether there will be related defects, relevant tests need to be carried out through the HAST highly accelerated life testing machine.
Common defects in die casting: cold insulation, cracks, holes
List of common specifications for die casting:
ASTM B85: Standard for pressed Film Casting of aluminum alloys
ASTM B86: Zinc and zinc aluminum alloys
ASTM B176: Copper Alloy die castings
ASTM B894: Zinc-Copper-Aluminum Alloy die casting
ASTM E155: Standard Reference Radiographs for the inspection of Aluminum & Magnesium castings
ASTM B94: Magnesium Alloy mold standard
GB5680: high manganese steel casting
GB9438: Aluminum alloy casting
GB15114: Aluminum alloy die casting
QC273: Technical specifications for automotive zinc alloy aluminum alloy copper alloy die casting parts
YL-J021201: die casting of aluminum alloy cover plate for machine cooler
Die casting test items: metallographic test, mechanical ability, bending test, hardness test, impact test, tensile test, high temperature and high humidity, chemical composition, non-damage inspection (X-ray, fluorescence), residual element analysis, surface defects, dimensional tolerance, microstructure, weight tolerance, air tightness test
Die casting Performance test - high temperature and high humidity accelerated test:
PCT condition: 120℃/100%R.H.
HAST condition: 130℃/85%R.H.
Common missing after high temperature and high humidity accelerated test of die casting:
Die casting in the manufacturing process, if the cleaning is not true, resulting in residual release agent, cutting fluid, saponification fluid on the surface... Such corrosive substances, or other pollutants, under certain temperature and humidity conditions, it is easy to accelerate oxidation or mold, die-casting test product surface with a layer of white powder or yellow, black are oxidation phenomenon.
EC-85EXT, Superior constant temperature bath (800L)Specifications
Project
Type
Series
ＥＸＴ
Function
Temperature occurs in a way
Dry ball method
Temperature range
-70 ～ + 150 ℃
Temperature variation amplitude
Below the + 100℃
± 0.3 ℃
Above the + 101℃
± 0.5 ℃
Temperature distribution
Below the + 100℃
± 0. 7 ℃
Above the + 101℃
± 1.0 ℃
The temperature drops the time
＋125 ～－55 ℃
Within 36 minutes (10℃ / minute mean temperature change)
Temperature rise time
－55 ～＋125 ℃
Within 36 minutes (10℃ / minute mean temperature change)
The internal volume of the uterus was tested
800Ｌ
Test room inch method (width, depth and height)
1000mm × 800mm × 1000mm
Product inch method (width, depth and height)
1470mm × 2240mm × 2000mm
Make the material
External outfit
Test room control panel
machine room
Cold interductile steel plate is dark gray
Inside
Stainless steel plate (SUS304,2B polished)
Broken heat material
Test room
Hard synthetic resin
glass wool
door
Hard synthetic resin foam cotton, glass cotton
Project
Type
Series
ＥＸＴ
Cooling dehumidifying device
Cooling-down method
Mechanical section shrinkage and freezing mode and binary freezing mode
Cooling medium
Single segment side
R404A
Binary high temperature / low temperature side
R404A ／ R23
Cooling and dehumidifier
Multi-channel mixed heat sink type
The condenser
(water-cooled)
Calorifier
Form
Nickel-chromium heat-resistant alloy heater
Blower
Form
Stir fan
Controllerl
The temperature is set
-72.0 ～ +152.0 ℃
Time setting Fanny
0 ～ 999 Time 59 minutes (programmed type)0 ～ 20000 Time 59 minutes (value)
Set decomposition energy
Temperature 0.1 ℃ ，Time of 1 minute
Indicate accuracy
Temperature ± 0.8℃ (typ.), time ± 100 PPM
Vacation type
Value or program
Stage number
20-stage / 1 program
The number of procedures
The maximum number of incoming force (RAM) programs is 32 programs
The maximum number of internal ROM programs is 13 programs
Round-trip number
Maximum of 98 or unlimited
Number of round-trip repeats
Maximum 3 time
Displace the end
Pt 100Ω （ at 0 ℃ ），grade （ JIS C 1604-1997 ）
Control action
When splitting the PID action
Endovirus function
Early delivery function, standby function, setting value maintenance function, power outage protection function,
Power action selection function, maintenance function, transportation round-trip function,
Time delivery function, time signal output function, overrising and overcooling prevention function,
Abnormal representation function, external alarm output function, setting paradigm representation function,
Transport type selection function, the calculation time represents the function, the slot lamp lamp function
Project
Type
Series
ＥＸＴ
Control panel
Equipment machine
LCD operating panel (type contact panel),
Represents lamp (power, transport, abnormal), test power supply terminal, external alarm terminal,
Time signal output terminal, power cord connector
Protective device
Refrigerating cycle
Overload protection device, high blocking device
Calorifier
Temperature over-rise protection device, temperature fuse
Blower
Overload protection device
Control panel
Leakage breaker for power supply, fuse (heater,),
Fuse (for operating loop), temperature rise protection device (for testing),
Temperature rise overcooling prevention device (test material, in microcomputer)
Pay belongs to the product
Test material shed shed by * 8
Stainless steel shed (2), shed receiving (4)
Fuse
Operating loop Protection Fuses (2)
Operating specification
（1 ）
Else
Bolus (Cable hole: 1)
Equipment products
Adventitia
Hard borosilicate glass270mm× 190mm
１
Cable hole
Bore size 50mm
１
The trough inside the lamp
AC100V 15W White hot ball
１
Wheel
6
Horizontal adjustment
6
Electrovirus characteristics
Source ＊ 5.1
AC Three-phase 380V 50Hz
Maximum load current
60 A
Capacity of the leakage breaker for the power supply
80A
Sensory current 30mA
Power distribution thickness
60mm２
Rubber insulation hose
Coarseness of grounding wire
14mm２
Cooling water ＊ 5.3
Water yield
5000 L /h （When the cooling water inlet temperature is 32℃）
Water pressure
0.1 ～ 0.5MPa
Side pipe diameter of the device
PT1 1/4
Tubing
drain-pipe ＊ 5.4
PT1/2
Product weight
700kg
Inverter- Reliability Test
Inverter- reliability test also known as voltage converter, its function is to convert DC low voltage into AC high voltage, some electronic equipment must be driven by AC power, but we provide is DC power, at this time you must use the Inverter, direct current into alternating current to drive the electronic parts. Inverter- reliability test also known as voltage converter, its function is to convert DC low voltage into AC high voltage, some electronic equipment must be driven by AC power, but we provide is DC power, at this time you must use the Inverter, direct current into alternating current to drive the electronic parts.
Relevant test conditions:
Item
temperature
time
other
Initial test at normal temperature
25 ℃
TIME≥2 hours
-
Low temperature initial test
0 ℃ or -5 °C
TIME≥2 hours
-
High temperature initial test
60℃
TIME≥2 hours
-
High temperature and high humidity test
40℃/95%RH
240 hours
-
High temperature storage test
70℃
TIME≥96 hours or 240 hours
-
Low temperature storage test -1
-20°C
TIME≥96 hours
-
Low temperature storage test -2
-40℃
240 hours
-
High temperature and high humidity storage test
40℃/90%RH
TIME≥96 hours
-
Temperature cycle test
-20℃~ 70℃
5 cycle
Room temperature ↓-20 ℃(4 hours)↓ Room temperature (90%RH.4 hours)↓70°C(4 hours)↓ Room temperature (4 hours)
High temperature load test
55 ℃
equivalent load, 1,000 hours
-
Life test
40°C
MTBF≥40000 hours
-
on/off test (power cycle)
-
-
1min:on, 1min:off, 5,000 cycles using equivalent load
Vibration test
-
-
Acceleration 3q, frequency 10~55HZ, X, Y, Z three directions 10 minutes each, a total of 30 minutes
Impact test
-
-
Acceleration of 80g, 10 ms each time, Three times in X, Y, Z directions
Note 1: The tested module should be placed at normal (15~35° C,45~65%RH) for one hour before testing

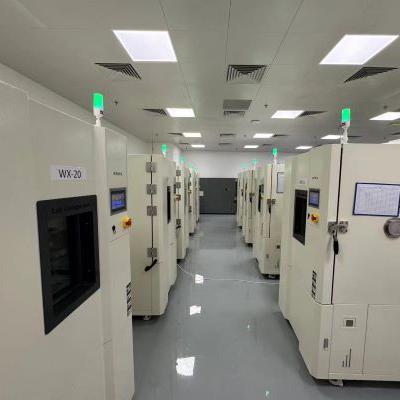

Applicable equipment:
1. High and low temperature test chamber
2. High temperature and high humidity test chamber
3. Rapid temperature cycle test chamber
EC-85MHPM-W, High load corresponding constant temperature and humidity tank (800L)
Project
Type
Series
ＭＨＰＭ－Ｗ
Function
Temperature and humidity mode
The way of wet ball
Temperature range
-40 ～ + 100 ℃
Humidity range
20 ～ 98%RH
（According to the anaphase 3 items）
Changes in temperature and humidity
± 0.3 ℃ ／ ±2.5%RH
Temperature and humidity distribution
± 0.5 ℃ ／ ±5.0%RH
The temperature drops the time
+20 ～ -40 ℃
Within 75 minutes
Temperature rise time
-40 ～ + 100 ℃
Within 50 minutes
The internal volume of the uterus was tested
800 Ｌ
Test room inch method (width, depth and height)
1000mm × 800mm × 1000mm
Product inch method (width, depth and height)
1400mm × 1190mm × 1795mm
Make the material
External outfit
Test room control panel
machine room
Cold steel plate, cold steel plate beige
(Color table 2.5Y8 / 2)
Inside
Stainless steel plate (SUS304,2B polished)
Broken heat material
Test room
Hard synthetic resin
―
Door
Hard synthetic resin foam cotton, glass cotton
Project
Type
Series
ＭＨＰＭ－Ｗ
Cooling removal, wet device
Cooling-down method
Mechanical section shrinkage mode
Cooling medium
Ｒ４０４Ａ
The oneself can shrink machine
Output (number of staff)
1.5kW （１）
Cooling and dehumidifier
Multi-channel mixed heat sink type
The condenser
Multi-channel mixed radiator sink (air cooling）
Calorifier
Form
Nickel-chromium heat-resistant alloy heater
Volume
3.5kW
Humidifier
Form
Steam generation
Volume
1.8Kw×2
Blower
Form
Multi-channel mixed radiator sink (air cooling）
Motor capacity
40W
Feed water unit
The water supply cylinder Water supply method
Water quality
Pure water ＊ Automatic water supply
（"Please refer to the automatic water supply."）
Volume
Gravity type
Moisturizing disk
Gravity type
Controller
Temperature setting range
-42.0 ～ + 102.0 ℃
Humidity setting range
0 ～ 98%RH （Dry Bulb Temperature 10 ～ 85 ℃ ）
Time set range
0 ～ 999Time of 59 min（Program setting type） 0 ～ 20000 Time of 59 min（The value type）
Set decomposition energy
Temperature 0.1℃, humidity 1% RH for 1 min
Indicate accuracy
Temperature ± 0.8℃ (tp.), humidity ± 1% RH (tp.), time ± 100 PPM
Vacation type
Value or program
Stage number
20-stage / 1 program
The number of procedures
The maximum number of incoming force (RAM) programs is 32 programs
The maximum number of internal ROM programs is 13 programs
Round-trip number
98 times maximum or unlimited
Number of round-trip repeats
Maximum 3 heavy
Displace the end
Pt 100Ω （ at 0 ℃ ）， grade Ｂ（ JIS C 1604-1997 ）
Control action
When splitting the PID action
Internal function
Early delivery function, standby function, setting value maintenance function, power outage protection function,
Power action selection function, maintenance function, transportation round-trip function,
Time delivery function, time signal output function, overrising and overcooling prevention function,
Abnormal representation function, external alarm output function, setting paradigm representation function,
Transport type selection function, the calculation time represents the function, the slot lamp lamp function
Project
Type
Series
ＭＨＰＭ－Ｗ
Control panel
Equipment machine
LCD operating panel (type contact panel),
Represents lamp (power, transport, abnormal), test power supply terminal, external alarm terminal,
Time signal output terminal, power cord connector
Protective device
Refrigerating cycle
Overload protection device, high blocking device
Calorifier
Temperature over-rise protection device, temperature fuse
Humidifier
Air burning prevention device, humidifying disc water level regulator
Blower
Overload protection device
Control panel
Leakage breaker for power supply, fuse (for heater, humidifier),
Fuse (for operating loop), temperature rise protection device (for testing),
Temperature rise overcooling prevention device (test material, in microcomputer)
Offproducts (sets)
House receiver (4), house board (2), wet ball wick (15), operation manual (1)
Equipment products
Adventitia
Hard borosilicate glass 800mm× 800mm
2
Cable hole
Bore size 50mm
１
The trough inside the lamp
AC100V 15W White hot ball
２
Wheel
４
Horizontal adjustment
４
Electrovirus characteristics
Source
AC three-phase 380V 50Hz
Maximum load current
25A
Capacity of the leakage breaker for the power supply
50A
Sensory current 30mA
Power distribution thickness
14mm2
Rubber insulation hose
Coarseness of grounding wire
5.5mm2
Tubing
Drain-pipe
PT1/2
Product quality
550kg
Comprehensive Test Chamber
Equipment features:
Can be connected to a vertical vibration table or to both vertical and horizontal vibration tables simultaneously;
You can choose functions such as device lifting and device translation;
High strength and high reliability structural design - ensuring the high reliability of the equipment;
The studio material is SUS304 stainless steel - with strong corrosion resistance, cold and hot fatigue function, and long service life;
High density polyurethane foam insulation material - ensuring minimal heat loss;
Surface spraying treatment - ensuring the long-lasting anti-corrosion function and appearance life of the equipment;
High strength heat-resistant silicone rubber sealing strip - ensures high sealing performance of equipment doors;
Multiple optional functions (such as test holes, recorders, water purification systems, etc.) ensure that users have multiple functions and testing needs;
Large area electric anti frost observation window and concealed lighting - can provide good observation effect;
Environmentally friendly refrigerants - ensure that equipment better meets your environmental protection requirements;
Customizable size/usage indicators/various optional functions according to user requirements
Temperature control
Can achieve temperature constant control and program control;
The full process data recorder (optional function) can achieve full process recording and traceability of the experimental process;
Each motor is equipped with overcurrent (overheating) protection/heater short-circuit protection to ensure high reliability of air flow and heating during equipment operation;
USB interface and Ethernet communication function enable the device's communication and software expansion functions to meet various customer needs;
Adopting the internationally popular cooling control mode, the compressor cooling power can be automatically adjusted from 0% to 100%, reducing energy consumption by 30% compared to the traditional heating balance temperature control mode;
The key components of refrigeration and electrical control are all made of internationally renowned brand products, which improves and ensures the overall quality of the equipment;
The equipment meets the following standards
GB/T 10592-2008 Technical Conditions for High and Low Temperature Test Chambers
GB/T 10586-2006 Technical Conditions for Damp Heat Test Chamber
GB/T 2423.1-2008 Environmental Testing for Electric and Electronic Products - Part 2: Test Methods - Test A: Low Temperature
GB/T 2423.2-2008 Environmental Testing for Electric and Electronic Products - Part 2: Test Methods - Test B: High Temperature
GB/T 2423.3-2006 Environmental Testing for Electric and Electronic Products - Part 2: Test Methods - Test Cab: Constant Damp Heat Test
GB/T 2423.4-2008 Environmental Testing for Electric and Electronic Products - Part 2: Test Methods - Test Db: Alternating Damp Heat (12h+12h Cycle)
GB/T 2423.22-2008 Environmental testing for electrical and electronic products - Part 2: Test methods - Test N: Temperature changes
GB/T 5170.1-2008 General Principles for Inspection Methods of Environmental Testing Equipment for Electrical and Electronic Products
GJB 150.3A-2009 Military Equipment Laboratory Environmental Test Methods Part 3: High Temperature Test
GJB 150.4A-2009 Military Equipment Laboratory Environmental Test Methods Part 4: Low Temperature Test
GJB 150.9A-2009 Military Equipment Laboratory Environmental Test Methods Part 9: Damp Heat Test
Choosing different vibration table bodies can meet different vibration standard test methods
(e.g. GB/T 2423.35-2005, GB/T 2423.36-2005, etc.).
Three comprehensive test chambers; Temperature, humidity, and vibration three comprehensive test chamber; Technical specifications for temperature/humidity/vibration/three comprehensive testing equipment.
model
THV-500
THV-1000
THV-1500
inside dimension
D
700
900
1250
W
800
1150
1150
H
900
1100
1100
Size of connecting the vibration table（mm）
Horizontal stand ≤400*400 Vertical platform≤Φ400
Horizontal stand ≤600*600 Vertical platform≤Φ600 Single vertical platform≤Φ630mm
Horizontal stand ≤900*900 Vertical platform≤Φ900
Motor cover height（mm）
235
Source
AC380V.50HZ Three-phase four-wire system + grounding wire
Standard layout
One product manual, one test report, one quality certificate and quality guarantee, 2 panels, 2 strips, one blind board, one set of interface board, one set of silicone rubber soft plug
Structure
Hull
Surspray of cold rolled steel plate (ivory white)
Inner tank
Stainless steel sheet and plate
Heat insulating material
Polyurethane foaming
Refrigeration
Refrigeration method
Refrigeration mode of stacked compressor (water cooled)
Refrigerator
German valley wheel semi-closed compressor
Observation window （mm）
400*500
Instrument connection （mm）
One on the left and right sidesΦ100
Controller
Color LCD display touch screen
Recording device
Temperature and humidity recorder (optional)
Communication interface
The RS485 interface. The RS232 interface. Upper position computer operation software (optional)
High, low temperature, and low pressure test chamber
The low-pressure test chamber is mainly used in the fields of aviation, aerospace, information, electronics, etc., to determine the environmental adaptability and reliability tests of instruments, electrical products, materials, components, and equipment under single or simultaneous effects of low-pressure, high-temperature, and low-temperature, and to measure the electrical performance parameters of the test piece when energized.
Product principle and function
The high, low temperature, and low pressure test chamber is mainly used in aviation, aerospace, electronics, national defense, scientific research, and other industrial sectors to determine the storage and transportation reliability test of electrical and electronic products (including components, materials, and instruments) under the single or simultaneous action of high, low temperature, and low pressure. It can also be used to test the electrical performance parameters of the specimens when they are energized.
Editing of structural device for high, low temperature and low pressure test chamber
1. The outer shell is made of cold-rolled steel plate sprayed with plastic or stainless steel, and the inner shell is made of stainless steel
2. Thermal insulation layer: ultra-fine glass wool and hard polyurethane
3. Cooling method: Compression cooling method (air-cooled condenser)
4. Refrigerator: Original French Taikang fully enclosed compressor unit
5. Heater: grade stainless steel fin heater
6. Convection system: Multi blade fan, air conditioning dedicated motor
7. Temperature controller: Digital intelligent temperature controller, using PT-l00 sensor for temperature control.
8. The arrangement of electrical components in the control cabinet is reasonable, the wiring is neat, and labeled sheathed wiring terminals are used.
9. Castor solenoid valve, Danfoss expansion valve
10. High quality vacuum pump
Editing of vacuum system for high, low temperature and low pressure test chamber
1. Composition of vacuum system: The vacuum system is a component that obtains and measures the vacuum degree, consisting of a vacuum measurement system and a vacuum acquisition unit
2. Vacuum measurement: Vacuum measurement is carried out using a pressure sensor. This vacuum gauge uses pressure strain to achieve vacuum measurement, and the measurement data is a linear electrical signal that can be directly input into the device controller for display and control
environment condition
Temperature: 5 ℃~+28 ℃ (average temperature within 24 hours ≤ 28 ℃)
Relative humidity: ≤ 85% RH
Air pressure: 86kPa~106kPa
Power supply conditions: three-phase four wire+protective ground wire, voltage range: AC (380 ± 38) V
Allowable frequency fluctuation range: (50 ± 0.5) Hz
The grounding resistance of the protective grounding wire is less than 4 Ω
Technical specifications of high, low temperature and low pressure test chamber
1. Studio size:
FA-4 4 cu ft (113L)
-73°C to +177°C
N/A
FA-10 10 cu ft (283L)
-73°C to +177°C
20% to 95%RH
FA-16 16 cu ft (453L)
-73°C to +177°C
20% to 95%RH
FA-35 35 cu ft (991L)
-73°C to +177°C
20% to 95%RH
FA-64 64 cu ft (1812L)
-73°C to +177°C
20% to 95%RH
FA-96 96 cu ft (2718L)
-73°C to +177°C
20% to 95%RH
2. Temperature range: -40~150 ℃
3. Temperature deviation: ± 2 ℃
4. Temperature fluctuation: ± 0.5 ℃
5. Temperature uniformity: ≤ 2 ℃
6. Air pressure level: 4-84kpa
7. Heating rate 1.0-3.0 ℃/min
8. Cooling rate 0.7-1.0 ℃/min
9. Control system controller Siemens PLC controller, Siemens color LCD display touch screen
10. Accuracy Range Setting Accuracy: Temperature ± 0.1 ℃, Indication Accuracy: Temperature ± 0.1 ℃, Resolution: ± 0.1 ℃
11. Temperature sensor platinum resistance PT100 Ω/MV
12. Pressure Sensor Electronic Pressure Transmitter
13. Fully independent heating system, nickel chromium alloy electric heating heater
14. Refrigeration system: original French "Taikang" fully enclosed air-cooled single-stage/cascade compressor refrigeration method
15. Temperature resistant and low-noise air conditioning motor for circulation system. Multi blade centrifugal fan
Safety protection device
1. Overload and short circuit protection
2. Overtemperature protection
3. High and low pressure protection of refrigeration unit
4. Alarm sound prompt
Description of Controller Q8-902 for High Low Temperature and Low Pressure Test Chamber
Operating interface
Touchscreen Chinese interface, with digital display, real-time curve, operation selection, timing setting, program setting, alarm, parameter setting and other interfaces
Curve recording function
Can save the set values, sampling values, and sampling time of the device; The maximum storage time is 30 days. Simultaneously storing 5 real-time curves with different capacities and resolutions for 30 days, 7 days, 24 hours, 8 hours, and 1 hour, and displaying real-time data to meet different user needs
Printing function
Connectable micro printer (optional)
Program capacity
Program: Up to 30 curves
Program segment: Each program can have up to 50 segments (total program segment 1200 segments)
Program segment grouping: Each curve can be further grouped into segments according to any continuous segment, up to a maximum of 10 segments can be combined, and segments are allowed to overlap
Internal loop: The program segments within the program are looped in sections as the minimum loop unit, with a maximum of 99 loops per section
Program loop: can loop up to 99 times
Program connection: After the program runs, it can connect to the selected next program
Related standards
In addition to the content specified in this technical requirement, the equipment meets the requirements of GB/T10591 and GB/T10592.
Data and Services
1. Provide technical information such as electrical schematics, consumable parts lists, operation and maintenance manuals for the equipment, as well as technical information for the main purchased supporting parts.
2. Train 1-2 equipment operation and maintenance personnel to fully master the operation skills and general repair and maintenance skills of the equipment.
Within one year from the date of acceptance of the equipment, free after-sales service shall be provided to the buyer, and after one year, accessories of the equipment shall be provided to the buyer at cost price.
ER-135MHP-W, Step in constant temperature and humidity bath, constant temperature and humidity chamber style book (water-cooled)
Project
Type
Form
ER - 135MHP-W
Nature
ability
*1
*2
Temperature and humidity mode
The way of wet ball
Temperature and humidity model * 3
-40~+ 80 ℃ /10~95%RH
Temperature and humidity electrode amplitude
± 0.3 ℃ / ± 2.5%RH
Temperature and humidity distribution
± 0.75 ℃ / ± 5.0%RH
The temperature drops the time
+20~ -40 ℃ Within 170 minutes
Temperature rise time
+20~+ 80 ℃ Within 50 minutes
Noise value
*6
Room outside
65dB
Indoor side
79B
Statutory freezing capacity ( 50 / 60Hz )
2.57/2.81
Product shape-inch method (width, depth and height)
Please refer to the configuration diagram
Warehouse board laboratory
Bed area
13 . 0 m2
The shape of inch method
＊７
Wide
3600mm
Deep
3600mm
High
2325mm
Have oneself
Intensification method
＊７
Wide
3450mm
Deep
3450mm
High
2100mm
External materials
Ivory painted steel plate
Inside the material
Stainless steel plate (SUS304)
Broken heat material
Hard synthetic resin
The weight resistance of the board
5.9 k N/ m2 {600 kgf / m2 }
Door (width and height)
830 mm × 1800 mm Single piece open
Measurement (width and height)
190 mm × 320 mm The door
Indoor light capacity (quantity)
60W( 2 individual )
Cable hole
φ 50 1 (500mm from bed surface height, 1 side)
Controller model and shape method
Wide, deep and high
EU - 6 5MH*2 unit 1200 mm × 710 mm × 1940 mm
External outfit
Indoor
stainless steel sheet and plate (SUS304)
Outdoor
L coating color on steel plate; ivory color: color table mark 2.5Y8/2 )
Operate
Steel plate coating color; ivory color: color table mark2.5Y8/2
The oneself can shrink machine
Cooling medium
R404A
Output of freezer 1 (staff)
2.2kW(1) × 2
Cooling and dehumidifier
Multi-channel mixed heat sink type
Condenser (staff number)
Transverse fin type (2) 2
Calorifier
Form
Nickel-chromium heat-resistant alloy heater
Volume
5 . 7kW(3 φ 200V) × 2
Humidifier
Form
SUS 316L Make a surface steam type humidifier
Volume
5 . 4kW(3 φ 200V) × 2
Air supply device
Form (quantity)
Single air supply multi-blade air fan (1)
Survival outside the machine
0 Pa{ 0 mmAq}
Blowing rate
25 (m3 / min )
Back to the uterus
1100( r / min )
Motor form
VTFO-K
Motor output (pole number)
0.75kW(6) × 2
Moisturizing water supply
installation
The water supply cylinder
Water quality * 8
Electrical conductivity is below 10 μ S / cm
Volume
4L × 2
Feedwater
way
Moisturizing disk
gravity type
Wet ball Wick disc
Electromagnetic valve type
Controller
The temperature is set
-42.0 ~+ 82.0 ℃
Humidity is set
0~98% RH ( Dry Bulb Temperature 10 ℃ ~ 80 ℃ )
Time setting Fanny
0 ~ 999 Time 59 points (programmed type)0 ~ 20000 Time 59 points (value)
Set decomposition energy
Temperature 0.1 ℃ , humidity 1% RH , time 1 minute
Indicate accuracy
Temperature ± 0.8 ℃ ( typ. ), humidity ± 1% RH ( typ. ), time ± 100 PPM
Vacation type
Value or program
Stage number
20 stage / 1 form
The number of procedures
Number of incoming force (RAM) programs, maximum 32 programs / internal ROM programs, maximum 13 programs
Round-trip number
Maximum of 98 or unlimited
Number of round-trip repeats
Maximum 3 time
Displace the end
JP t 100Ω (a t 0 ℃ ), grade B(JIS C1604-1997 )
control action
When splitting the PID action
Endovirus function
Early delivery function, standby function, setting value maintenance function, power outage protection function,
Power action selection function, maintenance function, transportation round-trip function,
Time delivery function, time signal output function, overrising and overcooling prevention function,
Abnormal representation function, external alarm output function, setting paradigm representation function,
Transport type selection function, the calculation time represents the function, the slot lamp lamp function
Project
Type
Form
ER - 55MHP-W
Temperature control machine
Control panel
Equipment machine
Color LCD operating panel (force contact mode),
Represents the lamp (power supply, transport, abnormal), test material power supply system royal terminal,
External alarm terminal, time signal output terminal, power cord connector,
Protective device
Warehouse plate test uterine cavity
Test material with
Temperature rise overcooling prevention function (microcomputer: automatic setting)
Temperature rise ter (set: Set above 60℃)
Refrigerating cycle
Overload protection device, high blocking device
Calorifier
Temperature over-rise protection device, temperature fuse
Humidifier
Air burning prevention device (2 weight), wet plate water level regulator
Blower
Overload protection device
Control panel
Leakage breaker for power supply, fuse (for heater, humidifier),
Fuse (for operating loop), fan reverse prevention relay
In addition to control
Frost system
Defrosting method * 5
Stop cycling defrosting (freezer transport stop),
Heat up defrosting
Cold control
But the system
water
Concondensation control mode (quantity)
Water-making valve for cooling water (2) 2
Repeat
measure
Therstat (operated)
300kg × 2
Electricity
Endyceps sinensis
particular
nature
Source
Communication three phases 380V 50Hz
Maximum load current
45A × 2
The power supply uses a leakage breaker
60A ( Sensory current 30mA) × 2
Power distribution
Rubber insulation hose 22m m2 × 2
Coarseness of grounding wire
5.5m m2 × 2
cold
step back
water
*9
Water yield；the yield of water
40L / min ( inlet water temperature 32 ℃ ) × 2
Water pressure
0.1~0.5M Pa{ 1.0~5.0 kgf / cm2 }
water temperature
18~ 32 ℃
Pipe-inch method
Inlet / exit
PT 1 parent seat / PT 1 parent seat
Humidifying water supply pipe distribution inch method * 8
PT 1 / 2 parent seat
arrange
water
Pipe-inch method
drain-pipe
PT 1 / 2 parent seat
Its
Product products (staff)
reduce pressure(1) * 8
Wet ball wick (15)
Take instructions (1)
Get A Quote
IPv6 network supported
