High and low temperature and low pressure test chamber is mainly used for aviation, aerospace, electronics, national defense, scientific research and other industrial departments to determine electrical electronic technology products (including components, materials and instruments). Under the single or simultaneous action of high and low temperature and low pressure, the storage and transportation reliability test can be carried out, and the electrical performance parameters of the specimen can be tested at the same time.
Item No :
FA-16Order(MOQ) :
1Product Origin :
DongguanColor :
WhiteAltitude Temperature Test Chamber
|
Power supply |
380V/15.6KW |
|
Temperature range |
-40~+120℃ |
|
Temperature fluctuation |
≤±0.5℃ |
|
Temperature deviation |
≤±2.0℃ |
|
Temperature uniformity |
≤2℃ |
|
Temperature rising rate |
+25℃~120℃,2℃/min,(average temperature) 2℃/min,Under no load |
|
Cooling rating |
+25℃~-40℃(average temperature)1℃/min,under no load |
|
Pressure range |
Normal pressure~1.0KPa |
|
Pressure recovery rate |
Normal pressure~1KPa≤45min |
|
Internal dimension |
W600 × H850 × D 800 mm |
|
External dimension |
W1210 × H2180 × D1750 mm |
|
Suitable temperature for using |
5~30℃ |
|
Controller model |
C100 |
|
Compressor model |
ZF09KQE*2 |
|
Refrigerant |
R-404A/R23 |
Thermal Cycling Test Chamber
The appearance and specification

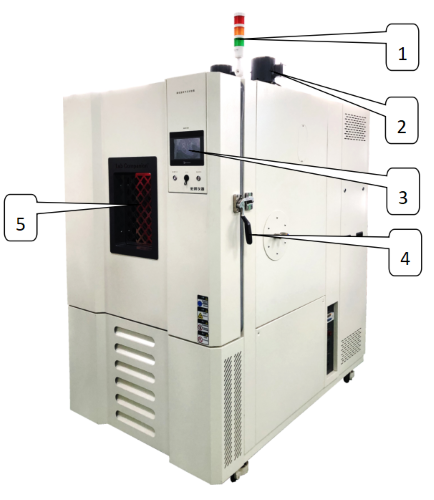

The front side of the machine:
|
Number |
Name |
Illustrate |
|
1 |
Tricolor light |
Green light means running, yellow standby, red fault |
|
2 |
Circulating machine |
Drive type wind wheel for wind circulation |
|
3 |
Controller panel |
The intelligent operating panel |
|
4 |
Door lock |
Pull on the handle to open the door |
|
5 |
Glass Window |
To observe the workings of the inner studio |

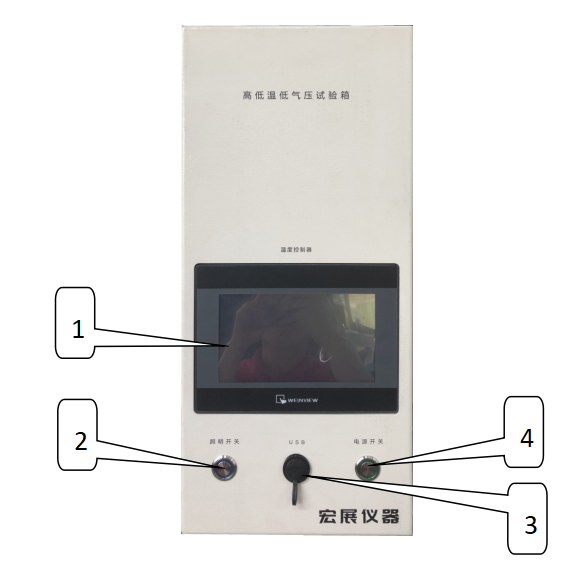

Controller panel:
|
Number |
Name |
Illustration |
|
1 |
Controller |
Touch screen programmable controller |
|
2 |
Lighting switch |
Installed for observation window |
|
3 |
USB interface |
Used to copy curves or document-related data |
|
4 |
Power switch |
Used for controller panel |

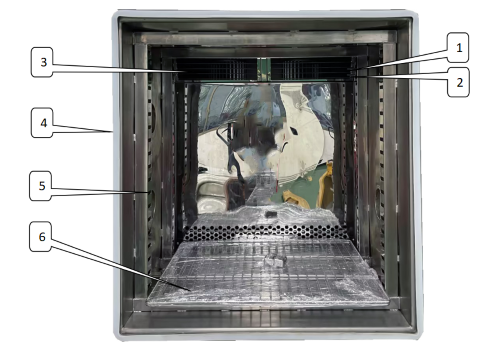

Studio area:
| Number |
Name |
Specification |
|
1 |
Thermal resistance sensor |
Used for panel overtemperature sensing the temperature of the inner box |
|
2 |
Thermal resistance sensor |
Used for the controller to sense the temperature of the inner box |
|
3 |
The air outlet |
Test area circulates air outlet |
|
4 |
Sealant |
Heat preservation and air leakage prevention |
|
5 |
Sample rack track. |
Used to secure the sample holder |
|
6 |
The sample rack |
Used to place test products |

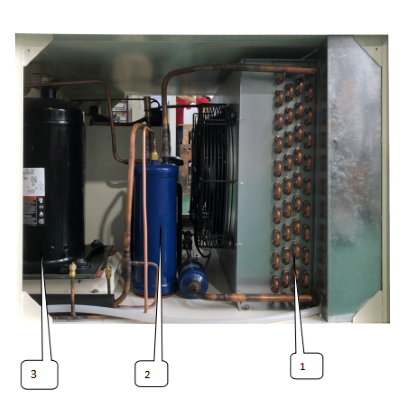

The cooling machine room:
|
Number |
Name |
Illustration |
|
1 |
Condenser |
Cooling refrigerant |
|
2 |
Oil separator |
Separates refrigerant and chilled oil |
|
3 |
Compressor |
Compression cooling |
Climatic Test Chamber
High and low temperature and low pressure test chamber is mainly used for aviation, aerospace, electronics, national defense, scientific research and other industrial departments to determine electrical electronic technology products (including components, materials and instruments). Under the single or simultaneous action of high and low temperature and low pressure, the storage and transportation reliability test can be carried out, and the electrical performance parameters of the specimen can be tested at the same time.
